在遇到 monkey 执行完后概率性进程不退出（进程名 com.android.commands.monkey 变为 commands.monkey），就想要整体重新设计下。

加上最近提出要交付手工测试组执行，面临对于不懂 monekey 测试的人员也需要按计划完成专项测试。

我自己又给测试方式自提了新需求，于是整体思考重构了 monkey 压力测试及优化了 MCM 监控方案。

一、自提需求

1、按设定执行时间方式进行 monkey 测试

目的：避免无法按事件数预知准确时间，设定 monkey 压力测试 1 小时就是执行 1 小时测试。
方式：按 10000 事件数执行 monkey 测试，到设定时长则 kill monkey 进程，未达到则重复执行。

2、固定形式的 monkey 语句测试需按 case 形式维护

目的：由于交付的执行人员不一定懂 monkey，固定的执行写成 case 便于执行人员调用，同时也是简化主控制逻辑的维护方式。
方式：维护 case.sh 作为 moneky 执行方式的维护脚本
沿用：这里我沿用了之前想到要看下 mongkey 测试结束后等待一会（如 10 分钟），看下内存是否会继续上涨，就在设计时加入了测试结束后等待 10 分钟再停止应用；停止应用是为了避免之前测试后的状态影响下一个包的测试，就释放掉了进程。

3、将通用函数单独文件维护，将 shell 脚本的函数部分和控制部分非开维护。

目的：为了方便通用函数的复用，同时也是为了建立自己的一种写脚本模式。
方式：function.sh 维护全局变量和自定义函数，source 命令加载

4、组件形式的 app 需要侧重组件的界面进行压力测试，需要将显示的 activity 圈定在一定范围内。

目的：对于无法单包执行的组件 app，通过和依赖包一起测试完成压力测试需求。
方式：两个包进行测试，其中一个是调用组件的 app，另一个是独立的组件 app；monekey 执行后，使用一个子进程轮询判定 SurfaceFlinger 是否包含组件包名，如果不包含则使用长按键事件或 am start 组件 activity 的形式使组件画面显示；monekey 事件类型则只配操作不配置 appswitch。

5、把 MCM 监控方案优化维护，维护一个不需要 root 权限的版本。

目的：想增加自己设计的 MCM 监控方案的适用性
方式：使用 push busybox 到/data/local/tmp，调用此 busybox 命令进行脚本监控。

问题的解决

1、moneky 压力测试方案 V2.0

（1）全局变量及函数维护——function.sh

#!/system/bin/sh

########## Global Variable ##########
if [ -f /data/local/tmp/busybox ];then
    export bb="/data/local/tmp/busybox"
else
    echo "No /data/local/tmp/busybox"
    exit
fi
if [ -f /data/local/tmp/stop ];then
    $bb rm /data/local/tmp/stop
fi
#Test Result Folder
export testresult="/data/local/tmp/monkey"
if [ -d $testresult ];then
    $bb rm -r $testresult
fi
mkdir -p $testresult/log
#android version
export android=`getprop ro.build.version.release|$bb awk -F. '{print $1}'`
#root
export root=`id|$bb grep -c root`

########## Function ##########

#Add comments to comments.csv
comment(){
if [ ! -f $testresult/comments.csv ];then
    echo "Date,Tag,Comments,Info" >$testresult/comments.csv
fi
echo "`date +%m-%d" "%H":"%M":"%S`,$1,$2,$3" >>$testresult/comments.csv
}

#Create Log
c_log(){
if [ -f $testresult/error.pid ];then
    local E_pid=`$bb awk 'NR==1{print $NF}' $testresult/error.pid`
    if [ -d /proc/$E_pid ];then
        if [ $1 -eq 0 ];then
            comment "c_log" "error.pid is running, exit." "$E_pid"
            exit
        elif [ $1 -eq 1 ];then
            comment "c_log" "error.pid is running, kill." "$E_pid"
            kill -9 $E_pid 2>/dev/null
        fi
    else
        comment "c_log" "exist error.pid, not running" "$E_pid"
    fi
    $bb rm $testresult/error.pid
fi
if [ $1 -eq 0 ];then
    logcat -c
    if [ `cat /sys/devices/virtual/thermal/thermal_zone*/type|grep -c mtk` -eq 0 ];then
        logcat -v time -s AndroidRuntime:E ActivityManager:E DEBUG:F >$testresult/error.log &
    else
        logcat -v time -s AndroidRuntime:E ANRManager:E AEE/DEBUG:F >$testresult/error.log &
    fi
    local tmp=`$bb ps`
    echo "$tmp"|$bb grep "logcat -v time -s"|$bb awk 'NR==1{print $1}' >$testresult/error.pid
    comment "c_log" "Start error.pid." "`$bb awk 'NR==1{print $NF}' $testresult/error.pid`"
fi
}

#wait time between monkey test case
wait_time(){
local chek_begin=`$bb awk -F. 'NR==1{print $1}' /proc/uptime`
while true;do
    if [ $((`$bb awk -F. 'NR==1{print $1}' /proc/uptime`-chek_begin)) -ge $1 ];then
        break
    elif [ -f $testresult/monkey_error.txt ];then
        break
    else
        $bb sleep 5
    fi
done
}

########## monkey function ##########

#longpress to resume app.
#$1-keycode; $2-package name; $3-running time
longpress(){
local chek_begin=`$bb awk -F. 'NR==1{print $1}' /proc/uptime`
while true;do
    if [ $android -eq 6 ];then
        local tmp=`dumpsys SurfaceFlinger|$bb grep "|......|"`
    else
        local tmp=`dumpsys SurfaceFlinger|$bb grep "|....|"`
    fi
    if [ `echo "$tmp"|$bb grep -c "$2"` -eq 0 ];then
        input keyevent --longpress $1
    fi
    if [ $((`$bb awk -F. 'NR==1{print $1}' /proc/uptime`-chek_begin)) -ge $3 ];then
        break
    else
        $bb sleep 1
    fi
done
}

#longpress keycode 3 and 4 one by one: $1-package of keycode 3; $2-package of keycode 4; $3-sleep time; $4-running time
longkey(){
local l_key=3
local chek_begin=`$bb awk -F. 'NR==1{print $1}' /proc/uptime`
local package=$1
while true;do
    if [ $android -eq 6 ];then
        local tmp=`dumpsys SurfaceFlinger|$bb grep "|......|"`
    else
        local tmp=`dumpsys SurfaceFlinger|$bb grep "|....|"`
    fi
    if [ `echo "$tmp"|$bb grep -c "$package"` -eq 0 ];then
        input keyevent --longpress $l_key
    fi
    if [ $((`$bb awk -F. 'NR==1{print $1}' /proc/uptime`-chek_begin)) -ge $4 ];then
        break
    else
        $bb sleep $3
    fi
    case $l_key in
        3)
            local l_key=4
            local package=$2
        ;;
        4)
            local l_key=3
            local package=$1
        ;;
    esac
done
}

#longam to resume app.
#2 args: $1-package name; $2-running time;
#3 args: $1-package name; $2-running time; $3-activity(more than 1 activity: spilt by | . run them one by one);
longam(){
case $# in
    2)
        local activity=`dumpsys activity $1|$bb grep ACTIVITY|$bb awk 'NR==1{print $2}'`
        local a_loops=1
    ;;
    3)
        local activity="$3"
        local a_loops=`echo "$3"|$bb awk -F"|" '{print NF}'`
    ;;
esac
if [ ! -z "$activity" ];then
    local chek_begin=`$bb awk -F. 'NR==1{print $1}' /proc/uptime`
    local i=1
    while true;do
        if [ $android -eq 6 ];then
            local tmp=`dumpsys SurfaceFlinger|$bb grep "|......|"`
        else
            local tmp=`dumpsys SurfaceFlinger|$bb grep "|....|"`
        fi
        if [ `echo "$tmp"|$bb grep -c "$1"` -eq 0 ];then
            if [ $a_loops -gt 1 ];then
                local activity="`echo "$3"|$bb awk -F"|" -v P=$i '{print $P}'`"
                if [ $i -lt $a_loops ];then
                    local i=$((i+1))
                else
                    local i=1
                fi
            fi
            local am_start=`am start $activity 2>&1`
            if [ `echo "$am_start"|$bb grep -c "Error"` -ne 0 ];then
                comment "longam" "am_error" "$am_start"
            fi
        fi
        if [ $((`$bb awk -F. 'NR==1{print $1}' /proc/uptime`-chek_begin)) -ge $2 ];then
            break
        else
            $bb sleep 1
        fi
    done
else
    comment "longam" "No activity" "$1"
    wait_time $2
fi
}

monkey_test(){
if [ -f $testresult/monkey_error.txt ];then
    $bb rm $testresult/monkey_error.txt
fi
case $# in
    3)
        sh /data/local/tmp/case.sh $1 $2 "$3" &
    ;;
    4)
        sh /data/local/tmp/case.sh $1 "$2" "$3" "$4" &
    ;;
    *)
        echo "Args are wrong!!!"
        exit
    ;;
esac
}

#if timeout, kill case.sh: $1-wait time
monkey_timeout(){
wait_time $(($1+600))
local chek_begin=`$bb awk -F. 'NR==1{print $1}' /proc/uptime`
while true;do
    local tmp=`$bb ps`
    if [ `echo "$tmp"|$bb grep -c case.sh` -ne 0 ];then
        if [ $((`$bb awk -F. 'NR==1{print $1}' /proc/uptime`-chek_begin)) -ge 60 ];then
            if [ -f $testresult/log.pid ];then
                local L_pid=`$bb awk 'NR==1{print $NF}' $testresult/log.pid`
                comment "monkey_timeout" "kill pid of log.pid." "$L_pid"
                kill -9 $L_pid 2>/dev/null
            fi
            if [ -f $testresult/kmsg.pid ];then
                local L_pid=`$bb awk 'NR==1{print $NF}' $testresult/kmsg.pid`
                comment "monkey_timeout" "kill pid of log.pid." "$L_pid"
                kill -9 $L_pid 2>/dev/null
            fi
            local pid=`echo "$tmp"|$bb grep "case.sh"|$bb awk '{print $1}'`
            if [ ! -z "$pid" ];then
                kill -9 `echo $pid`
            fi
            comment "monkey_timeout" "After waiting 60S, kill case.sh."
            break
        else
            comment "monkey_timeout" "case.sh not finish"
            $bb pkill com.android.commands.monkey
            $bb sleep 5
        fi
    else
        break
    fi
done
}

（2）monkey 执行维护 case——case.sh

#!/system/bin/sh

#args:
# type1 run case: $1-running time; $2-case id; $3-case arg
# type2 run monkey by "--pct":$1-running time; $2-(-p/-c); $3-(--pct); $4-the file name of monkey log.

if [ -f /data/local/tmp/busybox ];then
    bb="/data/local/tmp/busybox"
else
    echo "No /data/local/tmp/busybox"
    exit
fi

${testresult="/data/local/tmp/monkey"} 2>/dev/null
if [ ! -d $testresult/monkey_log ];then
    mkdir -p $testresult/monkey_log
fi
if [ ! -d $testresult/log ];then
    mkdir $testresult/log
fi
#android version
android=`getprop ro.build.version.release|$bb awk -F. '{print $1}'`
#root
root=`id|$bb grep -c root`

#Add comments to comments.csv
comment(){
if [ ! -f $testresult/comments.csv ];then
    echo "Date,Tag,Comments,Info" >$testresult/comments.csv
fi
echo "`date +%m-%d" "%H":"%M":"%S`,$1,$2,$3" >>$testresult/comments.csv
}

#lock or unlock screen.
#$1: 0--lock; 1--unlock
lock(){
${wm_size_x=`wm size|$bb awk -F" |x" '{print $(NF-1)}'`} 2>/dev/null
${wm_size_y=`wm size|$bb awk -F" |x" '{print $NF}'`} 2>/dev/null
while true;do
    if [ `cat /sys/class/leds/lcd-backlight/brightness` -eq 0 ];then
        if [ $1 -eq 0 ];then
            break
        else
            input keyevent 26&&$bb sleep 1&&input swipe $((v/2)) $((4*wm_size_y/5)) $((wm_size_x/2)) $((wm_size_y/5))
        fi
    else
        if [ $1 -eq 0 ];then
            input keyevent 26
        else
            if [ $android -eq 6 ];then
                local tmp=`dumpsys SurfaceFlinger|$bb grep "|......|"`
            else
                local tmp=`dumpsys SurfaceFlinger|$bb grep "|....|"`
            fi
            case `echo "$tmp"|$bb awk 'BEGIN{r="o"}{if($NF=="com.android.systemui.ImageWallpaper")r="l"}END{print NR-1 r}'` in
                "1o")
                    local state=0
                ;;
                "3l")
                    local state=1
                ;;
                *)
                    local state=2
                ;;
            esac
            if [ $state -eq 0 ];then
                input keyevent 26&&$bb sleep 1&&input swipe $((v/2)) $((4*wm_size_y/5)) $((wm_size_x/2)) $((wm_size_y/5))
            elif [ $state -eq 1 ];then
                input swipe $((wm_size_x/2)) $((4*wm_size_y/5)) $((wm_size_x/2)) $((wm_size_y/5))
            else
                break
            fi
        fi
    fi
    $bb sleep 1
done
}

#Create Log
C_log(){
if [ -f $testresult/log.pid ];then
    local L_pid=`$bb awk 'NR==1{print $NF}' $testresult/log.pid`
    if [ -d /proc/$L_pid ];then
        comment "C_log" "kill pid of log.pid." "$L_pid"
        kill -9 $L_pid 2>/dev/null
    else
        comment "C_log" "exist log.pid, not running" "$L_pid"
    fi
    if [ -f $testresult/kmsg.pid ];then
        local L_pid=`$bb awk 'NR==1{print $NF}' $testresult/kmsg.pid`
        if [ -d /proc/$L_pid ];then
            comment "C_log" "kill pid of kmsg.pid." "$L_pid"
            kill -9 $L_pid 2>/dev/null
        else
            comment "C_log" "exist kmsg.pid, not running" "$L_pid"
        fi
    fi
fi
if [ $root -eq 1 ];then
    cat /proc/kmsg >$testresult/log/$1.kmsg &
    echo $! >$testresult/kmsg.pid
fi
${logcat_type=`logcat --help 2>&1 |grep -c "\-T <count>"`} 2>/dev/null
if [ $logcat_type -eq 1 ];then
    logcat -v threadtime -b all -T 1 >$testresult/log/$1.log &
else
    logcat -c
    logcat -v threadtime >$testresult/log/$1.log &
fi
echo $! >$testresult/log.pid
}

save_log(){
if [ -f $testresult/log/$1.log ];then
    comment "save_log" "Start save" "$1"
    local time_name=`date +%Y%m%d%H%M%S`
    mkdir $testresult/log/$time_name
    $bb pstree -p >$testresult/log/$time_name/pstree.txt
    $bb top -b -n 1 >$testresult/log/$time_name/top.txt
    lock 1
    screencap -p $testresult/log/$time_name.png
    dmesg >$testresult/log/$time_name/dmesg.txt
    dumpsys dropbox --print >$testresult/log/$time_name/dropbox.txt
    cat /proc/meminfo >$testresult/log/$time_name/proc_meminfo.txt
    dumpsys meminfo >$testresult/log/$time_name/dumpsys_meminfo.txt
    if [ -f $testresult/log.pid ];then
        local L_pid=`$bb awk 'NR==1{print $NF}' $testresult/log.pid`
        if [ -d /proc/$L_pid ];then
            comment "save_log" "kill pid of log.pid." "$L_pid"
            kill -9 $L_pid 2>/dev/null
        else
            comment "save_log" "exist log.pid, not running" "$L_pid"
        fi
        if [ -f $testresult/kmsg.pid ];then
            local L_pid=`$bb awk 'NR==1{print $NF}' $testresult/kmsg.pid`
            if [ -d /proc/$L_pid ];then
                comment "save_log" "kill pid of kmsg.pid." "$L_pid"
                kill -9 $L_pid 2>/dev/null
            else
                comment "save_log" "exist kmsg.pid, not running" "$L_pid"
            fi
            $bb rm $testresult/kmsg.pid
        fi
        $bb rm $testresult/log.pid
    fi
    if [ $root -eq 1 ];then
        if [ ! -z "`ls /data/anr 2>/dev/null`" ];then
            $bb mv /data/anr/* $testresult/log/$time_name/
        fi
        if [ ! -z "`ls /data/tombstones 2>/dev/null`" ];then
            $bb mv /data/tombstones/* $testresult/log/$time_name
        fi
        if [ ! -z "`ls /data/system/dropbox/ 2>/dev/null`" ];then
            mkdir $testresult/log/$time_name/dropbox
            $bb mv /data/system/dropbox/* $testresult/log/$time_name/dropbox
        fi
        $bb tar -zcvf $testresult/log/$1_`date +%Y%m%d%H%M%S`.tar.gz -C $testresult/log $1.log $1.kmsg $time_name.png $time_name
        $bb rm $testresult/log/$1.kmsg
    else
        $bb tar -zcvf $testresult/log/$1_`date +%Y%m%d%H%M%S`.tar.gz -C $testresult/log $1.log $time_name.png $time_name
    fi
    $bb rm $testresult/log/$1.log $testresult/log/$time_name.png
    $bb rm -r $testresult/log/$time_name
    comment "save_log" "Finish save" "$1"
else
    comment "save_log" "Not Found" "$1"
fi
ls $testresult/log|grep log|$bb awk -F. '{print $1}' |while read T;do
    comment "save_log" "Found log" "$T"
    if [ $root -eq 1 ];then
        $bb tar -zcvf $testresult/log/$T.tar.gz -C $testresult/log $T.log $T.kmsg
        $bb rm $testresult/log/$T.kmsg
    else
        $bb tar -zcvf $testresult/log/$T.tar.gz -C $testresult/log $T.log
    fi
    $bb rm $testresult/log/$T.log
done
}

#wait time between monkey test case
wait_time(){
local log_n=`date +%Y%m%d%H%M%S`
C_log $log_n
local chek_begin=`$bb awk -F. 'NR==1{print $1}' /proc/uptime`
while true;do
    if [ $((`$bb awk -F. 'NR==1{print $1}' /proc/uptime`-chek_begin)) -ge $1 ];then
        break
    elif [ -f $testresult/monkey_error.txt ];then
        break
    else
        $bb sleep 1
    fi
done
save_log $log_n
}

#run monkey steps.
run_monkey(){
$bb pkill com.android.commands.monkey
local log_n=0
local log_e=0
while [ $((`$bb awk -F. '{print $1}' /proc/uptime`-case_start_time)) -lt $1 ];do
    local tmp=`/system/bin/ps`
    local C_boot=`echo "$tmp"|$bb grep -c bootanimation`
    if [ $C_boot -eq 0 ];then
        local check=`echo "$tmp"|$bb grep -c com.android.commands.monkey`
        if [ $check -eq 0 ];then
            #check log
            if [ $log_n"a" != "0a" ];then
                save_log $log_n
            fi
            local log_n=`date +%Y%m%d%H%M%S`
            C_log $log_n
            lock 1
            comment "run_monkey" "$2" "Start test: $3 $1""S $4_$log_n"
            monkey $2 --throttle 500 --monitor-native-crashes $3 -v -v -v 2000 1>$testresult/monkey_log/$4_$log_n.txt 2>&1 &
            $bb sleep 3
            if [ `grep -c "No activities found to run, monkey aborted" $testresult/monkey_log/$4_$log_n.txt` -ne 0 ];then
                comment "run_monkey" "$2" "Error: No activities found to run, monkey aborted."
                save_log $log_n
                echo "$2 No activities" >$testresult/monkey_error.txt
                exit
            fi
        elif [ $check -eq 1 ];then
            #in activity contain "login", then press back.
            if [ $android -eq 6 ];then
                local tmp=`dumpsys SurfaceFlinger|$bb grep "|......|"`
            else
                local tmp=`dumpsys SurfaceFlinger|$bb grep "|....|"`
            fi
            if [ `echo "$tmp"|$bb grep -c "login"` -ne 0 ];then
                input keyevent 4
            elif [ `echo "$tmp"|$bb awk 'END{print NR}'` -eq 2 ];then
                lock 1
            fi
        #IF there are more than two monkey commands, kill all.
        elif [ $check -gt 1 ];then
            comment "run_monkey" "$2" "Error: $check monkey commands, killed!!!"
            $bb pkill com.android.commands.monkey
        fi
        $bb sleep 1
    else
        screencap -p $testresult/log/`date +%Y%m%d%H%M%S`.png
        comment "run_monkey" "bootanimation" "sleep 5"
        $bb sleep 5
    fi
done
$bb pkill com.android.commands.monkey
comment "run_monkey" "$2" "Finish test."
save_log $log_n
lock 0
}

#case
caselist(){
case "$1" in
    #test one package
    0)
        case "$3" in
            "com.letv.app.appstore"|"com.letv.games")
                run_monkey $2 "-p $3" "--pct-touch 20 --pct-trackball 5 --pct-motion 35 --pct-flip 5 --pct-appswitch 30 --pct-anyevent 5" "case$1_$3"
                wait_time 600
                am force-stop $3
            ;;
            "com.android.launcher3")
                run_monkey $2 "-p $3" "--pct-touch 20 --pct-trackball 10 --pct-motion 50 --pct-flip 5  --pct-appswitch 10 --pct-anyevent 5" "case$1_$3"
                wait_time 600
                am force-stop $3
            ;;
            "com.letv.android.quicksearchbox"|"com.letv.android.voiceassistant"|"com.google.android.googlequicksearchbox")
                run_monkey $2 "-p com.android.launcher3 -p $3" "--pct-touch 30 --pct-trackball 10 --pct-motion 45 --pct-flip 5 --pct-appswitch 5 --pct-anyevent 5" "case$1_$3"
                wait_time 600
                am force-stop $3
            ;;
            "com.letv.android.client"|"com.letv.android.letvlive"|"com.google.android.youtube"|"com.letv.internationalsarrs")
                run_monkey $2 "-p $3" "--pct-touch 10 --pct-trackball 10 --pct-motion 10 --pct-flip 10 --pct-appswitch 55 --pct-anyevent 5" "case$1_$3"
                wait_time 600
                am force-stop $3
            ;;
            "com.letv.lesophoneclient")
                run_monkey $2 "-p $3 -p com.letv.android.client" "--pct-touch 30 --pct-trackball 10 --pct-motion 45 --pct-flip 5 --pct-appswitch 5 --pct-anyevent 5" "case$1_$3"
                wait_time 600
                am force-stop $3
                am force-stop com.letv.android.client
            ;;
            "com.android.gallery3d"|"com.google.android.apps.photos"|"com.android.browser"|"com.android.chrome")
                run_monkey $2 "-p $3" "--pct-touch 10 --pct-trackball 10 --pct-motion 10 --pct-flip 5 --pct-appswitch 50 --pct-anyevent 5 --pct-pinchzoom 10" "case$1_$3"
                wait_time 600
                am force-stop $3
            ;;
            *)
                run_monkey $2 "-p $3" "--pct-touch 10 --pct-trackball 10 --pct-motion 10 --pct-flip 10 --pct-appswitch 55 --pct-anyevent 5" "case$1_$3"
                wait_time 600
                am force-stop $3
            ;;
        esac
    ;;
    #more than one package, appswitch 70%
    1)
        local packages=`echo "$3"|$bb awk -F "|" '{for(i=1;i<NF;i++)printf "-p "$i" ";printf "-p "$NF}'`
        run_monkey $2 "$packages" "--pct-touch 5 --pct-trackball 5 --pct-motion 10 --pct-flip 5 --pct-appswitch 70 --pct-anyevent 5" "case$1_appswitch70"
        wait_time 600
    ;;
    *)
        comment "caselist" "No case" "$1"
    ;;
esac
}

#main
case_start_time=`$bb awk -F. '{print $1}' /proc/uptime`
case $# in
    3)
        caselist $2 $1 "$3"
    ;;
    4)
        run_monkey $1 "$2" "$3" "$4"
    ;;
    *)
        comment "case" "Args are wrong!!!" "$*"
        exit
    ;;
esac

（3）主控逻辑——自定义名称.sh

#!/system/bin/sh

########## 初始设置 ##########

#加载全局变量和函数
source /data/local/tmp/function.sh
#创建ANR/FC/tombstone tag的异常log
c_log 0

########## 完成设置 ##########


########## monkey测试逻辑 ##########

# 执行实例：
# 方式1 执行case.sh已写好的case：$1时长?秒; $2-用例编号；$3-用例参数
# monkey_test 60 0 "com.letv.app.appstore"
# monkey_timeout 60
# 方式2 按参数执行moneky语句：$1-时长; $2-限制范围；$3-事件比例; $4-monkey log文件名
# monkey_test 60 "-p com.letv.games" "--pct-touch 20 --pct-trackball 5 --pct-motion 35 --pct-flip 5 --pct-appswitch 30 --pct-anyevent 5" "letv_games"
# monkey_timeout 60

#测试万象搜索
monkey_test 3600 0 "com.letv.android.quicksearchbox"
##将长按主页键对应操作修改为万象搜索，如果不显示万象搜索则长按唤起
longpress 3 "com.letv.android.quicksearchbox" 3600
#Monkey测试后锁屏10分钟
monkey_timeout 0
##保持am唤起主activity，间隔1S如不显示则唤起，由于“dumpsys activity 包名”获取不到乐搜activity传参
longam "com.letv.lesophoneclient" 3600 "com.letv.lesophoneclient/.ui.MainActivity"
monkey_timeout 0

########## monkey逻辑结束 ##########


########## 测试结束确保子进程已退出 ##########

#回收异常log进程
c_log 1

PID=`/system/bin/ps |grep $$|$bb awk -v pid=$$ '{if($2!=pid)print $2}'`
kill $PID
#通知停止监控
echo "`date +%m-%d" "%H":"%M":"%S` stop monitor scripts." > /data/local/tmp/stop

（4）MCM 监控方案脚本优化维护，统一为无 root，控制负载取消并发子进程方式，用类型控制是否获取 heap

#!/system/bin/sh
if [ -f /data/local/tmp/busybox ];then
    export bb="/data/local/tmp/busybox"
else
    echo "No /data/local/tmp/busybox"
    exit
fi
#参数判断
if [ $# -le 1 ];then
    echo "Args:$* is wrong!!!"
    exit
elif [ $# -eq 2 ];then
    packages="All"
elif [ $# -eq 3 ];then
    packages="$3"
fi
if [ -f /data/local/tmp/stop ];then
    $bb rm /data/local/tmp/stop
fi

#args:1-PID; 2-command; 3-Loop; 4-command args
getmem_pid(){
if [ -d /proc/$1 ];then
    local pss=`dumpsys meminfo $1|$bb awk -v pid=$1 -v comm=$2 -v loop=$3 '{if($1=="Uptime:")a=sprintf("%.3f",$2/1000);if($1=="**")comm=substr($6,2,length($6)-2);if($1=="Native"){n=n+$(NF-2);o=o+$(NF-1);p=p+$NF}else{if($1=="Dalvik"&&NF>6){d=d+$(NF-2);e=e+$(NF-1);f=f+$NF;g=g+$(NF-6)}else{if($1=="TOTAL"){print loop","a","pid","comm","$2+0","n+0","o+0","p+0","d+0","e+0","f+0","g+0}}}}'`
    if [ ! -z "$pss" ];then
        echo "$pss,\"$4\""
    fi
fi
}

get_package(){
local tmp=`dumpsys meminfo -c|$bb grep -E "time,|cat,"`
echo "$tmp"|$bb awk -F, '{if(NR==1){t=sprintf("%.3f",$2/1000)}else{if($1=="cat"){if(r=="")r=$3;else r=r","$3}}}END{print t","r}' >>$testresult/mem2.csv
local grep_str=`echo $packages|$bb sed 's/\./\\\\./g;s/\[/\\\[/g;s/\]/\\\]/g'`
local check=`/system/bin/ps|$bb grep -E "$grep_str"`
if [ ! -z "$check" ];then
    echo "$packages"|$bb sed 's/|/\n/g'|while read p;do
        echo "$check"|$bb awk -v package="$p" '{if($NF==package){t+=1;print $2" "$NF" "t}}'|while read l;do
            local pid=`echo $l|$bb awk '{print $1}'`
            if [ -f /proc/$pid/cmdline ];then
                local arg=`$bb awk 'BEGIN{r="null"}{if(NR>1){if(NR==2)r=$0;else r=r" "$0}}END{print r}' /proc/$pid/cmdline`
                if [ -z `echo $arg|$bb tr -d " "` ];then
                    local arg="null"
                fi
                getmem_pid $pid "`echo $l|$bb awk '{print $2}'`" $1 "$arg"
            fi
        done
    done
fi
}

get_meminfo(){
local tmp=`dumpsys meminfo -c|$bb grep -E -v ",grep,|,sh,|,dumpsys,"`
if [ ! -z "$tmp" ];then
    local uptime=`echo "$tmp"|$bb awk -F, 'NR==1{printf("%.3f",$2/1000)}'`
    echo "$tmp"|$bb awk -v time=$uptime -F, '$1=="cat"{if(r=="")r=$3;else r=r","$3}END{print time","r}' >>$testresult/mem2.csv
    local tmp=`echo "$tmp"|$bb grep -E "proc"`
    if [ $2 -eq 1 ];then
        echo "$tmp"|$bb grep ",native,"|while read l;do
            local pid=`echo $l|$bb awk -F, '{print $4}'`
            local comm=`echo $l|$bb awk -F, '{print $3}'`
            local pss=`echo $l|$bb awk -F, '{print $5}'`
            if [ ! -z "$pid" -a ! -z "$comm" -a ! -z "$pss" ];then
                if [ -f /proc/$pid/cmdline ];then
                    local arg=`$bb awk 'BEGIN{r="null"}{if(NR>1){if(NR==2)r=$0;else r=r" "$0}}END{print r}' /proc/$pid/cmdline`
                    if [ -z `echo $arg|$bb tr -d " "` ];then
                        local arg="null"
                    fi
                else
                    local arg="null"
                fi
                echo "$1,$uptime,$pid,$comm,$pss,,,,,,,,,\"$arg\""
            fi
        done
        local tmp=`echo "$tmp"|$bb grep -v ",native,"|$bb awk -F, '{print $4" "$3}'`
        echo "$tmp"|while read l;do
            getmem_pid $l $1 "null"
        done
    elif [ $2 -eq 0 ];then
        echo "$tmp"|while read l;do
            local pid=`echo $l|$bb awk -F, '{print $4}'`
            local comm=`echo $l|$bb awk -F, '{print $3}'`
            local pss=`echo $l|$bb awk -F, '{print $5}'`
            if [ ! -z "$pid" -a ! -z "$comm" -a ! -z "$pss" ];then
                if [ -f /proc/$pid/cmdline ];then
                    local arg=`$bb awk 'BEGIN{r="null"}{if(NR>1){if(NR==2)r=$0;else r=r" "$0}}END{print r}' /proc/$pid/cmdline`
                    if [ -z `echo $arg|$bb tr -d " "` ];then
                        local arg="null"
                    fi
                else
                    local arg="null"
                fi
                echo "$1,$uptime,$pid,$comm,$pss,\"$arg\""
            fi
        done
    fi
fi
}

getmem(){
local get_t=`$bb awk '{print $1}' /proc/uptime`
local info=`$bb awk 'BEGIN{r=0}{if($1=="MemFree:"){a=$2};if($1=="Buffers:"){b=$2};if($1=="Cached:"){c=$2};if($1=="Active:"){e=$2};if($1=="Inactive:"){f=$2};if($1=="Active(anon):"){g=$2};if($1=="Inactive(anon):"){h=$2};if($1=="Active(file):"){i=$2};if($1=="Inactive(file):"){j=$2};if($1=="Dirty:"){k=$2};if($1=="Writeback:"){l=$2};if($1=="Mapped:"){m=$2};if($1=="Slab:"){n=$2};if($1=="CMA"&&$2=="Free:"){r=1;a=a-$3;o=$3}}END{if(r==0) print a","b","c","e","f","g","h","i","j","k","l","m","n;else print a","b","c","e","f","g","h","i","j","k","l","m","n","o}' /proc/meminfo`
echo "$get_t,$info" >>$testresult/mem.csv
}

getcpu(){
local get_t=`$bb awk '{print $1}' /proc/uptime`
local activity=`dumpsys window w|$bb grep mFocusedApp|$bb awk '{print $5}'|$bb tr -d ',}'`
local data_t=`date +%Y/%m/%d" "%H:%M:%S`
local tmp=`$bb top -b -n 1|$bb grep -v "busybox"|$bb sed '2s/%//g;s/\\.0 / /g;s/ S N / SN /g;s/ R N / RN /g;s/ D N / DN /g;s/ Z N / ZN /g;s/ T N / TN /g;s/S </S</g;s/D </D</g;s/R </R</g;s/Z </Z</g;s/T </T</g;s/t </t</g;s/[0-9]m[0-9]/m /g;s/}/{/g;s/ th\\]/_th\\]/g;s/\\[mtk /\\[mtk_/g'|$bb awk -v data="$data_t" -v loop=$1 -v time="$get_t" -v act=$activity -v csv="$testresult/cpu.csv" -v csv2="$testresult/check.log" -v cpu=$2 -v T="{" -v T2="\"" '{if(NR==2) print loop","time","T2 act T2","$2","$4","$6","$8","$10","$12","$14","data >>csv;if(NR>4){r="";if($cpu=="0") exit;if($cpu+0==0){if($(cpu-1)/1000>0){a=sprintf("%.0f",$(cpu-1)/1000)}else{a=sprintf("%.1f",$(cpu-1))}c=substr($(cpu-1),length(a)+1);r=$cpu;if(NF>cpu);r=r T$(cpu+1)}else{if($(cpu+1)+0!=0){print $0 >>csv2}else{c=$cpu;r=$(cpu+1)}};if($(cpu+1)+0==0){if(NF>cpu+1){r=r T$(cpu+2);if(NF>cpu+2)r=r T$(cpu+3);if(NF>cpu+3)for(i=(cpu+4);i<=NF;i++)r=r" "$i};print loop","time","$1","c","r}}}'`

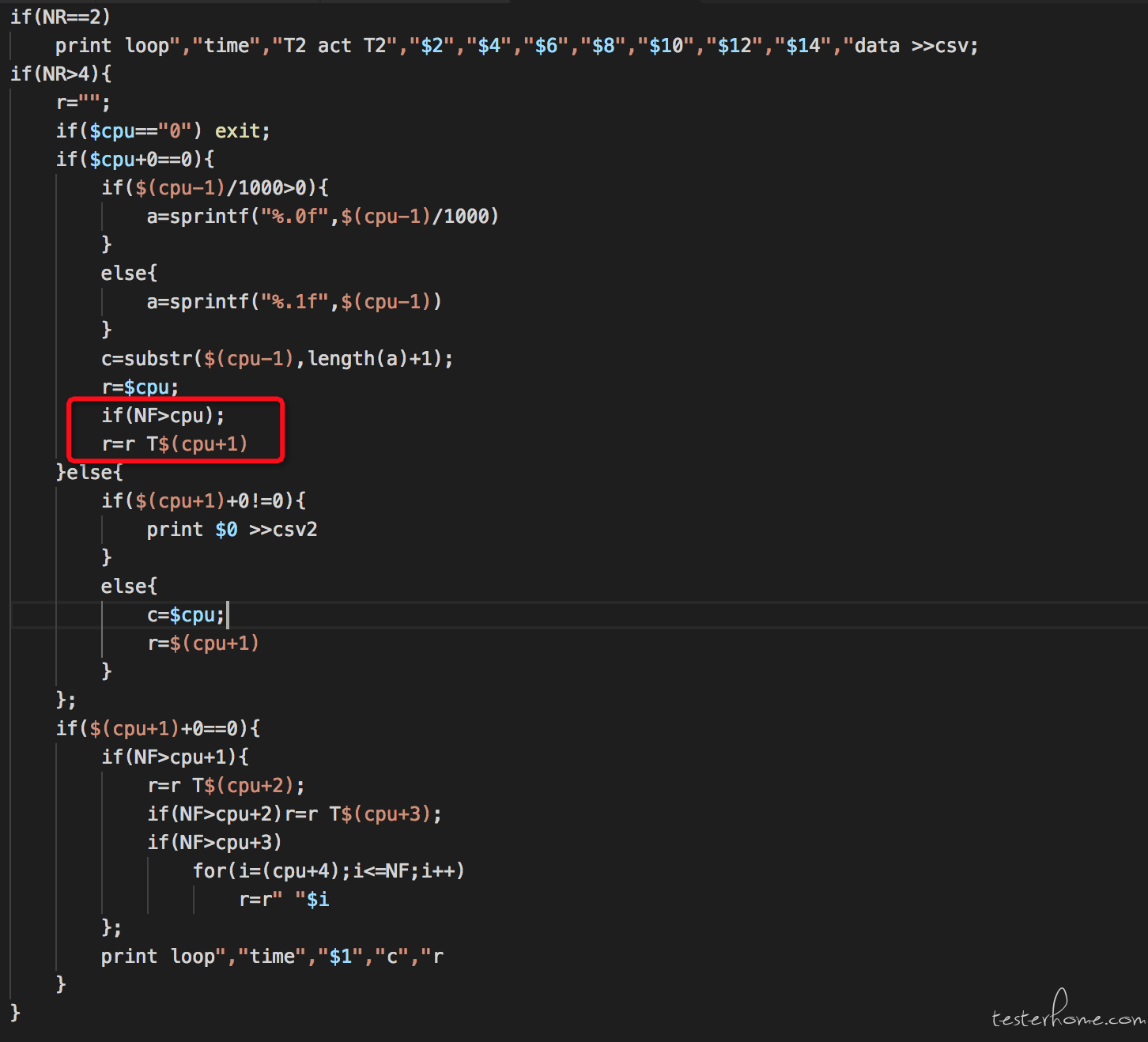

echo "$tmp"|$bb awk -F"{" -v S="}" -v T="\"" '{if(NF==1)print $0",,";if(NF==2)print $1","T$2T",";if(NF==3)print $1","T$2" "$3T",";if(NF==4&&$3=="")print $1$4",,"T$2T;if(NF==4&&$3!="")print $1","T$2" "$3S$4T",";if(NF>4&&$3==""){a=$5;if(NF>5)for(i=6;i<=NF;i++)a=a S $i;print $1$4","T a T","T$2T};if(NF>4&&$3!=""){a=$4;if(NF>4)for(i=5;i<=NF;i++)a=a S $i;print $1","T$2" "$3" "a T","}}' >>$testresult/cpuinfo.csv
}

#全局参数
testresult="/data/local/tmp/mcm_result"
if [ -f $testresult/state.txt ];then
    pid=`$bb awk -F "," '{print $1}' $testresult/state.txt`
    if [ -f /proc/$pid/cmdline ];then
        if [ `$bb awk 'NR==1{print $1}' /proc/$pid/cmdline`"a" == "sha" ];then
            echo "The $pid is sh command."
            exit
        fi
    fi
fi
if [ -d $testresult ];then
    $bb rm -r $testresult
fi
mkdir $testresult

mac=`cat /sys/class/net/*/address|$bb sed -n '1p'|$bb tr -d ':'`
model=`getprop ro.product.model|$bb sed 's/ /_/g'`
build=`getprop ro.build.fingerprint`
if [ -z $build ];then
    build=`getprop ro.build.description`
fi

start_time="`date +%Y/%m/%d" "%H:%M:%S`"
start_s=`$bb awk -F. '{print $1}' /proc/uptime`
echo "$$,$1,0/?,$model-$mac,$start_time,$start_s,$start_s,$build,$packages" >$testresult/state.txt
echo "Loop:$1,Time,Activity,usr,sys,nic,idle,io,irq,sirq,Data Time" >$testresult/cpu.csv
echo "Loop:$1,Time,PID,%CPU,Command,args,Thread" >$testresult/cpuinfo.csv
if [ `$bb grep -c "CMA Free" /proc/meminfo` -eq 0 ];then
    echo "Time:$1,MemFree,Buffers,Cached,Active,Inactive,Active(anon),Inactive(anon),Active(file),Inactive(file),Dirty,Writeback,Mapped,Slab" >$testresult/mem.csv
else
    echo "Time:$1,MemFree,Buffers,Cached,Active,Inactive,Active(anon),Inactive(anon),Active(file),Inactive(file),Dirty,Writeback,Mapped,Slab,CMA Free" >$testresult/mem.csv
fi
echo "Time:$1,"`dumpsys meminfo -c |$bb awk -F, '$1=="cat"{if(NR==1)r=$2;else r=r","$2}END{print r}'|$bb sed 's/ /_/g;s/\.//g'` >$testresult/mem2.csv
if [ $2 -eq 0 -a $# -eq 2 ];then
    echo "Loop:$1,Time,PID,Process_Name,Pss,Args" >$testresult/meminfo.csv
else
    echo "Loop:$1,Time,PID,Process_Name,Pss,Native_Heap(Size),Native_Heap(Alloc),Native_Heap(Free),Dalvik_Heap(Size),Dalvik_Heap(Alloc),Dalvik_Heap(Free),Dalvik_Pss,Args" >$testresult/meminfo.csv
fi
cpu_p=`$bb top -b -n 1|$bb awk 'NR==4{print NF-1}'`
loop=0
while true;do
    start_second=`$bb awk -F. '{print $1}' /proc/uptime`
    getcpu $loop $cpu_p
    getmem $loop
    if [ $# -eq 2 ];then
        get_meminfo $loop $2 >>$testresult/meminfo.csv
    elif [ $# -eq 3 ];then
        get_package $loop >>$testresult/meminfo.csv
    fi
    end_second=`$bb awk -F. '{print $1}' /proc/uptime`
    use_second=$((end_second-start_second))
    echo Use second: $use_second
    if [ -f /data/local/tmp/stop ];then
        echo "Found stop file!!!"
        break
    elif [ `$bb df /data|$bb awk '{r=substr($(NF-1),1,length($(NF-1))-1)}END{print r+0}'` -ge 90 ];then
        echo "The free space of data less 10%,stop!!!"
        break
    fi
    if [ $use_second -lt $1 ];then
        sleep $(($1-use_second))
    fi
    loop=$((loop+1))
    end_second=`$bb awk -F. '{print $1}' /proc/uptime`
    echo "$$,$1,$loop/?,$model-$mac,$start_time,$start_s,$end_second,$build,$packages" >$testresult/state.txt
done

更新维护

2016/06/08：

MCM 更新维护了脚本：
1、由于 le 全球化 CPU 内存监控改了双语模板
2、修改了几处数据展示错误

为了全球化解释方便 monkey 方案起了个名字 SCMF(Shell control Monkey Framework)：
1、调整了 log 保存逻辑重构了之前按 10 秒筛查的逻辑，为了解决报 bug 时被反馈 log 不足情况
（1）保存 logcat 和 kmsg 按权限判定
（2）按时间戳保存 logcat 和 monkey log
（3）按 monkey 进程退出保存完整 log 进行打包压缩，命名按时间段命名 monkey/log 下
（4）按 tag 抓 ANR。FC，tombstone 的 log，兼容 mtk 和高通的不同 tag，按传感器名判断型号。用于后续筛查统计异常使用
（5）monkey 去除了去除异常继续执行的参数，以便退出后进行截图和当时 cpu，内存，进程信息抓取
2、填了些坑，如 system_server crash 判定，当发生 “软重启” 只截图停止 monkey 继续操作，timeout 时 case.sh 的子进程回收。

目前重构电量监控中，此版本没更新
