开源测试工具 fastmonkey 自我扫盲贴

烟消云散 · August 24, 2017 · Last by mary20199 replied at March 11, 2019 · 8313 hits
本帖已被设为精华帖!

基于 XCTestWD,swiftmonkey 二次开发,实现无需插桩的 iOS monkey 自动化工具 fastmonkey

优势

无需插桩!
高效率,每秒4-5个action!
轻量极简!

原理

先致敬两个开源工具;

1.swiftmonkey
       https://github.com/zalando/SwiftMonkey
       因其直接使用了 苹果的私有api 如XCEventGenerator.tapAtTouchLocations 故执行速度极快。同时也用类似android monkey的事件生成机制,自身源源不断的产生如 tap,swipe,pinchIn等事件使其对被测app产生了极大的压力
       缺点:需要插桩
2.XCTestWD
       https://github.com/macacajs/XCTestWD
       类似facebook wda的方式,在xcode中执行xcuitest时启动一个监听server,可通过外部发送命令来创建待测app对应session并启动app,同时也实现了dump tree 和依据xpath,id等来定位某个控件并操作这些控件
3.Fastmonkey
       (https://github.com/zhangzhao4444/Fastmonkey
       结合两者优点并改造两者,在XCTestWD基础上实现一个server路由,外部命令时可引导启动app 并执行monkey

       首先感谢来自熊猫tv的大佬@zhangzhao_lenovo的无私贡献,开源给我们社区使用,这基本算UIAutomation被遗弃后,第一款无须注入就能使用的iOS monkey测试的工具了,给zhangzhao_lenovo大佬点赞。其次感谢macaca团队的@SamuelZhaoY @xdf 大佬们(ps:肯定还有其他大佬,这里我只把XCTestWD的作者,和我们最熟悉的达峰大佬@出来了,希望其他大佬不要在意),给我们做自动化测试的人员提供那么好用的macaca,以及他们自己写的可以用来代替WDA的XCTestWD,我代替伸手党们对你们表示感谢。

废话不多说了,今天我开始使用Fastmonkey,最开始配置有点小问题,但是很快在zhangzhao_lenovo大佬以及@Only7的帮助下解决了,这里我来写个扫盲贴(安装贴?)

第一步:打开终端,git clone下来(其他方式皆可)

$ git clone https://github.com/zhangzhao4444/Fastmonkey.git

第二步:因为我是直接git下来的,Fastmonkey在我的/Users/xxxxx/Fastmonkey路径下,接下来我们更新依赖包.

先定位到XCTestWD-master下

$ cd /Users/xxxxx/Fastmonkey/XCTestWD-master

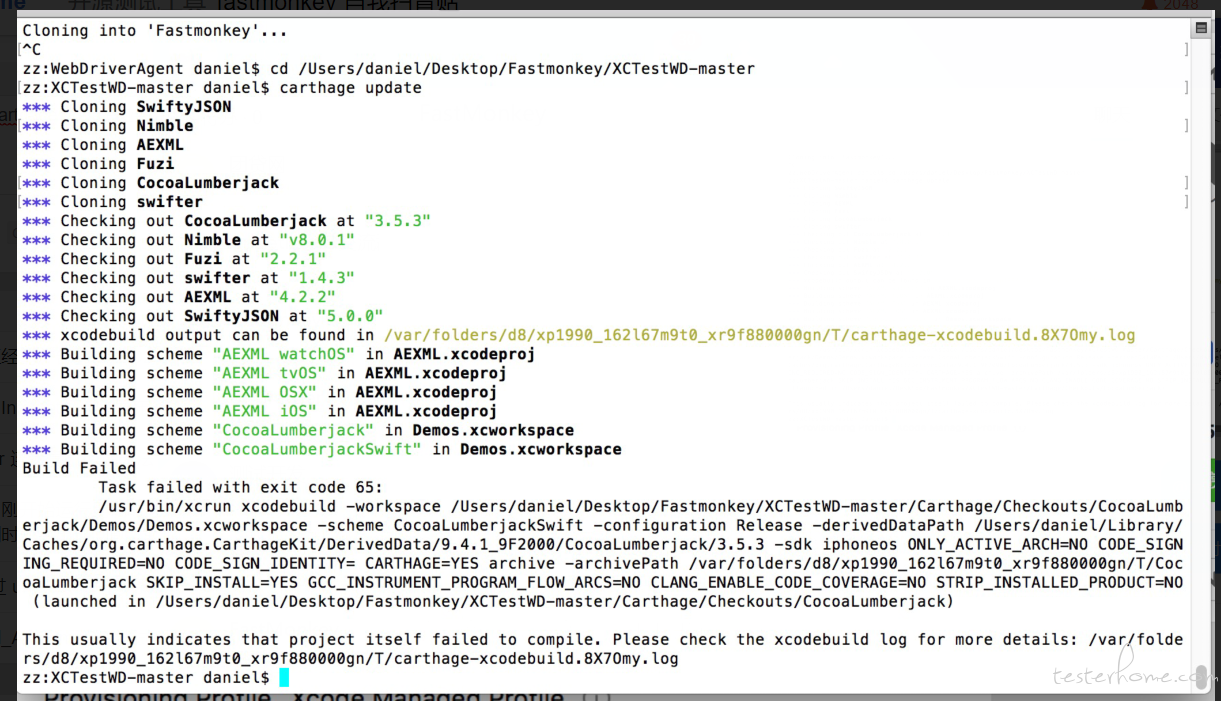

cartfile安装第三方库

$ carthage update

第三步:第三方库下载好,开始配置XCTestWD.xcodeproj。我们用Xcode打开XCTestWD.xcodeproj,然后来配置XCTestWD里面的一些内容

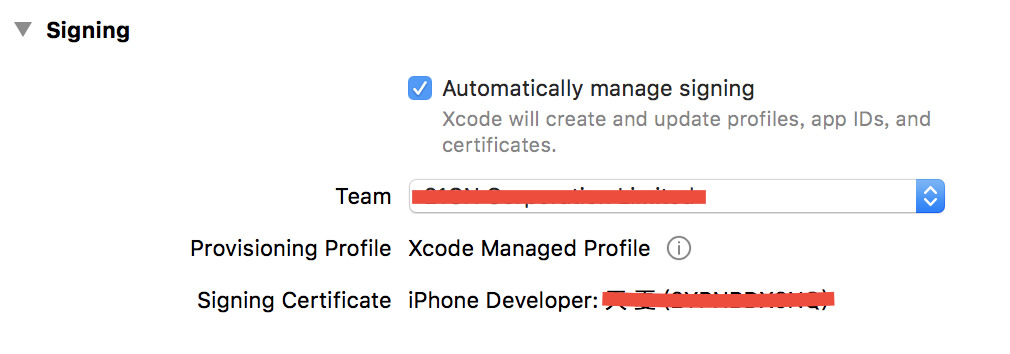

首先是XCTestWD->General->Signing->Team,把账号设置好,具体可以见XCTestWD的配置,保证不报错。

当然XCTestWDUITests->General->Signing->Team也一样

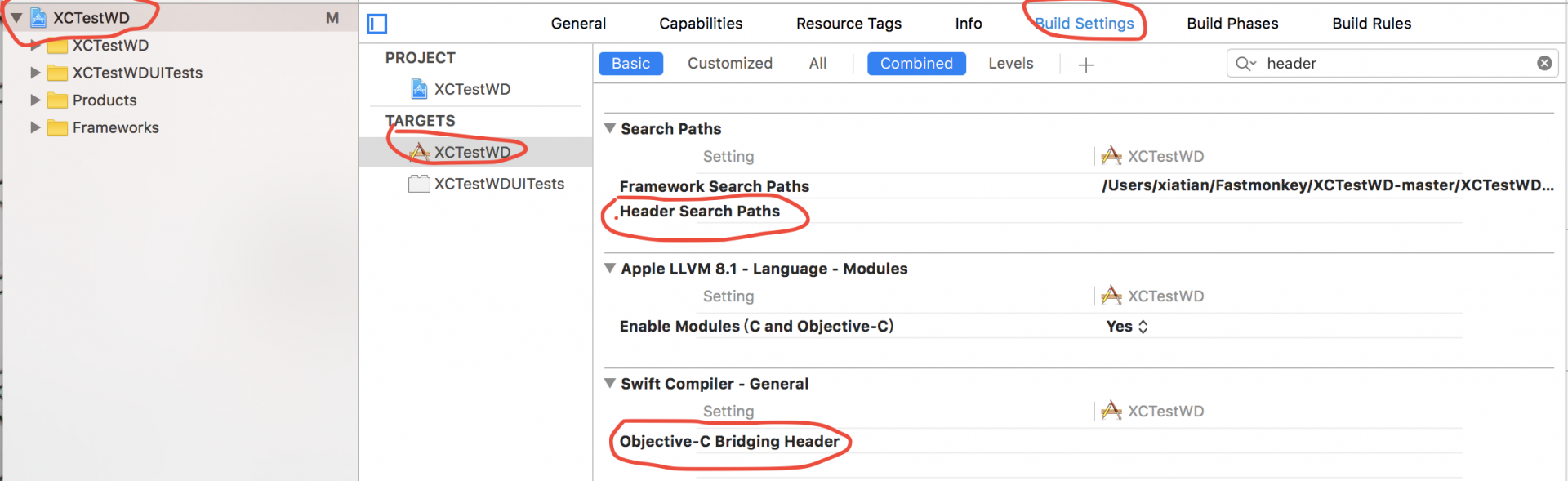

然后在XCTestWD->Build Setting->Header Search Paths和XCTestWD->Build Setting->Objective-C Bridging Header中,把里面的XCTestWD/XCTestWD-Bridging-Header.h删掉。
理由见下面。

第四步:环境配置好了,就是运行了,我这里就直接用真机来运行的。

首先,打开一个终端窗口,执行:

$ iproxy 8001 8001

接着,再打开一个终端窗口。执行:

$ cd /Users/xiatian/Fastmonkey/XCTestWD-master/XCTestWD
$ xcodebuild -project XCTestWD.xcodeproj \
-scheme XCTestWDUITests \
-destination 'platform=iOS,name=(your device name)' \
XCTESTWD_PORT=8001 \
clean test

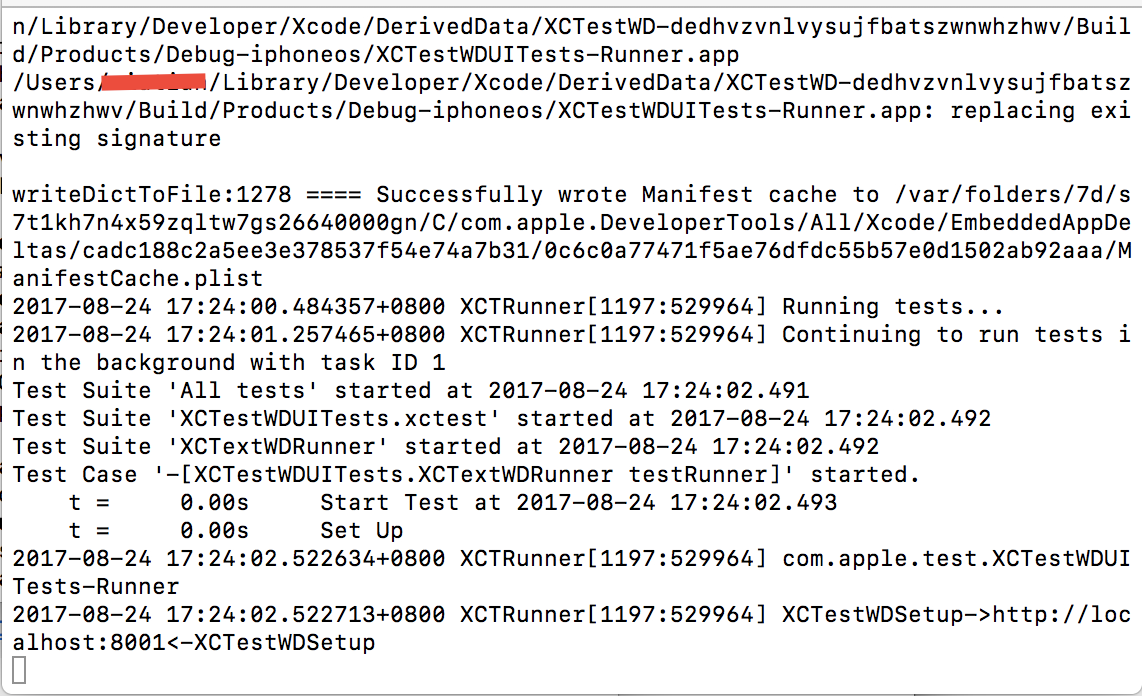

出现上面的页面,说明XCTestWD运行成功了

最后,打开第三个终端窗口,执行:

$curl -X POST -H "Content-Type:application/json" \
-d "{\"desiredCapabilities\":{\"deviceName\":\"xxxx\",\"platformName\":\"iOS\", \"bundleId\":\"com.PandaTV.Live-iPhone\",\"autoAcceptAlerts\":\"false\"}}" \
http://127.0.0.1:8001/wd/hub/monkey

你就可以看见你手机成功打开PandaTV,然后monkey似的在那乱点了~~~~

问题:

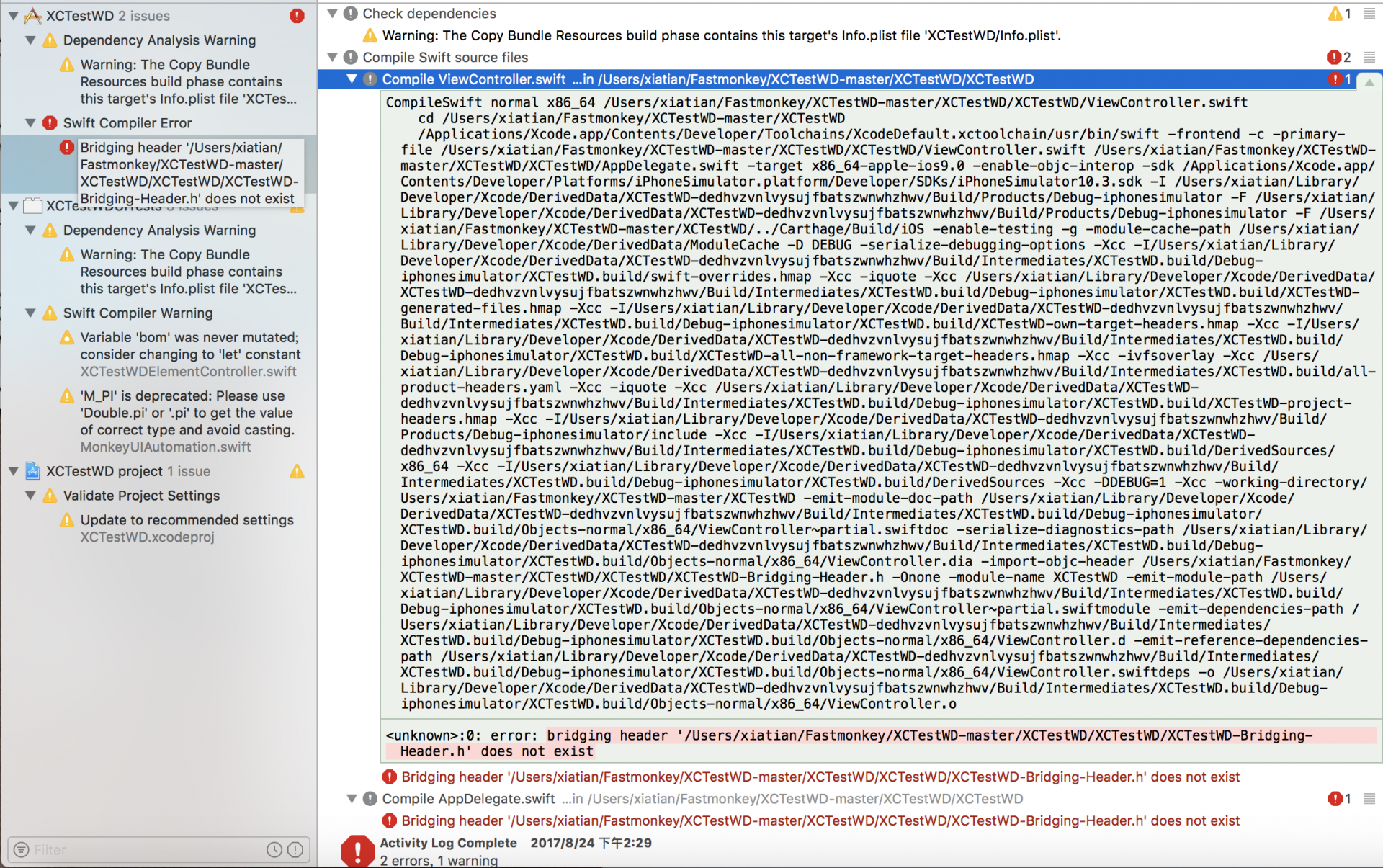

、error: bridging header '/Users/xxxxx/Fastmonkey/XCTestWD-master/XCTestWD/XCTestWD/XCTestWD-Bridging-Header.h' does not exist

原因:

xcode buildsetting有问题。 xctestwd中没有用到oc,swift混编,header search path,objecktive-c bridging header 配置可去掉再试试。xctestwduitest中用了混编才需要 xctestwduitest-bridging-header.h

解决方案:

XCTestWD->Build Setting->Header Search Paths和XCTestWD->Build Setting->Objective-C Bridging Header中,把里面的XCTestWD/XCTestWD-Bridging-Header.h删掉

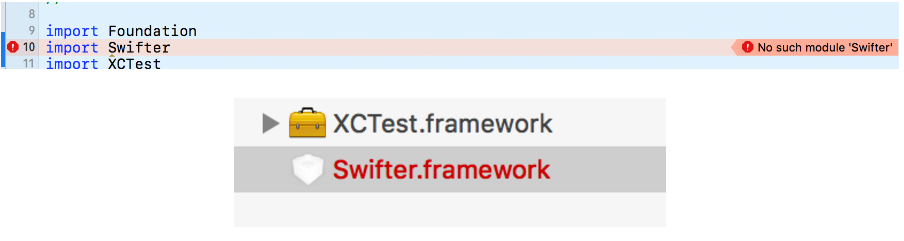

、Swifter无法找到

原因:未安装第三方库

解决方案:

先定位到XCTestWD-master下

$ cd /Users/xxxxx/Fastmonkey/XCTestWD-master

cartfile安装第三方库

$ carthage update

、如果Mac插入多台iPhone设备

iproxy 8001 8001 后需要加serialid 指定哪台iPhone设备做端口映射。 然后curl 中执行对应iPhone设备

、xcodebuild方式跑起来的截图和crash日志在哪里找呢?

xcode里中断运行时 有个log路径的日志输出 xxx/XCTestWD-xxx/Logs/Test/Attentment

、crash log也是会生成在 Attachments文件夹里面吗? 该crash log是否可以追踪到app代码问题?

crash 也在Attachments里

就是系统生成的崩溃堆栈文件,研发有对应的符号文件是可以定位的

当然,最后再次感谢zhangzhao_lenovo大佬,该贴只为扫盲,解决一些小白的安装流程及问题,做了伸手党,也要帮大佬解决一点小问题嘛。

大佬原贴在此:https://testerhome.com/topics/9524

有难度的问题可以去该帖近距离触摸zhangzhao_lenovo大佬,没难度的就在这个帖子下面大家一起讨论吧。

照例,在最后@几个大神防止帖子沉下去。。。。

@seveniruby @xdf @zhangzhao_lenovo@Lihuazhang@pliue (ps:继续抱大腿活动)

2017-10-19更新

最近升级Xcode9和iOS11后,fastmonekey也受到一定影响,存在一些新的问题,大家可以看下这篇文章:https://testerhome.com/topics/10390,希望能帮助你们解决问题。

感谢@Test_Sir的贡献。

如果觉得我的文章对您有用,请随意打赏。您的支持将鼓励我继续创作!
共收到 55 条回复 时间 点赞
思寒_seveniruby 将本帖设为了精华贴 25 Aug 06:42

学习学习

Mark ! 感谢分享!

5Floor has been deleted

请问下执行iproxy 8001 8001报错iproxy 找不到是什么原因,还有第二个和三个终端的deviceName就是苹果手机的udid吗

Code signing is required for product type 'UI Testing Bundle' in SDK 'iOS 10.3' 提示我这个 我应该怎么处理

Scofell 回复

你是不是没有安装libimobiledevice啊?

Scofell 回复

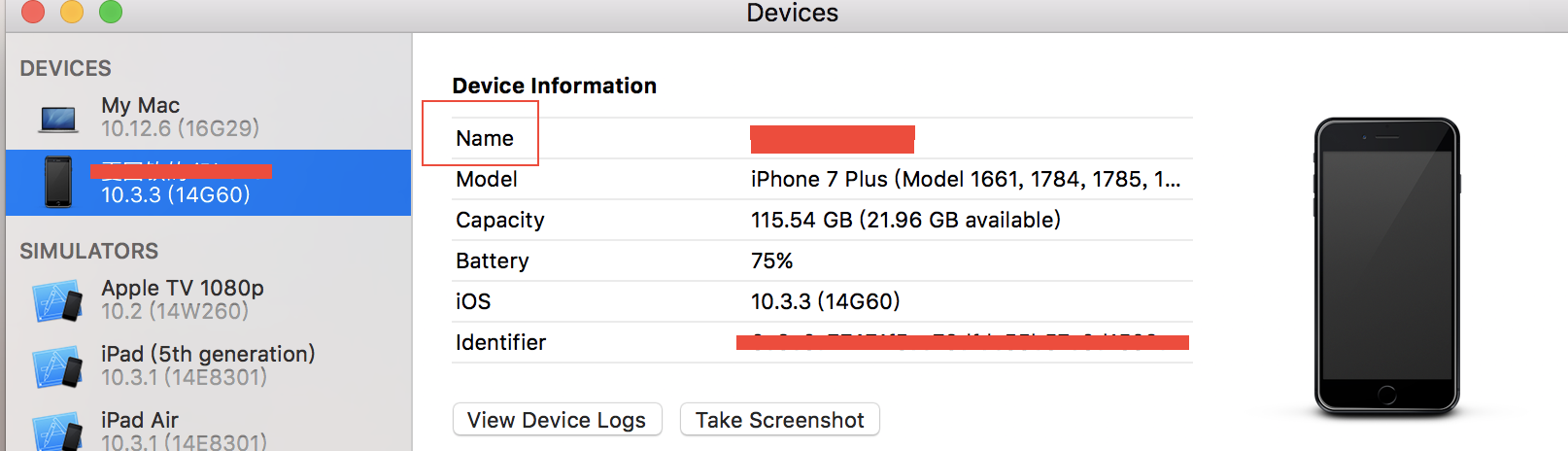

deviceName是你的设备名称啊

xcode->device->你的设备->name
一般是 XXX的 iPhone

志雄 回复

xcode版本不够吧,升级xcode吧

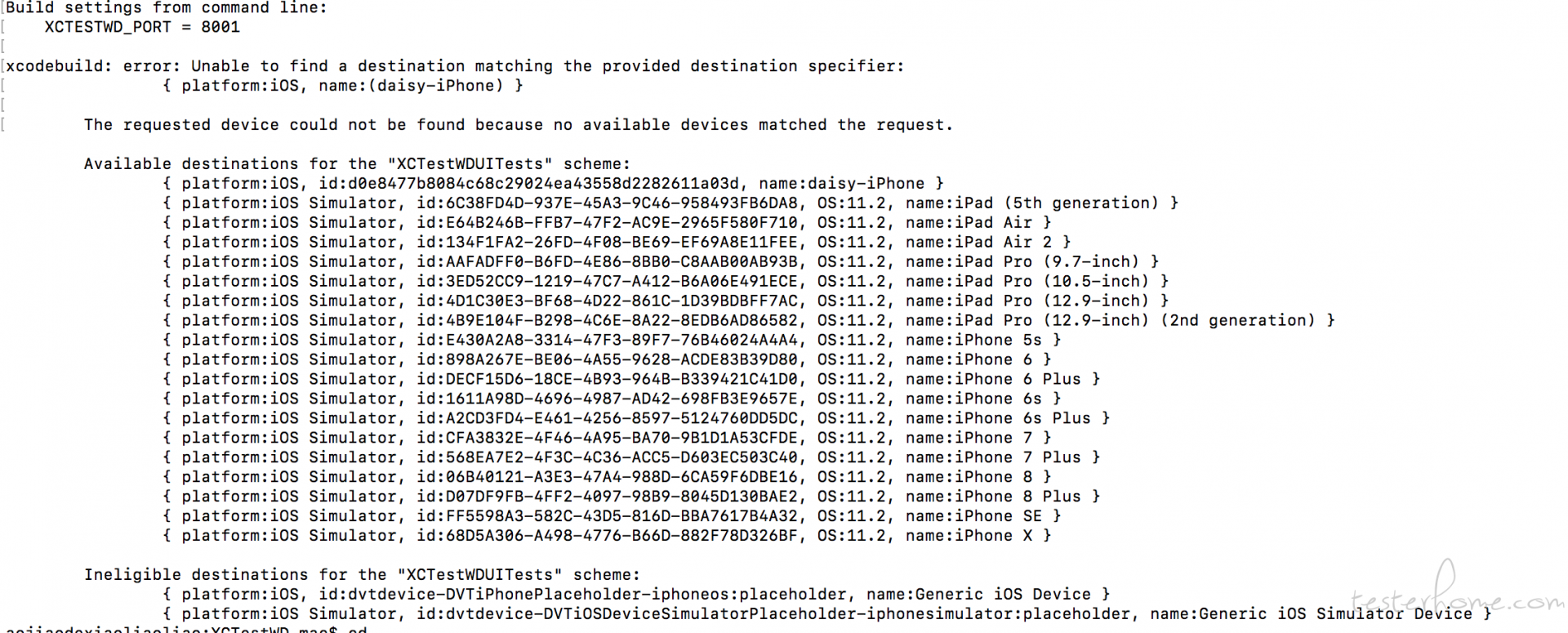

执行到最后一步,提示找不到我的设备,但是错误日志里打出的列表中又有我的设备。。。
执行命令是:xcodebuild -project XCTestWD.xcodeproj -scheme XCTestWDUITests -destination 'platform=iOS,name=(“张圣洁”的 iPhone)' XCTESTWD_PORT=8001 clean test
错误日志:
xcodebuild: error: Unable to find a destination matching the provided destination specifier:
{ platform:iOS, name:(“张圣洁”的 iPhone) }

The requested device could not be found because no available devices matched the request.

Available destinations for the "XCTestWDUITests" scheme:
{ platform:iOS, id:48ade89d767be26fa2d6a53eec51085e02e43ec6, name:“张圣洁”的 iPhone }
{ platform:iOS, id:537a954539a82db33ed879a4d500c70a8458de9c, name:yan的 iPhone }
{ platform:iOS Simulator, id:B896FC57-4760-4930-AB11-2D5C4E223769, OS:10.3.1, name:iPad (5th generation) }
{ platform:iOS Simulator, id:1662F473-A67B-4E6A-8971-651B16394D72, OS:10.3.1, name:iPad Air }
{ platform:iOS Simulator, id:6D42E5E7-0F33-4A20-9837-E0BADBBA8342, OS:10.3.1, name:iPad Air 2 }
{ platform:iOS Simulator, id:950FB86A-CDEC-40F0-8FF2-AC2800F884DF, OS:10.3.1, name:iPad Pro (9.7 inch) }
{ platform:iOS Simulator, id:0512C785-4C39-4F35-93DA-B383CC8510DE, OS:10.3.1, name:iPad Pro (10.5-inch) }
{ platform:iOS Simulator, id:CAFEDC20-E79F-4061-9E24-B55E37A353B1, OS:10.3.1, name:iPad Pro (12.9 inch) }
{ platform:iOS Simulator, id:745B0C59-04DF-43D8-B431-086F74CAD7A5, OS:10.3.1, name:iPad Pro (12.9-inch) (2nd generation) }
{ platform:iOS Simulator, id:C79D11A9-DFE7-43A9-9871-3C030360AD57, OS:10.3.1, name:iPhone 5 }
{ platform:iOS Simulator, id:85F607AE-C9C5-4230-A5F6-01361253BBBF, OS:10.3.1, name:iPhone 5s }
{ platform:iOS Simulator, id:6D792B46-0296-4332-B643-FAC2BCB485B4, OS:10.3.1, name:iPhone 6 }
{ platform:iOS Simulator, id:8F207306-E311-43A5-8826-76C526E1E54E, OS:10.3.1, name:iPhone 6 Plus }
{ platform:iOS Simulator, id:FAE72621-4D4D-40DB-B6A8-CB422F8ABBFD, OS:10.3.1, name:iPhone 6s }
{ platform:iOS Simulator, id:34B7D02E-DBFC-4BCB-94D9-013E9B34BE91, OS:10.3.1, name:iPhone 6s Plus }
{ platform:iOS Simulator, id:F5C83B6B-148B-4C5A-B6E6-E620DE0ACA60, OS:10.3.1, name:iPhone 7 }
{ platform:iOS Simulator, id:2E95E3EF-D2FB-4921-A613-27021378E2DA, OS:10.3.1, name:iPhone 7 Plus }
{ platform:iOS Simulator, id:46143C6D-A772-450C-A8E9-CA0B429650F6, OS:10.3.1, name:iPhone SE }

Ineligible destinations for the "XCTestWDUITests" scheme:
{ platform:iOS, id:dvtdevice-DVTiPhonePlaceholder-iphoneos:placeholder, name:Generic iOS Device }
{ platform:iOS Simulator, id:dvtdevice-DVTiOSDeviceSimulatorPlaceholder-iphonesimulator:placeholder, name:Generic iOS Simulator Device }

运行xcodebuild -project XCTestWD.xcodeproj 这句报错:
2017-08-30 19:02:35.530 xcodebuild[41499:4750078] Error Domain=IDETestOperationsObserverErrorDomain Code=4 "Test operation was canceled. If you believe this error represents a bug, please attach the log file at /Users/mac/Library/Developer/Xcode/DerivedData/XCTestWD-cseytoewhlzxivgopaonbuqulosj/Logs/Test/BBE6C2E9-EFFC-4AC7-BF69-A360B492C709/Session-XCTestWDUITests-2017-08-30_190230-J7U8QS.log" UserInfo={NSLocalizedDescription=Test operation was canceled. If you believe this error represents a bug, please attach the log file at /Users/mac/Library/Developer/Xcode/DerivedData/XCTestWD-cseytoewhlzxivgopaonbuqulosj/Logs/Test/BBE6C2E9-EFFC-4AC7-BF69-A360B492C709/Session-XCTestWDUITests-2017-08-30_190230-J7U8QS.log}

Testing failed:
Use of undeclared type 'XCTestWDMonkey'
Use of unresolved identifier 'XCTestWDMonkey'
** TEST FAILED **

The following build commands failed:
CompileSwift normal armv7 /Users/mac/Documents/Fastmonkey/XCTestWD-master/XCTestWD/XCTestWDUITests/XCTestWDRunner.swift
CompileSwiftSources normal armv7 com.apple.xcode.tools.swift.compiler
(2 failures)

你curl中设备名不要打引号啊,就像下面这个:

curl -X POST -H "Content-Type:application/json" \
-d "{\"desiredCapabilities\":{\"deviceName\":\"XXX的 iPhone\",\"platformName\":\"iOS\", \"bundleId\":\"com.neudzf.CSDNBlog\",\"autoAcceptAlerts\":\"false\"}}" \
http://127.0.0.1:8001/wd/hub/monkey

其次你先不要插两台设备,如果要并发的话,请参考原贴的回复 https://testerhome.com/topics/9524

{ platform:iOS, id:48ade89d767be26fa2d6a53eec51085e02e43ec6, name:“张圣洁”的 iPhone }
{ platform:iOS, id:537a954539a82db33ed879a4d500c70a8458de9c, name:yan iPhone }
16Floor has been deleted
17Floor has been deleted
烟消云散 回复

我用xocode安装的xctestwd,然后curl的时候 链接的时候有问题
服务端:
Requesting connecion to device handle == 8 (serial: 48ade89d767be26fa2d6a53eec51085e02e43ec6), port 8001
Error connecting to device!
链接端:
curl: (52) Empty reply from server

首先是xcode不是xocode,你这代码注意点,别因为打错导致错误。
其次,你先按我写的指导教程一步一步的走嘛,先跑通,你再去用xcode run嘛。。。
最后,你这个是链接失败的错误,看看是不是端口没打开或者xctestwd没装好?
个人建议,你先按我的指导贴一步一步走一遍,看看是不是还有问题,再来提好吗?

烟消云散 回复

求教,按照你的步骤执行,在执行到xcodebuild -project XCTestWD.xcodeproj -scheme XCTestWDUITests -destination 'platform=iOS,name=slideplus' XCTESTWD_PORT=8001 clean test 出现下图错误,帮忙看下如何处理,万分感谢🙏

lemon 回复

你这个是代码层面的错误,建议去问@zhangzhao_lenovo;其次,我在https://testerhome.com/topics/9524#reply232xcode版本问题,你要不先降到8.3.3试试?看到你好像是

烟消云散 回复

嗯,谢谢楼主回复,我正在下载8.3的,9的有点不靠谱~

lemon 回复

希望你能成功运行。其实我也下了9来用过,确实兼容方面存在一定的问题,如果是研发还好,测试使用的框架有些地方不是那么友好。

请问楼上前辈下的Xcode8.3.3成功了吗?我也是执行到那一步报错了;错误原因如下图我看了一下Xcode版本是8.3.3,请教一下大神有什么办法能解决吗?

"xcode里中断运行时 有个log路径的日志输出 xxx/XCTestWD-xxx/Logs/Test/Attentment "
求问这个具体路径是?

bingle 回复

我找了很久才找到= =!
当前用户目录下的/Library/Developer/Xcode/DerivedData/XCTestWD-xxx/Logs/Test/Attachments

孟德功 FastMonkey iOS11 踩坑记 中提及了此贴 11 Oct 14:45

xcode 9.0,iOS 11 报错信息
/Users/Xx/Downloads/Fastmonkey-master/XCTestWD-master/XCTestWD/XCTestWDUITests/server/models/XCTestWDSession.swift:80:16: Use of unresolved identifier 'XCTestWDApplication'

fengcanfly 回复

解决方法:https://testerhome.com/topics/10390 这个帖子的问题2和问题3
#将XCTestWDApplication.m和XCTestWDApplication.m文件拖拽到Xcode中的PrivateHeaders文件下

需要在XCTestWDUITests-Bridging-Header.h文件中添加
#import "XCTestWDApplication.h"

30Floor has been deleted
lemon 回复

问题解决了,👍

樂易 回复

你的问题解决了么,我也遇到了同样的问题。

ode Signing Error: No profiles for 'XCTestWD.XCTestWDUITests' were found: Xcode couldn't find any iOS App Development provisioning profiles matching 'XCTestWD.XCTestWDUITests'. Automatic signing is disabled and unable to generate a profile. To enable automatic signing, pass -allowProvisioningUpdates to xcodebuild.

求助,一直报这个错误

The app ID "XCTestWD.XCTestWD" cannot be registered to your development team. Change your bundle identifier to a unique string to try again.

lemon 回复

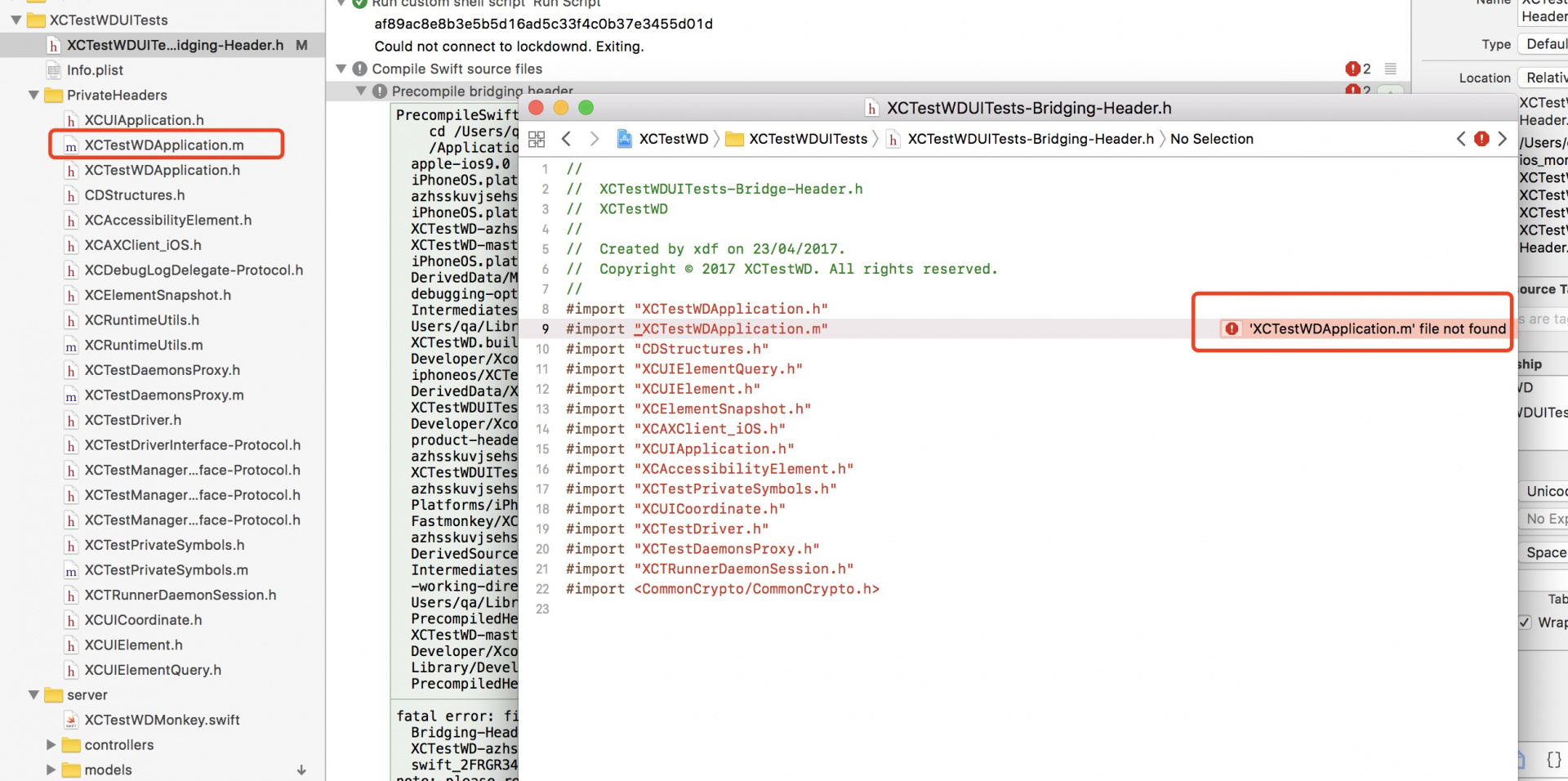

我有这个文件了怎么还提示找不到呢。谢谢~

小萨 回复

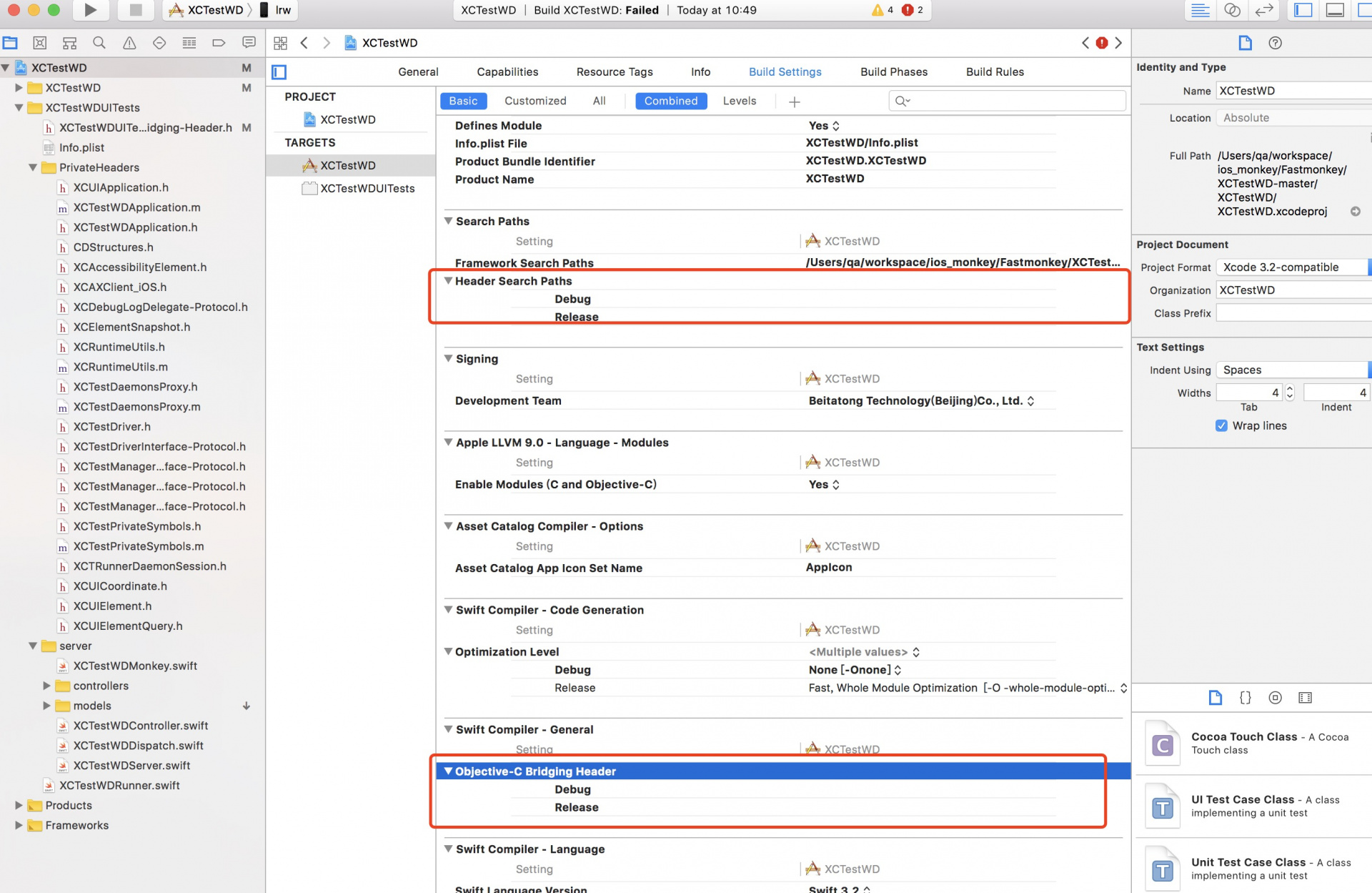

XCode设置里把XCTestWD->Build Setting->Header Search Paths和XCTestWD->Build Setting->Objective-C Bridging Header的值XCTestWD/XCTestWD-Bridging-Header.h删掉

lemon 回复


我已经删除了的,之前就是看的教程做的,谢谢~

Ron 回复

这个错误怎么解决的?

大浪 回复

这个我参考了ios签名与证书解决了,办法是改掉XCTestWD,XCTestWDUITests这两个target的Bundle Identifier, 随便在XCTestWD.XCTestWD后面加个字符串,如XCTestWD.XCTestWD.exter 就可以通过build了,我在xcode 9.2成功的

40Floor has been deleted
41Floor has been deleted

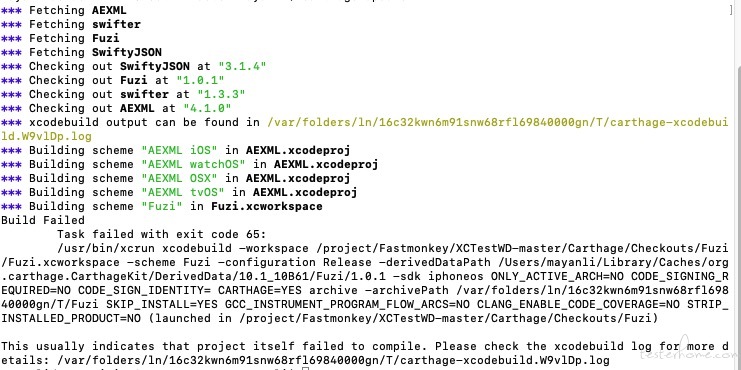

求助,我是刚接触的菜鸟,根据教程一步步来,也出现了评论里很多人提到的问题,一一解决了,但现在build的时候出现了个新错误:Failed to read file or folder at /Users/mac/Desktop/daisy/Fastmonkey-master/XCTestWD-master/XCTestWD/../Carthage/Build/iOS/Swifter.framework
Command /bin/sh failed with exit code 1
不知道怎么解决,我的carthage已经是29版本,且也update了

另:这个问题没有解决的前提下我执行xcodebuild那段代码时提示找不到设备(用的ipone x)求大神帮忙

小萨 回复

我也出现过这个问题,文件都在还是提示这个错误,开发帮忙的解决办法是把bridging-Header.h这个文件中报错这句修改为下面这句(原来的注释了),我的问题解决了,希望能帮到你

lemon FastMonkey Jenkins 部署及测试结果 web 展示 中提及了此贴 03 Apr 20:23
45Floor has been deleted
陈小憩 回复

请问下,你的这个问题解决了吗?我这边按照教程操作时,也出现了这个问题。

Ld /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Products/Debug-iphoneos/XCTestWD.app/XCTestWD normal arm64
cd /Users/didi/Fastmonkey/XCTestWD-master/XCTestWD
export IPHONEOS_DEPLOYMENT_TARGET=9.0
export PATH="/Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/usr/bin:/Applications/Xcode.app/Contents/Developer/usr/bin:/Users/didi/.rvm/gems/ruby-2.1.10/bin:/Users/didi/.rvm/gems/ruby-2.1.10@global/bin:/Users/didi/.rvm/rubies/ruby-2.1.10/bin:/Library/Java/JavaVirtualMachines/jdk1.8.0_121.jdk/Contents/Home/bin:/Users/didi/Library/Android/sdk/tools:/Users/didi/Library/Android/sdk/platform-tools:/Users/didi/apache-jmeter-3.3/bin:/usr/local/bin:/usr/bin:/bin:/usr/sbin:/sbin:/Users/didi/.rvm/bin"
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -arch arm64 -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS11.2.sdk -L/Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Products/Debug-iphoneos -F/Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Products/Debug-iphoneos -F/Users/didi/Fastmonkey/XCTestWD-master/XCTestWD/../Carthage/Build/iOS -filelist /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Intermediates.noindex/XCTestWD.build/Debug-iphoneos/XCTestWD.build/Objects-normal/arm64/XCTestWD.LinkFileList -Xlinker -rpath -Xlinker @executable_path/Frameworks -miphoneos-version-min=9.0 -dead_strip -Xlinker -object_path_lto -Xlinker /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Intermediates.noindex/XCTestWD.build/Debug-iphoneos/XCTestWD.build/Objects-normal/arm64/XCTestWD_lto.o -Xlinker -export_dynamic -Xlinker -no_deduplicate -fembed-bitcode-marker -fobjc-link-runtime -L/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/lib/swift/iphoneos -Xlinker -add_ast_path -Xlinker /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Intermediates.noindex/XCTestWD.build/Debug-iphoneos/XCTestWD.build/Objects-normal/arm64/XCTestWD.swiftmodule -framework Swifter -Xlinker -dependency_info -Xlinker /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Intermediates.noindex/XCTestWD.build/Debug-iphoneos/XCTestWD.build/Objects-normal/arm64/XCTestWD_dependency_info.dat -o /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Products/Debug-iphoneos/XCTestWD.app/XCTestWD
ld: warning: directory not found for option '-F/Users/didi/Fastmonkey/XCTestWD-master/XCTestWD/../Carthage/Build/iOS'
ld: framework not found Swifter
clang: error: linker command failed with exit code 1 (use -v to see invocation)

2018-04-13 21:36:27.827 xcodebuild[87354:1368155] Error Domain=IDETestOperationsObserverErrorDomain Code=14 "Test operation was canceled. If you believe this error represents a bug, please attach the log file at /var/folders/2w/tt1p_4td3yq9xlbl7c2t4jn00000gn/T/com.apple.dt.XCTest/IDETestRunSession-1ECEA01F-BB7D-45AD-9CCE-65A7921FDBCA/XCTestWDUITests-C45C2C09-797F-45C7-9E6B-D470986D8814/Session-XCTestWDUITests-2018-04-13_213626-XBYpp5.log" UserInfo={NSLocalizedDescription=Test operation was canceled. If you believe this error represents a bug, please attach the log file at /var/folders/2w/tt1p_4td3yq9xlbl7c2t4jn00000gn/T/com.apple.dt.XCTest/IDETestRunSession-1ECEA01F-BB7D-45AD-9CCE-65A7921FDBCA/XCTestWDUITests-C45C2C09-797F-45C7-9E6B-D470986D8814/Session-XCTestWDUITests-2018-04-13_213626-XBYpp5.log}

Testing failed:
Linker command failed with exit code 1 (use -v to see invocation)
** TEST FAILED **

The following build commands failed:
Ld /Users/didi/Library/Developer/Xcode/DerivedData/XCTestWD-ehrzcglifdezddhbggaxxxevomay/Build/Products/Debug-iphoneos/XCTestWD.app/XCTestWD normal arm64
(1 failure)

我把serverMode改成true,然后在执行完monkey之后出现如下错误
)}, isUniversal: 0, isXcodeManaged: 0, platforms: {(
<0x7fa0515441c0:>>,
<0x7fa051539ef0:>>
)}, filePath: <0x7fa054141ad0: profiles>>
)}
hasInternalSupport: NO
isSupportedOS: YES
developerDiskMountError: (null)
(null)
bootArgs:
connected: yes
isWirelessEnabled: no
connectionType: direct
} (11.2.6 (15D100))
MDMCreateDeltaDirectory:1920 calling MDMDirectoryDiff with:
state->old_bundle: /var/folders/pm/cw2vmzgx4fgbr69h7zl9fx1w0000gp/C/com.apple.DeveloperTools/All/Xcode/EmbeddedAppDeltas/bc0dfc406daf17d162760c73af6a35fc/1fd2561c180fc6838fa7565de169960e965e9ec3/XCTestWDUITests-Runner.app
state->new_bundle: /Users/dengjian/Library/Developer/Xcode/DerivedData/XCTestWD-fnuhsnwpyzwltgcbbdpzwgexyhef/Build/Products/Debug-iphoneos/XCTestWDUITests-Runner.app
state->dst_bundle: /var/folders/pm/cw2vmzgx4fgbr69h7zl9fx1w0000gp/C/com.apple.DeveloperTools/All/Xcode/EmbeddedAppDeltas/XCTestWDUITests-Runner.app.MpJNkW/XCTestWDUITests-Runner.app_sparse.ipa/Payload//XCTestWDUITests-Runner.app, binaryDiff flag: FALSE
dst_ipa: /var/folders/pm/cw2vmzgx4fgbr69h7zl9fx1w0000gp/C/com.apple.DeveloperTools/All/Xcode/EmbeddedAppDeltas/XCTestWDUITests-Runner.app.MpJNkW/XCTestWDUITests-Runner.app_sparse.ipa
MDMDirectoryDiff_block_invoke:1473 calling writeDictToFile with: /var/folders/pm/cw2vmzgx4fgbr69h7zl9fx1w0000gp/C/com.apple.DeveloperTools/All/Xcode/EmbeddedAppDeltas/XCTestWDUITests-Runner.app.MpJNkW/XCTestWDUITests-Runner.app_sparse.ipa/ManifestCache.plist
writeDictToFile:1278 ==== Successfully wrote Manifest cache to /var/folders/pm/cw2vmzgx4fgbr69h7zl9fx1w0000gp/C/com.apple.DeveloperTools/All/Xcode/EmbeddedAppDeltas/XCTestWDUITests-Runner.app.MpJNkW/XCTestWDUITests-Runner.app_sparse.ipa/ManifestCache.plist
2018-04-16 15:51:17.282802+0800 XCTestWDUITests-Runner[1989:456280] +[CATransaction synchronize] called within transaction
2018-04-16 15:51:17.499111+0800 XCTestWDUITests-Runner[1989:456280] Running tests...
2018-04-16 15:51:18.797476+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[CAMLightingControl accessibilityLabel]
2018-04-16 15:51:18.797842+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[CAMLightingControl accessibilityValue]
2018-04-16 15:51:18.797943+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[CAMLightingControl accessibilityTraits]
2018-04-16 15:51:18.798116+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[CAMLightingControl isAccessibilityElement]
2018-04-16 15:51:18.798203+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[CAMLightingControl accessibilityIncrement]
2018-04-16 15:51:18.798277+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[CAMLightingControl accessibilityDecrement]
2018-04-16 15:51:18.798354+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding +[CAMLightingControl safeCategoryBaseClass]
2018-04-16 15:51:18.798614+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[PHAsset accessibilityLabel]
2018-04-16 15:51:18.798698+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[PHAsset accessibilityValue]
2018-04-16 15:51:18.798766+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[PHAsset accessibilityTraits]
2018-04-16 15:51:18.799456+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding -[PHAsset _accessibilitySavePhotoLabel:]
2018-04-16 15:51:18.799583+0800 XCTestWDUITests-Runner[1989:456280] [AXValidations] UIAccessibility Error adding +[PHAsset safeCategoryBaseClass]
2018-04-16 15:51:18.841197+0800 XCTestWDUITests-Runner[1989:456280] Continuing to run tests in the background with task ID 1

Restarting after unexpected exit or crash in XCTextWDRunner/testRunner(); summary will include totals from previous launches.

Test Suite 'Selected tests' started at 2018-04-16 15:51:19.698
Test Suite 'XCTestWDUITests.xctest' started at 2018-04-16 15:51:19.701
Test Suite 'XCTestWDUITests.xctest' failed at 2018-04-16 15:51:19.702.
Executed 1 test, with 1 failure (0 unexpected) in 0.000 (0.001) seconds
Test Suite 'Selected tests' failed at 2018-04-16 15:51:19.704.
Executed 1 test, with 1 failure (0 unexpected) in 0.000 (0.006) seconds
** TEST FAILED **

我也是按照教程一步一步执行的,执行xcodebuild -project XCTestWD.xcodeproj -scheme XCTestWDUITests -destination 'platform=iOS,name=xxxx' XCTESTWD_PORT=8001 clean test时,报这个错误
writeDictToFile:1278 ==== Successfully wrote Manifest cache to /var/folders/70/5c415qt51rj208bd5c9yzhb00000gn/C/com.apple.DeveloperTools/All/Xcode/EmbeddedAppDeltas/2721498488b81f02aeaee4cd772b0522/4095ab2a6884d5522e1c8761ff31914b1ace6ab0/ManifestCache.plist
2018-04-19 11:48:47.898173+0800 XCTestWDUITests-Runner[584:30646] +[CATransaction synchronize] called within transaction
2018-04-19 11:48:48.006727+0800 XCTestWDUITests-Runner[584:30646] Running tests...
2018-04-19 11:48:49.847647+0800 XCTestWDUITests-Runner[584:30646] Continuing to run tests in the background with task ID 1
Test Suite 'All tests' started at 2018-04-19 11:48:50.782
Test Suite 'XCTestWDUITests.xctest' started at 2018-04-19 11:48:50.784
Test Suite 'XCTextWDRunner' started at 2018-04-19 11:48:50.785
Test Case '-[XCTestWDUITests.XCTextWDRunner testRunner]' started.
t = 0.00s Start Test at 2018-04-19 11:48:50.787
t = 0.09s Set Up
t = 0.13s Open com.PandaTV.Live-iPhone
t = 0.18s Launch com.PandaTV.Live-iPhone
t = 0.28s Assertion Failure: XCTestWDMonkey.swift:22: Failed to launch com.PandaTV.Live-iPhone: 未能完成该操作。Application "com.PandaTV.Live-iPhone" is unknown to FrontBoard.
t = 0.33s Tear Down
Test Case '-[XCTestWDUITests.XCTextWDRunner testRunner]' failed (0.327 seconds).
Test Suite 'XCTextWDRunner' failed at 2018-04-19 11:48:51.115.
Executed 1 test, with 1 failure (0 unexpected) in 0.327 (0.330) seconds
Test Suite 'XCTestWDUITests.xctest' failed at 2018-04-19 11:48:51.116.
Executed 1 test, with 1 failure (0 unexpected) in 0.327 (0.332) seconds
Test Suite 'All tests' failed at 2018-04-19 11:48:51.118.
Executed 1 test, with 1 failure (0 unexpected) in 0.327 (0.336) seconds
** TEST FAILED **

薛莹 回复

Failed to launch com.PandaTV.Live-iPhone 工程中貌似是运行熊猫直播的app,你把test文件中的bundleid改成自己的bundleid试试

不知道为什么swifter 只有改成1.4.0才能从github下载成功

51Floor has been deleted

还有github "cezheng/Fuzi" ~> 1.0.0

Requesting connecion to device handle == 30 (serial: 3850dd31d6b7c9972e3ed84563db3536d6aadfec), port 8001
Error connecting to device!

遇到了上面的错误,是按照大佬的流程走的,xcode9.3,

执行如下命令时,xcodebuild -project XCTestWD.xcodeproj \
-scheme XCTestWDUITests \
-destination 'platform=iOS,name=Na_iPhone' \
XCTESTWD_PORT=8001 \
clean test
出现:

使用serve模式,执行第二个命令行时报错

你好,我执行了xcodebuild -project XCTestWD.xcodeproj \
-scheme XCTestWDUITests \
-destination 'platform=iOS,name=(your device name)' \
XCTESTWD_PORT=8001 \
clean test 这一步就开始跑monkey了,是怎么回事呢?我的环境是xcode9.3,iOS11

King · #57 · August 01, 2018
Author only

fastmonkey提供了新的 ios 自动化monkey思路,值得学习,感谢楼主分享

直接在xcode运行XCTestWD可以运行,但是执行脚本报错:

Undefined symbols for architecture x86_64:
"_OBJC_CLASS_$_XCElementSnapshot", referenced from:
objc-class-ref in XCTestWDAccessibility.o
l__CATEGORY_XCElementSnapshot_$_XCTestWDUITests in XCTestWDAccessibility.o
objc-class-ref in XCTestWDApplicationTree.o
objc-class-ref in XCTestWDXPath.o
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use -v to see invocation)

我执行的脚本:

xcodebuild -project XCTestWD.xcodeproj \
-scheme XCTestWDUITests \
-destination 'platform=iOS Simulator,name=iPhone XR' \
XCTESTWD_PORT=8001 \
clean test

wangyankiko 回复

我也遇到你同样的错误,1、Error connecting to device!,2、curl: (56) Recv failure: Connection reset by peer
尴尬的是确实跑起来了。
还有一个问题:这个 monkey 脚本算是封装好了对吧?以后直接用?

Xcode10 跑完monkey会自动重新run 然后返回失败 但是app正常

bupo 回复

我也遇到了相同的问题……xcode 10.1


这个是什么原因呀 有人知道嘛

Tsn_09 回复

请问有解决办法了么。同XCode10.1

simple 专栏文章:[精华帖] 社区历年精华帖分类归总 中提及了此贴 13 Dec 14:44
Lee 回复

貌似代码又更新了,git pull后再试试……


Xcode版本是9.4,请问这个错误是什么原因呢

69Floor has been deleted
烟消云散 回复

你好,我遇到的这个问题是什么原因?
waiting for connection
accepted connection, fd = 4
waiting for connection
Number of available devices == 1
Requesting connecion to device handle == 5 (serial: 9cf965753efe71dc8cbe0fda27e2a425adb82762), port 8001
Error connecting to device!
accepted connection, fd = 4
waiting for connection
Number of available devices == 1
Requesting connecion to device handle == 5 (serial: 9cf965753efe71dc8cbe0fda27e2a425adb82762), port 8001
Error connecting to device!
accepted connection, fd = 4
waiting for connection
Number of available devices == 1
Requesting connecion to device handle == 5 (serial: 9cf965753efe71dc8cbe0fda27e2a425adb82762), port 8001
Error connecting to device!

71Floor has been deleted

xcode10.1,下载依赖包的时候出错:

在线求助!!!!!

需要 Sign In 后方可回复, 如果你还没有账号请点击这里 Sign Up
