性能测试工具实时监控性能测试

king.yu · 2017年05月17日 · 最后由 KD 回复于 2018年11月22日 · 3384 次阅读

本帖已被设为精华帖！

性能实时监控

工具列表

logstash : 日志解析与过滤
elasticsearch ：日志检索与存储
kibana ：日志实时查看
grafana ：前端报表展示
filebeat ：日志上传工具
dstat ：系统资源监控 (也可以采用 zabbix 监控)
jmxtrans ： jmx 监控
influxdb ：时序数据库（存储 jmx 数据）

监控指标

jmxtrans（GC 数据收集：jconsole->Mbean->java.lang->GarbageCollector 提取 ObjectName）
- HeapMemoryUsage
- NonHeapMemoryUsage
- CMS GC
- PreNew GC
dstat
- total-cpu-usage ： usr、sys、idl、wai、hiq、siq
- dsk/total ： read 、writ
- paging : in、out
- interrupts
- load-avg : 1m、5m、15m
- memory-usage : used、buff、cach、free
- net/total : recv、send
- procs : run、blk、new
- io/total : read、writ
- swap : used、free
- system : int、csw
tsung(tsung.log 的全部信息)
- request,page,session : 10sec_count, 10sec_mean, 10sec_stddev, max, min, mean, count
- size_sent,size_rcv,error : count(during the last 10sec), totalcount(since the beginning)

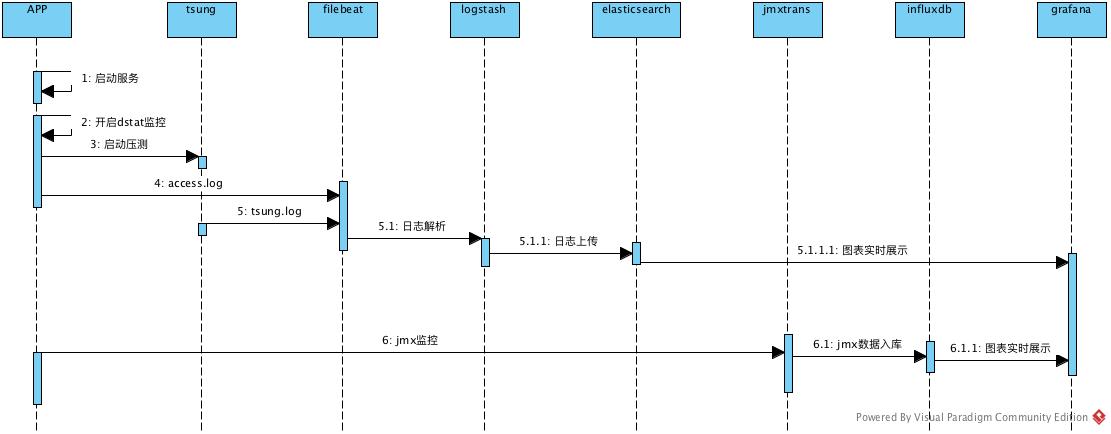

部署结构

elasticsearch

docker run --name myes  -p 9200:9200 -v /path/elasticsearch/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -d docker.elastic.co/elasticsearch/elasticsearch:5.4.0

如果是 rpm 包安装：

rpm -ivh elasticsearch.rpm
cp -r /etc/elasticsearch /usr/share/elasticsearch/config
groupadd elsearch
useradd elsearch -g elsearch -p elsearch
cd /usr/share
chown -R elsearch:elsearch elasticsearch
su elsearch
sudo -ichmod -R 775 config
bin/elasticsearch

kibana

docker run --name mykibana -v /path/kibana/kibana.yml:/usr/share/kibana/config/kibana.yml -p 5601:5601 -d docker.elastic.co/kibana/kibana:5.4.0

logstash

docker run --name mylogstash -v /path/pipeline/:/usr/share/logstash/pipeline/ -p 5044:5044 -e xpack.monitoring.enabled=false -d docker.elastic.co/logstash/logstash:5.4.0

vim /path/pipline/filebeat-pipline.conf

input {
  beats {
    port => 5044
  }
}

filter {
  if [type] == 'dstat'{
    csv{
      source => "message"
      columns => [ "cpu_usr","cpu_sys","cpu_idl","cpu_wai","cpu_hiq","cpu_siq","dsk_read","dsk_writ","paging_in","paging_out","interrupts_171","interrupts_172","interrupts_173","load_1m","load_5m","load_15m","memory_used","memory_buff","memory_cach","memory_free","net_recv","net_send","procs_run","procs_blk","procs_new","io_read","io_writ","swap_used","swap_free","system_int","system_csw"]
      convert => {  "cpu_usr" => "float"}
      convert => {  "cpu_sys" => "float"}
      convert => {  "cpu_idl" => "float"}
      convert => {  "cpu_wai" => "float"}
      convert => {  "cpu_hiq" => "float"}
      convert => {  "cpu_siq" => "float"}
      convert => {  "dsk_read" => "float"}
      convert => {  "dsk_writ" => "float"}
      convert => {  "paging_in" => "float"}
      convert => {  "paging_out" => "float"}
      convert => {  "interrupts_171" => "float"}
      convert => {  "interrupts_172" => "float"}
      convert => {  "interrupts_173" => "float"}
      convert => {  "load_1m" => "float"}
      convert => {  "load_5m" => "float"}
      convert => {  "load_15m" => "float"}
      convert => {  "memory_used" => "float"}
      convert => {  "memory_buff" => "float"}
      convert => {  "memory_cach" => "float"}
      convert => {  "memory_free" => "float"}
      convert => {  "net_recv" => "float"}
      convert => {  "net_send" => "float"}
      convert => {  "procs_run" => "float"}
      convert => {  "procs_blk" => "float"}
      convert => {  "procs_new" => "float"}
      convert => {  "io_read" => "float"}
      convert => {  "io_writ" => "float"}
      convert => {  "swap_used" => "float"}
      convert => {  "swap_free" => "float"}
      convert => {  "system_int" => "float"}
      convert => {  "system_csw" => "float"}
    }
  }else if [type] == 'tsung'{
    if [message] =~ "dump "{
       grok {
            match => { "message" => "[# stats]\:%{SPACE}[dump]+%{SPACE}%{USERNAME:at}%{SPACE}%{BASE10NUM:dump_time}"}
       }
       mutate {
         convert => { "dump_time" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "cpu"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[{cpu,]+%{SPACE}%{DATA}"}
       }
    }else if [message] =~ "load"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[{load,]+%{SPACE}%{DATA}"}
       }
    }else if [message] =~ "freemem"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[{freemem,]+%{SPACE}%{DATA}"}
       }
    }else if [message] =~ "page"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[page]+%{SPACE}%{BASE10NUM:page_10sec_count}%{SPACE}%{BASE16FLOAT:page_10sec_mean}%{SPACE}%{BASE16FLOAT:page_10sec_stddev}%{SPACE}%{BASE16FLOAT:page_max}%{SPACE}%{BASE16FLOAT:page_min}%{SPACE}%{BASE16FLOAT:page_mean}%{SPACE}%{BASE16FLOAT:page_count}"}
       }
       mutate {
         convert => { "page_10sec_count" => "integer" }
         convert => { "page_10sec_mean" => "integer" }
         convert => { "page_10sec_stddev" => "integer" }
         convert => { "page_max" => "integer" }
         convert => { "page_min" => "integer" }
         convert => { "page_mean" => "integer" }
         convert => { "page_count" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "request"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[request]+%{SPACE}%{BASE10NUM:request_10sec_count}%{SPACE}%{BASE16FLOAT:request_10sec_mean}%{SPACE}%{BASE16FLOAT:request_10sec_stddev}%{SPACE}%{BASE16FLOAT:request_max}%{SPACE}%{BASE16FLOAT:request_min}%{SPACE}%{BASE16FLOAT:request_mean}%{SPACE}%{BASE16FLOAT:request_count}"}
       }
       mutate {
         convert => { "request_10sec_count" => "integer" }
         convert => { "request_10sec_mean" => "integer" }
         convert => { "request_10sec_stddev" => "integer" }
         convert => { "request_max" => "integer" }
         convert => { "request_min" => "integer" }
         convert => { "request_mean" => "integer" }
         convert => { "request_count" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "size_rcv"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[size_rcv]+%{SPACE}%{BASE10NUM:size_rcv_last_10sec}%{SPACE}%{BASE10NUM:size_rcv_totalcount}"}
       }
       mutate {
         convert => { "size_rcv_last_10sec" => "integer" }
         convert => { "size_rcv_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "size_sent"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[size_sent]+%{SPACE}%{BASE10NUM:size_sent_last_10sec}%{SPACE}%{BASE10NUM:size_sent_totalcount}"}
       }
       mutate {
         convert => { "size_sent_last_10sec" => "integer" }
         convert => { "size_sent_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "error_connect_etimedout"{
       grok {
            match => { "message" => "[stats]\:%{SPACE}[error_connect_etimedout]+%{SPACE}%{BASE10NUM:error_connect_etimedout_last_10sec}%{SPACE}%{BASE10NUM:error_connect_etimedout_totalcount}"}
       }
       mutate {
         convert => { "error_connect_etimedout_last_10sec" => "integer" }
         convert => { "error_connect_etimedout_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "connected"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[connected]+%{SPACE}%{BASE10NUM:connected_last_10sec}%{SPACE}%{BASE10NUM:connecte_totalcount}"}
       }
       mutate {
         convert => { "connected_last_10sec" => "integer" }
         convert => { "connecte_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "connect"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[connect]+%{SPACE}%{BASE10NUM:connect_10sec_count}%{SPACE}%{BASE16FLOAT:connect_10sec_mean}%{SPACE}%{BASE16FLOAT:connect_10sec_stddev}%{SPACE}%{BASE16FLOAT:connect_max}%{SPACE}%{BASE16FLOAT:connect_min}%{SPACE}%{BASE16FLOAT:connect_mean}%{SPACE}%{BASE16FLOAT:connect_count}"}
       }
       mutate {
         convert => { "connect_10sec_count" => "integer" }
         convert => { "connect_10sec_mean" => "integer" }
         convert => { "connect_10sec_stddev" => "integer" }
         convert => { "connect_max" => "integer" }
         convert => { "connect_min" => "integer" }
         convert => { "connect_mean" => "integer" }
         convert => { "connect_count" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "finish_users_count"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[finish_users_count]+%{SPACE}%{BASE10NUM:finish_users_count_last_10sec}%{SPACE}%{BASE10NUM:finish_users_count_totalcount}"}
       }
       mutate {
         convert => { "finish_users_count_last_10sec" => "integer" }
         convert => { "finish_users_count_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "users_count"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[users_count]+%{SPACE}%{BASE10NUM:users_count_last_10sec}%{SPACE}%{BASE10NUM:users_count_totalcount}"}
       }
       mutate {
         convert => { "users_count_last_10sec" => "integer" }
         convert => { "users_count_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }else if [message] =~ "users"{
       grok {
            match => { "message" => "%{USERNAME:stats}\:%{SPACE}[users]+%{SPACE}%{BASE10NUM:user_last_10sec}%{SPACE}%{BASE10NUM:user_totalcount}"}
       }
       mutate {
         convert => { "user_last_10sec" => "integer" }
         convert => { "user_totalcount" => "integer" }
         remove_field => [ "SPACE" ]
       }
    }
  }
}

output {
  elasticsearch {
    hosts => "host:port"
    user => elastic
    password => changeme
  }
}

grafana

docker run --name grafana -p 3000:3000 -v /etc/localtime:/etc/localtime:ro -v /opt/docker_v/grafana/var/lib/garfana:/var/lib/grafana -d  grafana/grafana

filebeat

rpm -ivh filebeat-5.4.0-x86_64.rpm

vim /etc/filebeat/filebeat.yml

- input_type: log
  paths:
    - /path/dstat*.csv
  document_type: dstat
  exclude_lines: ['Dstat','Author','Host','Cmdline','total','usr']

#output.elasticsearch:
  # Array of hosts to connect to.
  # hosts: ["http://host:port"]

#----------------------------- Logstash output --------------------------------
output.logstash:
  # The Logstash hosts
  hosts: ["host:port"]

sh filebeat.sh -e -c /etc/filebeat/filebeat.yml -d "Publish"

influxdb

yum localinstall influxdb-1.2.2.x86_64.rpm

jmxtrans

rpm -i jmxtrans-265.rpm

vim /var/lib/xx.json

{
    "servers": [
        {
            "port": "port",
            "host": "host",
            "queries": [
                {
                    "obj": "java.lang:type=GarbageCollector,name=PS MarkSweep",
                    "attr": [
                        "CollectionCount",
                        "CollectionTime"
                    ],
                    "resultAlias": "GarbageCollector_PS_MarkSweep",
                    "outputWriters": [
                        {
                            "@class": "com.googlecode.jmxtrans.model.output.InfluxDbWriterFactory",
                            "url": "http://host:port/",
                            "username": "root",
                            "password": "root",
                            "database": "jmxdb"
                        }
                    ]
                },
                {
                    "obj": "java.lang:type=GarbageCollector,name=PS Scavenge",
                    "attr": [
                        "CollectionCount",
                        "CollectionTime"
                    ],
                    "resultAlias": "GarbageCollector_PS_Scavenge",
                    "outputWriters": [
                        {
                            "@class": "com.googlecode.jmxtrans.model.output.InfluxDbWriterFactory",
                            "url": "http://host:port/",
                            "username": "root",
                            "password": "root",
                            "database": "jmxdb"
                        }
                    ]
                },
                {
                    "obj": "java.lang:type=Memory",
                    "attr": [
                        "HeapMemoryUsage",
                        "NonHeapMemoryUsage"
                    ],
                    "resultAlias": "JVM_Memory",
                    "outputWriters": [
                        {
                            "@class": "com.googlecode.jmxtrans.model.output.InfluxDbWriterFactory",
                            "url": "http://host:port/",
                            "username": "root",
                            "password": "root",
                            "database": "jmxdb"
                        }
                    ]
                },
                {
                    "obj": "java.lang:type=ClassLoading",
                    "attr": [
                        "TotalLoadedClassCount",
                        "LoadedClassCount",
                        "UnloadedClassCount"
                    ],
                    "resultAlias": "JVM_ClassLoading",
                    "outputWriters": [
                        {
                            "@class": "com.googlecode.jmxtrans.model.output.InfluxDbWriterFactory",
                            "url": "http://host:port/",
                            "username": "root",
                            "password": "root",
                            "database": "jmxdb"
                        }
                    ]
                }
            ]
        }
    ]
}

/usr/share/jmxtrans/bin/jmxtrans start

dstat

dstat -cdgilmnprsy --nocolor --noheaders --float --output /path/logs/"dstat-"`date "+%Y_%m_%d_%H_%M_%S"`".csv"  5

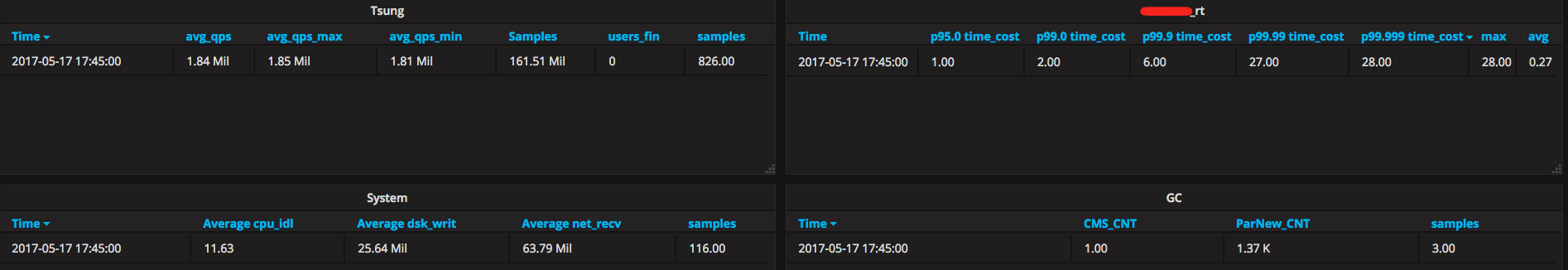

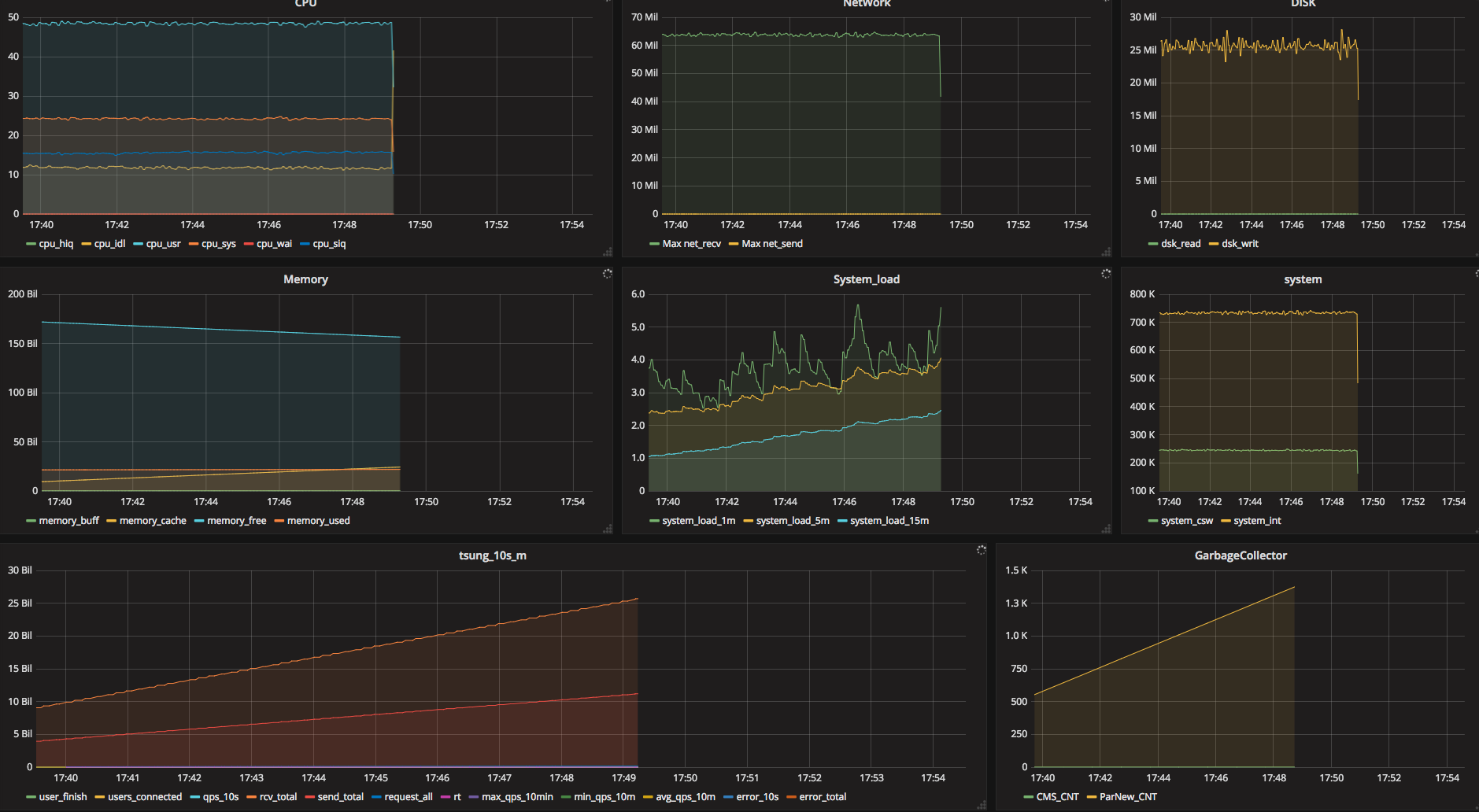

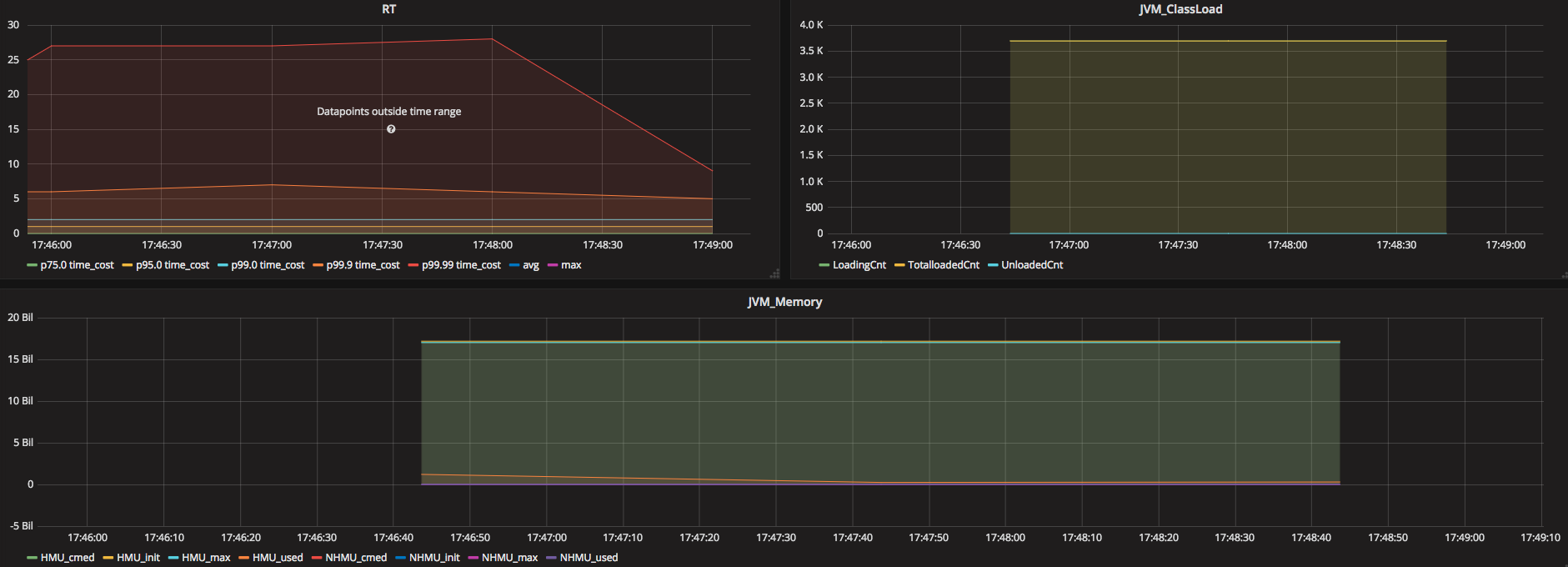

页面展示
