技术栈

node.js, vue.js, axios, python, django, orm, restful api, djangorestframework, mysql, nginx, jenkins.

环境配置

操作系统

Windows 7 旗舰版,Service Pack 1。

前端

Node.js

>node -v
v12.18.0
>npm -v
6.14.4

Vue.js

>vue -V(大写)
@vue/cli 4.4.1

后端

Python

>python --version
Python 3.7.2

Django

>python -m django --version
3.0.7

数据库

MySQL

>mysqladmin --version
mysqladmin Ver 8.0.19 for Win64 on x86_64 (MySQL Community Server - GPL)

命令行登录mysql,

>mysql -u root -p
Enter password: ******

查询数据库,

mysql> show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| mysql |
| new_schema |
| performance_schema |
| sakila |
| sys |
| world |
+--------------------+
7 rows in set (0.00 sec)

代理

Nginx

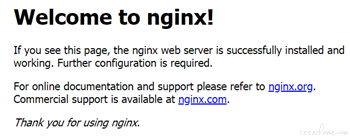

在nginx安装目录执行start nginx,浏览器访问http://localhost:80

持续集成

Jenkins

安装后,会自动打开http://localhost:8080/

软件安装过程就不赘述了,聪明的你一定知道怎么安。

项目搭建

本文的目的是走通整个项目的链路,于是会“弱化”掉系统功能的实现。

创建后端工程

执行django-admin startproject djangotest创建项目。
cd djangotest,执行python manage.py startapp myapp创建应用。

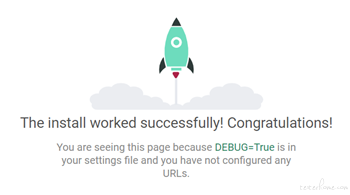

python manage.py runserver,启动服务,访问http://localhost:8000/

创建RESTful API

安装mysqlclient和djangorestframework,

pip --default-timeout=6000 install -i https://pypi.tuna.tsinghua.edu.cn/simple mysqlclient
pip --default-timeout=6000 install -i https://pypi.tuna.tsinghua.edu.cn/simple djangorestframework

在settings.py中,添加'rest_framework'和'myapp',

INSTALLED_APPS = [
'django.contrib.admin',
'django.contrib.auth',
'django.contrib.contenttypes',
'django.contrib.sessions',
'django.contrib.messages',
'django.contrib.staticfiles',

'rest_framework',

'myapp',
]

同时修改数据库配置,

DATABASES = {
'default': {
'ENGINE': 'django.db.backends.mysql',
'HOST': '127.0.0.1',
'PORT': 3306,
'NAME': 'world',
'USER': 'root',
'PASSWORD': '123456'
}
}

在myapp\models.py添加model,model叫做HellloDjango,有2个字段id和name,

from django.db import models

# Create your models here.


class HelloDjango(models.Model):
id = models.AutoField(primary_key=True)
name = models.CharField(null=False, max_length=64, unique=True)

执行python manage.py makemigrations,提交,

>python manage.py makemigrations
Migrations for 'myapp':
myapp\migrations\0001_initial.py
- Create model HelloDjango

执行python manage.py migrate,创建,

>python manage.py migrate
Operations to perform:
Apply all migrations: admin, auth, contenttypes, myapp, sessions
Running migrations:
Applying contenttypes.0001_initial... OK
Applying auth.0001_initial... OK
Applying admin.0001_initial... OK
Applying admin.0002_logentry_remove_auto_add... OK
Applying admin.0003_logentry_add_action_flag_choices... OK
Applying contenttypes.0002_remove_content_type_name... OK
Applying auth.0002_alter_permission_name_max_length... OK
Applying auth.0003_alter_user_email_max_length... OK
Applying auth.0004_alter_user_username_opts... OK
Applying auth.0005_alter_user_last_login_null... OK
Applying auth.0006_require_contenttypes_0002... OK
Applying auth.0007_alter_validators_add_error_messages... OK
Applying auth.0008_alter_user_username_max_length... OK
Applying auth.0009_alter_user_last_name_max_length... OK
Applying auth.0010_alter_group_name_max_length... OK
Applying auth.0011_update_proxy_permissions... OK
Applying myapp.0001_initial... OK
Applying sessions.0001_initial... OK

看看数据库,新增了auth_和django_开头的表,以及model映射的表myapp_hellodjango,

mysql> show tables;
+----------------------------+
| Tables_in_world |
+----------------------------+
| auth_group |
| auth_group_permissions |
| auth_permission |
| auth_user |
| auth_user_groups |
| auth_user_user_permissions |
| city |
| country |
| countrylanguage |
| django_admin_log |
| django_content_type |
| django_migrations |
| django_session |
| myapp_hellodjango |
+----------------------------+
14 rows in set (0.00 sec)

插入2条测试数据,

mysql> insert into myapp_hellodjango(name) values('hello');
Query OK, 1 row affected (0.09 sec)

mysql> insert into myapp_hellodjango(name) values('django');
Query OK, 1 row affected (0.20 sec)

mysql> select * from myapp_hellodjango;
+----+--------+
| id | name |
+----+--------+
| 2 | django |
| 1 | hello |
+----+--------+
2 rows in set (0.00 sec)

照着官网的例子,在myapp目录下新增urls.py,添加rest代码,

from django.conf.urls import url, include
from rest_framework import routers, serializers, viewsets

from .models import HelloDjango


# Serializers define the API representation.
class HelloSerializer(serializers.HyperlinkedModelSerializer):
class Meta:
model = HelloDjango
fields = ['id', 'name']


# ViewSets define the view behavior.
class HelloViewSet(viewsets.ModelViewSet):
queryset = HelloDjango.objects.all()
serializer_class = HelloSerializer


# Routers provide an easy way of automatically determining the URL conf.
router = routers.DefaultRouter()
router.register(r'hello', HelloViewSet)

urlpatterns = [
url(r'demo/', include(router.urls)),
]

在djangotest下的urls.py中添加路由,

from django.contrib import admin
from django.urls import path, include

urlpatterns = [
path('admin/', admin.site.urls),
path('api/', include('myapp.urls'))
]

通过这2个urls.py文件的指定,api接口的路径为,/api/demo/hello。
执行python manage.py runserver启动服务,使用postman来调用http://127.0.0.1:8000/api/demo/hello/

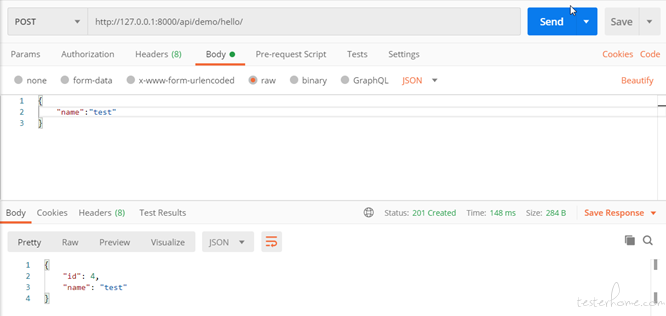

先发1个post请求,往数据库新增1条数据,

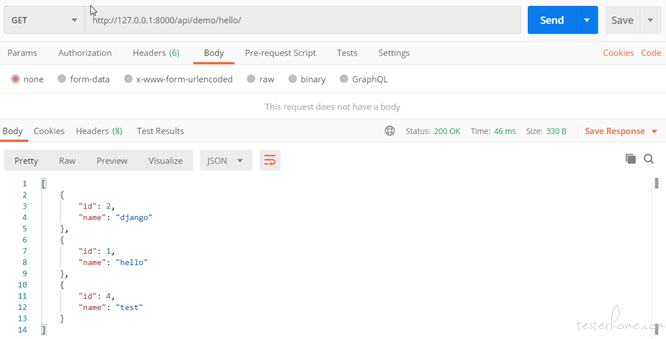

再发1个get请求,会看到返回了3条数据,2条预先插入的数据,1条post请求新增的数据,

创建前端工程

在djangotest根目录下,执行vue create vuetest,创建vue工程。
默认安装,一路回车,啪啪啪。
开始创建,

Vue CLI v4.4.1
a Creating project in D:\cicd\vuetest.
a Initializing git repository...
aa Installing CLI plugins. This might take a while...

创建成功,

a  Successfully created project vuetest.
a Get started with the following commands:

$ cd vuetest
$ npm run serve

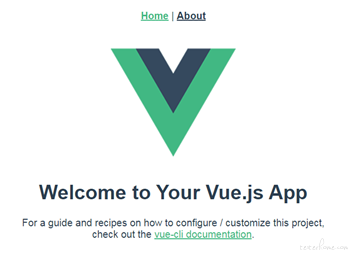

执行cd vuetestnpm run serve,前端工程就启动起来了,访问http://localhost:8080/
Welcome to Your Vue.js App,

前端调后端接口

此时djangotest的目录结构为,

├─djangotest
├─djangotest
├─myapp # app
├─vuetest # 前端
├─manage.py

修改vuetest\src\components\HelloWorld.vue,添加{{info}},用来展示后端api返回的数据,

<div class="hello">
{{info}}
<h1>{{ msg }}</h1>

同时在<script>中使用axios添加ajax请求,请求http://127.0.0.1:8000/api/demo/hello/
将response.data赋值给info,

<script>
export default {
name: 'HelloWorld',
props: {
msg: String
},
data() {
return {
info: 123
}
},
mounted () {
this.$axios
.get('http://127.0.0.1:8000/api/demo/hello/')
.then(response => (this.info = response.data))
.catch(function (error) { // 请求失败处理
console.log(error);
});
}
}
</script>

为了运行起来,需要安装axios,

npm install --save axios

并在vuetest\src\main.js中引入,

import Vue from 'vue'
import App from './App.vue'
import axios from 'axios'

Vue.config.productionTip = false

Vue.prototype.$axios = axios;

new Vue({
render: h => h(App)
}).$mount('#app')

分别启动后端和前端服务,

python manage.py runserver
cd vuetest
npm run serve

嚯!ajax请求失败了,F12可以看到报错信息,
localhost/:1 Access to XMLHttpRequest at 'http://127.0.0.1:8000/api/demo/hello/' from origin 'http://localhost:8080' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource.
django的端口是8000,vue的端口是8080,vue在请求django的时候,出现了跨域问题。浏览器有个同源策略,域名+端口+协议都相同才认为是同一来源。
通过配置django来解决,先安装django-cors-headers,

pip install django-cors-headers

在settings.py中添加中间件和开关,

MIDDLEWARE = [
'django.middleware.security.SecurityMiddleware',
'django.contrib.sessions.middleware.SessionMiddleware',
'corsheaders.middleware.CorsMiddleware', # 添加
'django.middleware.common.CommonMiddleware',
'django.middleware.csrf.CsrfViewMiddleware',
'django.contrib.auth.middleware.AuthenticationMiddleware',
'django.contrib.messages.middleware.MessageMiddleware',
'django.middleware.clickjacking.XFrameOptionsMiddleware',
]

CORS_ORIGIN_ALLOW_ALL = True # 添加

此时vue就可以请求到django提供的接口了,http://localhost:8080/

前后端结合

vuetest目录下创建vue.config.js,这是因为django只能识别static目录下的静态文件,这里指定vue生成静态文件时套一层static目录,

module.exports = {
assetsDir: 'static'
};

在vuetest目录下执行npm run build,生成静态文件到vuetest/dist文件夹。

修改urls.py,指定django的模板视图,

from django.conf.urls import url
from django.contrib import admin
from django.urls import path, include
from django.views.generic import TemplateView

urlpatterns = [
path('admin/', admin.site.urls),
path('api/', include('myapp.urls')),
url(r'^$', TemplateView.as_view(template_name="index.html")),
]

在settings.py中配置模板目录为dist文件夹,

TEMPLATES = [
{
'BACKEND': 'django.template.backends.django.DjangoTemplates',
'DIRS': ['vuetest/dist'],
'APP_DIRS': True,
'OPTIONS': {
'context_processors': [
'django.template.context_processors.debug',
'django.template.context_processors.request',
'django.contrib.auth.context_processors.auth',
'django.contrib.messages.context_processors.messages',
],
},
},
]

指定静态文件目录为vuetest/dist/static,

# Add for vuejs
STATICFILES_DIRS = [
os.path.join(BASE_DIR, "vuetest/dist/static"),
]

浏览器访问http://localhost:8000/
显示的不再是django的欢迎页面,而是vue的页面。
前后端结合完成。vue的8080可以停了。

Nginx转发

nginx常用3个命令,启动,重新加载,停止,

nginx start
nginx -s reload
nginx -s stop

修改\conf\nginx.conf,监听端口改为8090,添加转发proxy_pass http://localhost:8000;

server {
listen 8090;
server_name localhost;

#charset koi8-r;

#access_log logs/host.access.log main;

location / {
root html;
index index.html index.htm;
proxy_pass http://localhost:8000;
}

执行nginx start,浏览器访问http://localhost:8090/
也能正常访问djangotest。
通过nginx将8090转发到了8000。

持续集成

本来想弄个pipline的,无奈家里这台破机器安装失败,windows也没有linux对jenkins支持好,只能将就做个鸡肋版本。

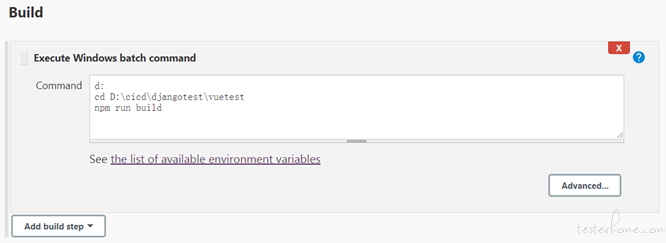

New Item,命名为vuetest,添加vue的build脚本,

d:
cd D:\cicd\djangotest\vuetest
npm run build

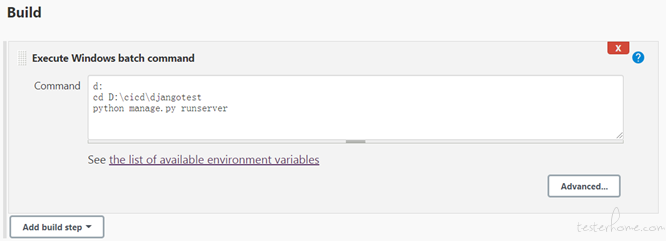

New Item,命名为djangotest,添加django的build脚本,

d:
cd D:\cicd\djangotest
python manage.py runserver

直接执行会报错python不是可运行命令。添加python环境变量,在首页左下角,

把路径D:\Python37添加为环境变量path并保存,

建好的这2个job就可以用来编译vue和启动django了,

版权申明:本文为博主原创文章,转载请保留原文链接及作者。
如果您喜欢我写的文章,请关注公众号支持一下,谢谢哈哈哈。
