接上篇，公司里测试需要有一些 AI 相关产出和落地情况，然后测试自己开始做工具（造轮子），经过多个工作日空闲时间的努力，写出了一个基于 pdf、图片的测试用例生成（按概率随机）工具 V1.0。以下是基于后端业务实现，由于已更新到 V1.1，本片代码基于 V1.1 实现。

1、V1.1 版本工作原理（能用就行原理）

2、从 V1.0 到 V1.1 前后过程

V1.0 版本，图片需要先进行 OCR 识别提取文字，再调用文本模型，期间会出现识别误差，V1.1 改为使用 qwen-vl-plus 模型。测试进行~~技术调研~~（一切皆可 AI），如果使用多模态模型，图片需要公网访问，然后参考了市面上常见（免费送存储空间）的腾讯 COS 对象存储服务，进行文件存储，本地数据库存储文件属性（文件 ID，文件名称、文件公网 url、文件下载 URL、创建时间），只需要在调用模型时查数据库获取图片的公网 URL，即可实现开放的多模态接口。
文档类型的文件，秉持~~快速迭代~~（能不改就不改）原则，沿用了 V1.0 的流程，文件本地服务器进行交互，最终方案被提小建议，文件信息需要入库，方便溯源，觉得挺有道理，V1.1 遂实现文件数据（文件名称、fileId、文件下载 URL、创建时间）入库。
前端交互优化：
1. V1.0 进行文件操作时，每次提交 promot 操作都需要先上传文件，再生成 xmind 测试用例。
2. V1.1 只需上传一次文件，如果需要修改 promot，直接提交 promot，文件不需要再次上传。
3. V1.0 前端页面生成 xmind 文件后，无法在线预览，必须先下载再本地打开。
4. V1.1 前端页面新增 xmind 预览组件，生成 xmind 文件后，可以在线预览，返回的数据不满足可以多次生成和预览。
业务接口：
1. 文件处理：

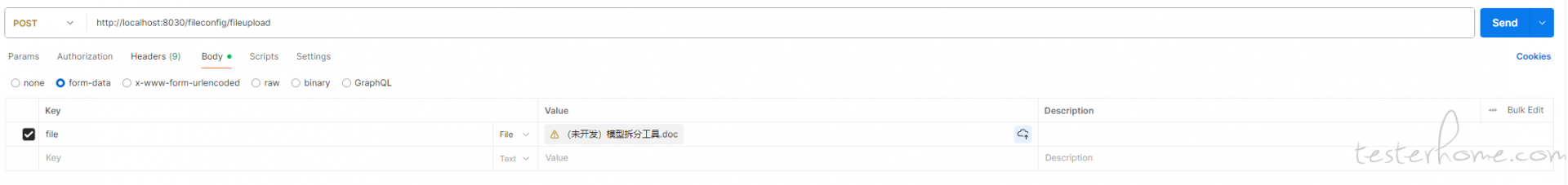

2. 文件上传，入库文件 ID、文件名称,千问的 qwen-long 模型存储 doc、docx 时调这个接口： http://localhost:8028/fileconfig/fileupload

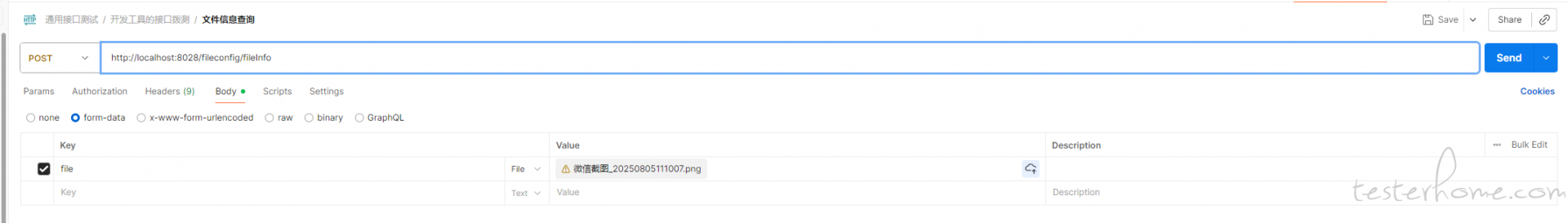

3. 获取文件信息： http://localhost:8028/fileconfig/fileInfo
4. 测试点生成：

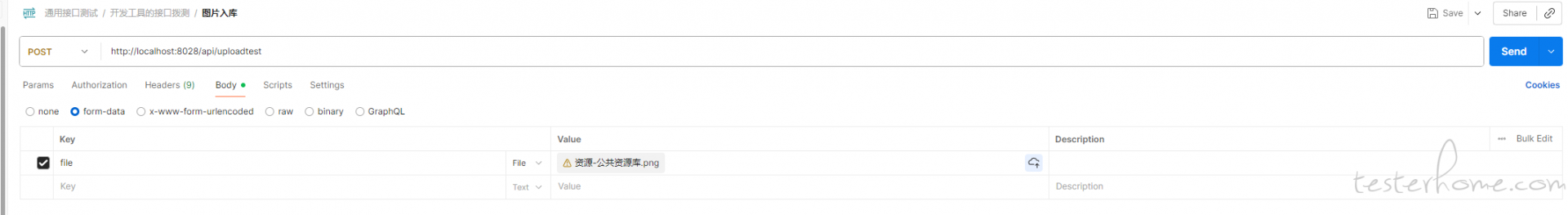

5. 图片上传到腾讯 COS：http://localhost:8028/api/uploadtest

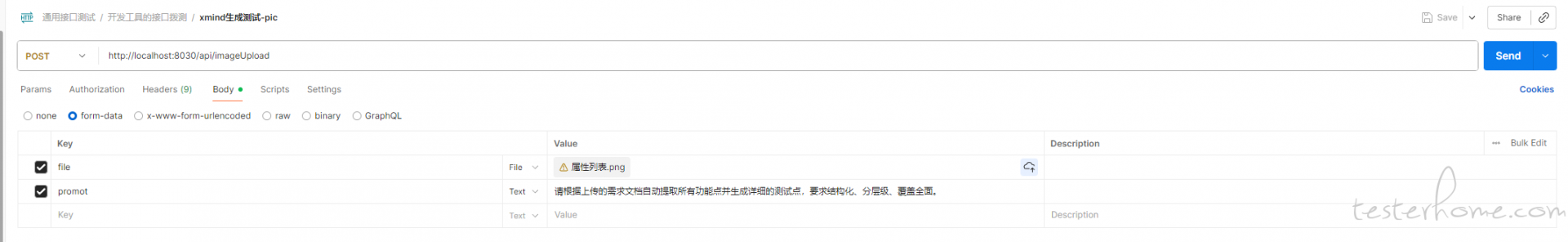

6. 图片生成 xmind 测试点：http://localhost:8028/api/imageUpload

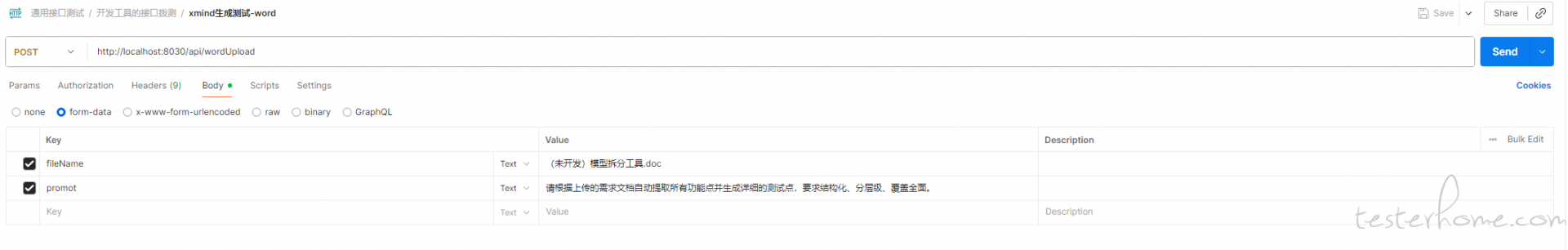

7. 文档生成 xmind 测试点：http://localhost:8028/api/wordUpload

springBoot 配置文件 application-dev.yml

 server:
  port: 8028

shared:
  resource:
    capacity: 500

spring:
  application:
    name: xlxz
  web:
    resources:
      static-locations: classpath:/templates/
      add-mappings: true
datasource:
    # 添加默认数据源配置
    jdbc-url: jdbc:mysql://XXXX:3306/web_database?useSSL=false&serverTimezone=UTC
    username: XXXX
    password: XXXX
    driver-class-name: com.mysql.cj.jdbc.Driver
    hikari:
      maximum-pool-size: 10
      minimum-idle: 5
      idle-timeout: 300000
      connection-timeout: 20000

  # Thymeleaf配置
  thymeleaf:
    cache: false
    prefix: classpath:/templates/
    suffix: .html
    mode: HTML

  servlet:
    multipart:
      max-file-size: 10MB
      max-request-size: 10MB

# 日志配置
logging:
  level:
    com:
      community:
        sqlapp: DEBUG
    org:
      springframework:
        jdbc:
          core: DEBUG

# 千问API配置 (请替换为实际的API密钥)
qianwen:
  api:
    url: https://dashscope.aliyuncs.com/api/v1/services/aigc/text-generation/generation
    key: (自己申请)
    model: qwen-turbo

qianwenvl:
  vlapi:
    vlurl: https://dashscope.aliyuncs.com/compatible-mode/v1/chat/completions
    qianwenlongurl: https://dashscope.aliyuncs.com/compatible-mode/v1/files
    qwenlongurl: https://dashscope.aliyuncs.com/api/v1/services/aigc/text-generation/generation
    vlkey:  (自己申请)
    vlmodel: qwen-vl-plus

# MyBatis配置
mybatis:
  mapper-locations: classpath:mapping/*.xml
  type-aliases-package: com.community.sqlapp.entity

#腾讯COS对象存储配置
tencent:
  cos:
    secretid:   (自己申请)
    secretkey:  (自己申请)
    region:  (自己申请)
    bucketname:  (自己申请)   # 格式：<bucketName>-<appId>
    cosurl: https://<bucketName>-<appId>.cos.region.myqcloud.com

springBoot 依赖 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.0</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.microDynamic</groupId>
    <artifactId>microDynamic</artifactId>
    <!--<version>0.0.1-SNAPSHOT</version>-->
    <name>microDynamic</name>
    <description>microDynamic</description>
    <properties>
        <java.version>17</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>

        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <version>9.1.0</version>
        </dependency>

        <!--xmind解析 -->
        <!-- https://mvnrepository.com/artifact/org.apache.logging.log4j/log4j-core -->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.17.1</version> <!-- 确保版本 >= 2.11.0 -->
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.17.1</version> <!-- 确保版本 >= 2.11.0 -->
        </dependency>
        <!--xmind解析poi -->
        <!--xpath不加这个依赖会报错-->
        <dependency>
            <groupId>com.github.eljah</groupId>
            <artifactId>xmindjbehaveplugin</artifactId>
            <version>0.8</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba/dashscope-sdk-java -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dashscope-sdk-java</artifactId>
            <version>2.18.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-scratchpad</artifactId>
            <version>5.2.3</version>
        </dependency>
        <dependency>
            <groupId>com.qcloud</groupId>
            <artifactId>cos_api</artifactId>
            <version>5.6.54</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.openai/openai-java -->
        <dependency>
            <groupId>com.openai</groupId>
            <artifactId>openai-java</artifactId>
            <version>2.12.0</version>
        </dependency>
        <!-- JSON解析 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.47</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.16.1</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.16.1</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
        </dependency>

        <!-- XML处理 -->
        <dependency>
            <groupId>org.dom4j</groupId>
            <artifactId>dom4j</artifactId>
            <version>2.1.3</version>
        </dependency>
        <!-- ZIP压缩 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-compress</artifactId>
            <version>1.21</version>
        </dependency>

        <dependency>
            <groupId>io.github.bonigarcia</groupId>
            <artifactId>webdrivermanager</artifactId>
            <version>3.0.0</version>
        </dependency>

        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>${aspectj.version}</version>
        </dependency>
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.1</version>
        </dependency>

        <!--文件操作依赖包-->
        <dependency>
            <groupId>net.sourceforge.javacsv</groupId>
            <artifactId>javacsv</artifactId>
            <version>2.0</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.11.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpmime</artifactId>
            <version>4.5.8</version> <!-- 你也可以使用 4.5.13 或 4.5.14 等新版本 -->
        </dependency>
        <!--   读写Excel文件依赖     -->
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi</artifactId>
            <version>5.2.3</version>
        </dependency>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml</artifactId>
            <version>5.2.3</version>
        </dependency>
        <!-- Spark Core -->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_${scala.binary.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <!--工具类-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.7.3</version>
        </dependency>

        <dependency>
            <groupId>com.squareup.okhttp3</groupId>
            <artifactId>okhttp</artifactId>
            <version>4.9.3</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib</artifactId>
            <version>3.3.0</version>
        </dependency>

        <dependency>
            <groupId>org.assertj</groupId>
            <artifactId>assertj-core</artifactId>
        </dependency>

        <dependency>
            <groupId>org.jdom</groupId>
            <artifactId>jdom</artifactId>
            <version>1.1.3</version>
        </dependency>

        <dependency>
            <groupId>org.jsoup</groupId>
            <artifactId>jsoup</artifactId>
            <version>1.14.3</version> <!-- 请根据实际情况选择合适的版本 -->
        </dependency>
    </dependencies>

    <build>
        <finalName>microDynamic</finalName>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>false</filtering>
                <excludes>
                    <exclude>**/*.txt</exclude>
                </excludes>
            </resource>

        </resources>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>11</source>
                    <target>11</target>
                </configuration>
            </plugin>

            <plugin>
                <artifactId> maven-assembly-plugin </artifactId>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <archive>
                        <manifest>
                            <mainClass>com.testlink.Excel2XMLUI</mainClass>
                        </manifest>
                    </archive>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

https 连接类 QwenHttpClientUtil.java

import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

import java.io.IOException;

@Component
public class QwenHttpClientUtil {
    // 从配置文件读取key、apiurl等信息，避免硬编码
    @Value("${qianwenvl.vlapi.vlkey}")
    private String dashscopeApiKey;
    @Value("${qianwenvl.vlapi.vlurl}")
    private String dashscopeApiUrl;
    @Value("${qianwenvl.vlapi.qwenlongurl}")
    private String dashscopeqwenlongurl;
    /**
     * 千问vl大模型
     * @param jsonBody
     * @return
     * @throws IOException
     */
    public String sendPostRequest(String jsonBody) throws IOException {
        CloseableHttpClient httpClient = HttpClients.createDefault();
        HttpPost httpPost = new HttpPost(dashscopeApiUrl);

        // 设置请求头
        httpPost.setHeader("Authorization", "Bearer " + dashscopeApiKey);
        httpPost.setHeader("Content-Type", "application/json");

        // 设置请求体
        httpPost.setEntity(new StringEntity(jsonBody, "UTF-8"));

        try (CloseableHttpResponse response = httpClient.execute(httpPost)) {
            return EntityUtils.toString(response.getEntity());
        } finally {
            httpClient.close();
        }
    }

    /**
     * 千问long大模型
     * @param jsonBody
     * @return
     * @throws IOException
     */
    public String sendGetLongRequest(String jsonBody) throws IOException {
        CloseableHttpClient httpClient = HttpClients.createDefault();
        HttpPost httpPost = new HttpPost(dashscopeqwenlongurl);

        // 设置请求头
        httpPost.setHeader("Authorization", "Bearer " + dashscopeApiKey);
        httpPost.setHeader("Content-Type", "application/json");

        // 设置请求体
        httpPost.setEntity(new StringEntity(jsonBody, "UTF-8"));

        try (CloseableHttpResponse response = httpClient.execute(httpPost)) {
            return EntityUtils.toString(response.getEntity());
        } finally {
            httpClient.close();
        }
    }
}

腾讯 COS 对象存储工具类 TencentCosUtil.java

import com.qcloud.cos.COSClient;
import com.qcloud.cos.ClientConfig;
import com.qcloud.cos.auth.BasicCOSCredentials;
import com.qcloud.cos.auth.COSCredentials;
import com.qcloud.cos.http.HttpProtocol;
import com.qcloud.cos.region.Region;
import com.qcloud.cos.model.PutObjectRequest;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.io.File;

@Configuration
public class TencentCosUtil {

    @Value("${tencent.cos.secretid}")
    private String secretId;
    @Value("${tencent.cos.secretkey}")
    private String secretKey;
    @Value("${tencent.cos.region}")
    private String region;

    /**
     * 调用静态方法getCosClient()就会获得COSClient实例
     * @return
     */
    @Bean
    public COSClient cosClient() {
        // 1 初始化用户身份信息（secretId, secretKey）。
        COSCredentials cred = new BasicCOSCredentials(secretId, secretKey);
        // 2.1 设置存储桶的地域（上文获得）
        Region regions = new Region(region);
        ClientConfig clientConfig = new ClientConfig(regions);

        // 2.2 使用https协议传输
        clientConfig.setHttpProtocol(HttpProtocol.https);
        // 3 生成 cos 客户端。
        COSClient cosClient = new COSClient(cred, clientConfig);
        // 返回COS客户端
        return cosClient;
    }

    // 静态上传方法
    public static String uploadFile(File file, String cosPath, String bucket, COSClient cosClient) {
        PutObjectRequest putObjectRequest = new PutObjectRequest(bucket, cosPath, file);
        cosClient.putObject(putObjectRequest);
        // 拼接url（假设私有读，实际可用签名url或自定义域名）
        String url = String.format("https://%s.cos.%s.myqcloud.com/%s", bucket, cosClient.getClientConfig().getRegion().getRegionName(), cosPath);
        return url;
    }
}

获取 fileId 类

将文件通过 OpenAI 兼容接口上传到阿里云百炼平台，保存至平台安全存储空间后获取文件 ID，GetFileIdMethodClass.java

import org.apache.http.HttpEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.ContentType;
import org.apache.http.entity.mime.MultipartEntityBuilder;
import org.apache.http.entity.mime.content.FileBody;
import org.apache.http.entity.mime.content.StringBody;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;
import java.io.File;
import java.io.IOException;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

/**
 * 将文件通过OpenAI兼容接口上传到阿里云百炼平台，保存至平台安全存储空间后获取文件ID
 */
@Component
public class GetFileIdMethodClass {
    @Value("${qianwenvl.vlapi.vlkey}")
    private String dashscopeApiKey;
    @Value("${qianwenvl.vlapi.vlurl}")
    private String dashscopeApiUrl;
    @Value("${qianwenvl.vlapi.qianwenlongurl}")
    private String dashscopeApiLongUrl;

    public String getFileId(String tempFilePath) throws IOException {
        CloseableHttpClient httpClient = HttpClients.createDefault();
        HttpPost httpPost = new HttpPost(dashscopeApiLongUrl);
        // 设置请求头
        httpPost.setHeader("Authorization", "Bearer " + dashscopeApiKey);
        // 构建 form-data 请求体
        File file = new File(tempFilePath);
        FileBody fileBody = new FileBody(file, ContentType.DEFAULT_BINARY);
        StringBody stringBody = new StringBody("file-extract", ContentType.TEXT_PLAIN);
        HttpEntity requestEntity = MultipartEntityBuilder.create()
                .addPart("file", fileBody) // 文件字段，字段名为 "file"
                .addPart("purpose", stringBody) // 字符串字段，字段名为 "stringField"
                .build();

        httpPost.setEntity(requestEntity);

        try (CloseableHttpResponse response = httpClient.execute(httpPost)) {
            return EntityUtils.toString(response.getEntity());
        } finally {
            httpClient.close();
        }
    }
}

mapping 文件 DataServerMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.community.sqlapp.mapper.FileInfoMapper">

    <resultMap id="fileInfoResultMap" type="com.community.sqlapp.entity.FileInfoPo">
        <id column="id" jdbcType="INTEGER" property="id" />
        <result column="fileid" jdbcType="VARCHAR" property="fileId" />
        <result column="filename" jdbcType="VARCHAR" property="fileName" />
        <result column="fileid_info" jdbcType="VARCHAR" property="fileIdInfo" />
    </resultMap>

    <!-- 插入文件信息 -->
    <insert id="insertFileInfo" parameterType="com.community.sqlapp.entity.FileInfoPo" useGeneratedKeys="true" keyProperty="id">
        INSERT INTO web_database.files_info (fileid, filename, fileid_info)
        VALUES (#{fileId}, #{fileName}, #{fileIdInfo})
    </insert>

    <!-- 插入腾讯COS文件信息 -->
    <insert id="insertTencentCosFile" parameterType="com.community.sqlapp.entity.TencentCosFile" useGeneratedKeys="true" keyProperty="id">
        INSERT INTO tencent_cos_file (file_name, file_url)
        VALUES (#{fileName}, #{fileUrl})
    </insert>

    <!-- 根据文件名查询文件信息 -->
    <select id="getFileInfoByFileName" parameterType="String" resultMap="fileInfoResultMap">
        SELECT id, fileid, filename, fileid_info
        FROM web_database.files_info
        WHERE filename = #{fileName}
    </select>

    <!-- 根据文件名查询最新的文件信息（按上传时间降序排序） -->
    <select id="getLatestFileInfoByFileName" parameterType="String" resultMap="fileInfoResultMap">
        SELECT id, fileid, filename, fileid_info
        FROM web_database.files_info
        WHERE filename = #{fileName}
        ORDER BY create_time DESC
            LIMIT 1
    </select>

    <!-- 查询所有文件信息 -->
    <select id="getAllFileInfo" resultMap="fileInfoResultMap">
        SELECT id, fileid, filename, fileid_info
        FROM web_database.files_info
        ORDER BY id DESC
    </select>

</mapper>

mapper 类

FileInfoMapper.java、TencentCosFileMapper.java。

import com.community.sqlapp.entity.FileInfoPo;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface FileInfoMapper {

    /**
     * 插入文件信息
     * @param fileInfo
     * @return
     */
    int insertFileInfo(FileInfoPo fileInfo);

    /**
     * 根据文件名查询文件信息
     * @param fileName
     * @return
     */
    FileInfoPo getFileInfoByFileName(String fileName);

    /**
     * 根据文件名查询最新的文件信息（按上传时间降序排序）
     * @param fileName
     * @return
     */
    FileInfoPo getLatestFileInfoByFileName(String fileName);
}

import com.community.sqlapp.entity.TencentCosFile;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Options;

@Mapper
public interface TencentCosFileMapper {
    @Insert("INSERT INTO tencent_cos_file (file_name, file_url) VALUES (#{fileName}, #{fileUrl})")
    @Options(useGeneratedKeys = true, keyProperty = "id")
    int insert(TencentCosFile file);
}

实体类 FileInfoPo.java，TencentCosFile.java

import lombok.Data;

@Data
public class FileInfoPo {
    private Integer id;  // 自增ID
    private String fileId;
    private String fileName;
    private String fileIdInfo;
}

import lombok.Data;

@Data
public class TencentCosFile {
    private Integer id;
    private String fileName;
    private String fileUrl;
}

service 实现类

文件上传，信息入库实现类（FileInfoService.java），千问大模型，生成测试点实现类（QwenVlToXmindService.java），xmind 解析生成 xmind 文件实现类（TestPointConverService.java）。

import com.community.sqlapp.dpsToXmind.GetFileIdMethodClass;
import com.community.sqlapp.entity.FileInfoPo;
import com.community.sqlapp.mapper.FileInfoMapper;
import com.qcloud.cos.COSClient;
import com.qcloud.cos.model.ObjectMetadata;
import com.qcloud.cos.model.PutObjectRequest;
import com.qcloud.cos.model.PutObjectResult;
import org.springframework.stereotype.Service;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.multipart.MultipartFile;
import org.springframework.beans.factory.annotation.Value;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.util.UUID;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;

/**
 * 文件上传，信息入库实现类
 */
@Service
public class FileInfoService {

    @Autowired
    private FileInfoMapper fileInfoMapper;
    @Autowired
    private GetFileIdMethodClass getFileIdMethodClass;
    @Autowired
    private COSClient cosClient;
    @Value("${tencent.cos.bucketname}")
    private String bucketName;
    @Value("${tencent.cos.cosurl}")
    private String cosUrl;
    /**
     * 上传文件并保存文件信息到数据库
     * @param file
     * @return
     */
    public FileInfoPo uploadFile(MultipartFile file) throws IOException {
        // 生成唯一的文件ID
        String fileId = UUID.randomUUID().toString();

        // 获取原始文件名
        String originalFileName = file.getOriginalFilename();

        // 创建文件信息对象
        FileInfoPo fileInfo = new FileInfoPo();
        try {
            // 创建临时文件
            File tempFile = File.createTempFile("upload_", "_" + originalFileName);
            // 将MultipartFile转换为临时文件
            file.transferTo(tempFile);
            // 使用GetFileIdMethodClass获取千问文件服务器返回的文件信息，传递临时文件的完整绝对路径
            String apiFileInfo = getFileIdMethodClass.getFileId(tempFile.getAbsolutePath());
            if (apiFileInfo != null && !apiFileInfo.trim().isEmpty()) {
                // 解析JSON字符串，提取id字段
                try {
                    JSONObject jsonObject = JSON.parseObject(apiFileInfo);
                    String extractedFileId = jsonObject.getString("id");
                    if (extractedFileId != null && !extractedFileId.trim().isEmpty()) {
                        //从千问文件服务器返回的文件信息中提取fileid
                        fileId = extractedFileId;
                    }
                } catch (Exception e) {
                    System.out.println("JSON解析失败: " + e.getMessage());
                }

                fileInfo.setFileIdInfo(apiFileInfo);
                fileInfo.setFileId(fileId);
            }
            // 删除临时文件
            tempFile.delete();
        } catch (Exception e) {
            // 如果GetFileIdMethodClass失败，继续使用UUID
            System.out.println("API调用失败，使用UUID作为文件ID: " + e.getMessage());
        }
        fileInfo.setFileName(originalFileName);
        // 保存到数据库
        fileInfoMapper.insertFileInfo(fileInfo);
        return fileInfo;
    }

    /**
     * 根据文件名查询文件信息
     * @param fileName
     * @return
     */
    public FileInfoPo getFileInfoByFileName(String fileName) {
        return fileInfoMapper.getFileInfoByFileName(fileName);
    }

    /**
     * 图片上传到腾讯COS，获取公网访问域名
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadCOSFile(MultipartFile file) throws IOException {
        // 生成唯一文件名
        String suffix = file.getOriginalFilename().substring(file.getOriginalFilename().lastIndexOf("."));
        String key = "/images/" + UUID.randomUUID() + suffix;

        // 元数据
        ObjectMetadata metadata = new ObjectMetadata();
        metadata.setContentLength(file.getSize());
        metadata.setContentType(file.getContentType());

        try (InputStream inputStream = file.getInputStream()) {
            PutObjectRequest putObjectRequest =
                    new PutObjectRequest(bucketName, key, inputStream, metadata);
            PutObjectResult result = cosClient.putObject(putObjectRequest);
            System.out.println(result.getRequestId());
            //cosClient.shutdown();
            // 返回可访问地址
            return  cosUrl + key;
        }
    }
}

import com.community.sqlapp.dpsToXmind.QwenHttpClientUtil;
import com.community.sqlapp.entity.FileInfoPo;
import com.community.sqlapp.mapper.FileInfoMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.io.IOException;

/**
 * 千问大模型，生成测试点实现类
 */
@Service
public class QwenVlToXmindService {

    @Autowired
    private QwenHttpClientUtil httpClientUtil;
    @Autowired
    private FileInfoMapper fileInfoMapper;

    /**
     * 图片请求qwen-vl-plus大模型
     * @param imageUrl
     * @param userPrompt
     * @return
     * @throws IOException
     */
    public String parseDocument(String imageUrl, String userPrompt) throws IOException {
        String dashscopeModel = "qwen-vl-plus"; // 可从配置读取
        // 智能prompt，要求AI只返回JSON结构
        String smartPrompt = (userPrompt == null || userPrompt.isEmpty() ? "请根据上传的需求文档，自动提取所有功能点并生成详细的测试点，要求结构化、分层级、覆盖全面。" : userPrompt);
        System.out.println("userPrompt: "+userPrompt);
        StringBuilder jsonBody = new StringBuilder();
        jsonBody.append("{");
        jsonBody.append("\"model\": \"").append(dashscopeModel).append("\",");
        jsonBody.append("\"messages\": [");
        jsonBody.append("  {");
        jsonBody.append("    \"role\": \"user\",");
        jsonBody.append("    \"content\": [");
        // 图片内容
        jsonBody.append("      {\"type\": \"image_url\", \"image_url\": {\"url\": \"").append(imageUrl).append("\"}},");
        // 文本内容
        jsonBody.append("      {\"type\": \"text\", \"text\": \"").append(smartPrompt).append("\"}");
        jsonBody.append("    ]");
        jsonBody.append("  }");
        jsonBody.append("]");
        jsonBody.append("}");
        System.out.println("请求体： "+jsonBody.toString());
        return httpClientUtil.sendPostRequest(jsonBody.toString());
    }

    /**
     * word文档使用qwen-long大模型
     * @param fileName 文件名
     * @param userPrompt 用户提示
     * @return
     * @throws IOException
     */
    public String parseLongDocument(String fileName, String userPrompt) throws IOException {
        String dashscopeModel = "qwen-long"; // 可从配置读取
        // 智能prompt，要求AI只返回JSON结构
        String smartPrompt = (userPrompt == null || userPrompt.isEmpty() ? "请根据上传的需求文档，自动提取所有功能点并生成详细的测试点，要求结构化、分层级、覆盖全面。" : userPrompt);

        // 从数据库获取fileid
        FileInfoPo fileInfo = fileInfoMapper.getLatestFileInfoByFileName(fileName);
        if (fileInfo == null) {
            throw new IOException("未找到文件信息：" + fileName);
        }

        String fileId = fileInfo.getFileId();
        System.out.println("从数据库获取的fileId: "+fileId);

        StringBuilder jsonBody = new StringBuilder();
        jsonBody.append("{" +
                "    \"model\": \""+dashscopeModel+"\"," +
                "    \"input\": {" +
                "        \"messages\": [" +
                "            {\"role\": \"system\",\"content\": \"fileid://"+fileId+"\"}," +
                "            {\"role\": \"user\",\"content\": \""+smartPrompt+"\"}" +
                "        ]" +
                "    }," +
                "    \"parameters\": {" +
                "        \"result_format\": \"message\"" +
                "    }" +
                "}");
        System.out.println("请求体： "+jsonBody.toString());
        return httpClientUtil.sendGetLongRequest(jsonBody.toString());
    }
}

import com.google.gson.*;
import org.springframework.stereotype.Service;
import java.io.File;
import java.io.FileOutputStream;
import java.nio.file.Files;
import java.util.Map;
import java.util.Set;
import java.util.zip.ZipEntry;
import java.util.zip.ZipOutputStream;
import java.util.List;
import java.util.ArrayList;
import java.util.LinkedHashMap;

/**
 * xmind解析生成xmind文件实现类
 */
@Service
public class TestPointConverService {
    private static final Gson gson = new GsonBuilder().setPrettyPrinting().create();
    /**
     * 递归将任意JSON结构转为XMind树结构
     * 支持 {"测试点": [...] } 这种结构，所有分层、子测试点、测试方法都能还原为XMind节点
     */
    public static String jsonToXmindTree(String json) {
        JsonElement rootElem = JsonParser.parseString(json);
        JsonObject rootObj;
        if (rootElem.isJsonObject()) {
            rootObj = rootElem.getAsJsonObject();
        } else {
            throw new IllegalArgumentException("输入必须为JSON对象");
        }
        // 取第一个key作为根节点
        Set<Map.Entry<String, JsonElement>> entries = rootObj.entrySet();
        if (entries.isEmpty()) throw new IllegalArgumentException("JSON对象不能为空");
        Map.Entry<String, JsonElement> first = entries.iterator().next();
        JsonObject xmindRoot = new JsonObject();
        xmindRoot.addProperty("topic", first.getKey());
        JsonArray children = new JsonArray();
        buildXmindChildren(first.getValue(), children);
        if (children.size() > 0) xmindRoot.add("children", children);
        return gson.toJson(xmindRoot);
    }

    // 递归构建children，增强适配多层级结构
    private static void buildXmindChildren(JsonElement elem, JsonArray children) {
        if (elem == null || elem.isJsonNull()) return;
        if (elem.isJsonArray()) {
            for (JsonElement e : elem.getAsJsonArray()) {
                buildXmindChildren(e, children);
            }
        } else if (elem.isJsonObject()) {
            JsonObject obj = elem.getAsJsonObject();
            String topic = null;
            JsonArray nodeChildren = new JsonArray();

            // 优先常规字段
            if (obj.has("一级模块")) {
                topic = obj.get("一级模块").isJsonPrimitive() ? obj.get("一级模块").getAsString() : "一级模块";
                if (obj.has("二级模块")) {
                    buildXmindChildren(obj.get("二级模块"), nodeChildren);
                }
            } else if (obj.has("二级模块")) {
                if (obj.get("二级模块").isJsonArray()) {
                    topic = null;
                    buildXmindChildren(obj.get("二级模块"), nodeChildren);
                } else if (obj.get("二级模块").isJsonPrimitive()) {
                    topic = obj.get("二级模块").getAsString();
                    if (obj.has("测试点")) {
                        buildXmindChildren(obj.get("测试点"), nodeChildren);
                    }
                } else if (obj.get("二级模块").isJsonObject()) {
                    topic = "二级模块";
                    buildXmindChildren(obj.get("二级模块"), nodeChildren);
                }
            } else if (obj.has("测试点")) {
                JsonElement testPointElem = obj.get("测试点");
                if (testPointElem.isJsonArray()) {
                    topic = "测试点";
                    buildXmindChildren(testPointElem, nodeChildren);
                } else if (testPointElem.isJsonPrimitive()) {
                    topic = testPointElem.getAsString();
                    if (obj.has("测试用例名称")) {
                        buildXmindChildren(obj.get("测试用例名称"), nodeChildren);
                    }
                } else if (testPointElem.isJsonObject()) {
                    topic = "测试点";
                    buildXmindChildren(testPointElem, nodeChildren);
                }
            } else if (obj.has("测试用例名称")) {
                topic = obj.get("测试用例名称").isJsonPrimitive() ? obj.get("测试用例名称").getAsString() : "测试用例名称";
            } else if (obj.has("名称")) {
                topic = obj.get("名称").isJsonPrimitive() ? obj.get("名称").getAsString() : "名称";
            } else if (obj.has("topic")) {
                topic = obj.get("topic").isJsonPrimitive() ? obj.get("topic").getAsString() : "topic";
            } else {
                // 新增：如果是普通对象，遍历所有key，每个key作为一个子节点
                for (Map.Entry<String, JsonElement> entry : obj.entrySet()) {
                    String key = entry.getKey();
                    JsonElement value = entry.getValue();
                    JsonObject node = new JsonObject();
                    node.addProperty("topic", key);
                    JsonArray childArr = new JsonArray();
                    if (value.isJsonArray() || value.isJsonObject()) {
                        buildXmindChildren(value, childArr);
                        if (childArr.size() > 0) node.add("children", childArr);
                    } else if (value.isJsonPrimitive()) {
                        // 叶子节点直接显示key: value
                        node.addProperty("topic", key + ": " + value.getAsString());
                    }
                    children.add(node);
                }
                return;
            }

            // 只在有topic时生成节点
            if (topic != null) {
                JsonObject node = new JsonObject();
                node.addProperty("topic", topic);
                if (nodeChildren.size() > 0) node.add("children", nodeChildren);
                children.add(node);
            } else if (nodeChildren.size() > 0) {
                for (JsonElement c : nodeChildren) {
                    children.add(c);
                }
            }
        } else if (elem.isJsonPrimitive()) {
            JsonObject node = new JsonObject();
            node.addProperty("topic", elem.getAsString());
            children.add(node);
        }
    }

    /**
     * 将平铺的数组结构自动分层为树状结构，支持一级模块、二级模块、测试点、测试用例名称四级分组
     */
    public static String flatJsonToXmindTree(String json) {
        JsonElement elem = JsonParser.parseString(json);
        if (elem.isJsonArray()) {
            JsonArray arr = elem.getAsJsonArray();
            // 构建树：Map<一级, Map<二级, Map<测试点, List<测试用例名称>>>>
            Map<String, Map<String, Map<String, List<String>>>> tree = new LinkedHashMap<>();
            for (JsonElement e : arr) {
                JsonObject obj = e.getAsJsonObject();
                String lv1 = obj.has("一级模块") ? obj.get("一级模块").getAsString() : "未知一级";
                String lv2 = obj.has("二级模块") ? obj.get("二级模块").getAsString() : "未知二级";
                // 处理测试点为数组或字符串
                List<String> testPoints = new ArrayList<>();
                if (obj.has("测试点")) {
                    JsonElement tpElem = obj.get("测试点");
                    if (tpElem.isJsonArray()) {
                        for (JsonElement tp : tpElem.getAsJsonArray()) {
                            testPoints.add(tp.getAsString());
                        }
                    } else if (tpElem.isJsonPrimitive()) {
                        testPoints.add(tpElem.getAsString());
                    }
                } else {
                    testPoints.add("未知测试点");
                }
                // 处理测试用例名称为数组或字符串
                List<String> caseNames = new ArrayList<>();
                if (obj.has("测试用例名称")) {
                    JsonElement cnElem = obj.get("测试用例名称");
                    if (cnElem.isJsonArray()) {
                        for (JsonElement cn : cnElem.getAsJsonArray()) {
                            caseNames.add(cn.getAsString());
                        }
                    } else if (cnElem.isJsonPrimitive()) {
                        caseNames.add(cnElem.getAsString());
                    }
                } else {
                    caseNames.add("用例");
                }
                // 构建树结构
                for (int i = 0; i < Math.max(testPoints.size(), caseNames.size()); i++) {
                    String lv3 = i < testPoints.size() ? testPoints.get(i) : "未知测试点";
                    String lv4 = i < caseNames.size() ? caseNames.get(i) : "用例";
                    tree.computeIfAbsent(lv1, k -> new LinkedHashMap<>())
                            .computeIfAbsent(lv2, k -> new LinkedHashMap<>())
                            .computeIfAbsent(lv3, k -> new ArrayList<>())
                            .add(lv4);
                }
            }
            // 构建XMind JSON
            JsonObject root = new JsonObject();
            root.addProperty("topic", "一级目录");
            JsonArray lv1Arr = new JsonArray();
            for (Map.Entry<String, Map<String, Map<String, List<String>>>> e1 : tree.entrySet()) {
                JsonObject lv1Node = new JsonObject();
                lv1Node.addProperty("topic", e1.getKey());
                JsonArray lv2Arr = new JsonArray();
                for (Map.Entry<String, Map<String, List<String>>> e2 : e1.getValue().entrySet()) {
                    JsonObject lv2Node = new JsonObject();
                    lv2Node.addProperty("topic", e2.getKey());
                    JsonArray lv3Arr = new JsonArray();
                    for (Map.Entry<String, List<String>> e3 : e2.getValue().entrySet()) {
                        JsonObject lv3Node = new JsonObject();
                        lv3Node.addProperty("topic", e3.getKey());
                        JsonArray lv4Arr = new JsonArray();
                        for (String lv4 : e3.getValue()) {
                            JsonObject lv4Node = new JsonObject();
                            lv4Node.addProperty("topic", lv4);
                            lv4Arr.add(lv4Node);
                        }
                        if (lv4Arr.size() > 0) lv3Node.add("children", lv4Arr);
                        lv3Arr.add(lv3Node);
                    }
                    if (lv3Arr.size() > 0) lv2Node.add("children", lv3Arr);
                    lv2Arr.add(lv2Node);
                }
                if (lv2Arr.size() > 0) lv1Node.add("children", lv2Arr);
                lv1Arr.add(lv1Node);
            }
            if (lv1Arr.size() > 0) root.add("children", lv1Arr);
            return gson.toJson(root);
        } else if (elem.isJsonObject()) {
            // 新增：对象结构直接用递归树方法
            return jsonToXmindTree(json);
        } else {
            throw new IllegalArgumentException("不支持的JSON结构");
        }
    }

    /**
     * 生成xmind8文件（包含content.xml和META-INF/manifest.xml，标准结构）
     */
    public static void generateXMind(String json, String outputPath) throws Exception {
        String contentXml = jsonToXMindContentXml(json);
        // 1. 生成content.xml
        File tempDir = new File("temp_xmind");
        if (!tempDir.exists()) tempDir.mkdirs();
        File contentFile = new File(tempDir, "content.xml");
        try (FileOutputStream fos = new FileOutputStream(contentFile)) {
            fos.write(contentXml.getBytes("UTF-8"));
        }
        // 2. 生成META-INF/manifest.xml
        File metaInfDir = new File(tempDir, "META-INF");
        if (!metaInfDir.exists()) metaInfDir.mkdirs();
        File manifestFile = new File(metaInfDir, "manifest.xml");
        String manifestXml = "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n" +
                "<manifest xmlns=\"urn:xmind:xmap:xmlns:manifest:1.0\">\n" +
                "  <file-entry full-path=\"content.xml\" media-type=\"text/xml\"/>\n" +
                "</manifest>\n";
        try (FileOutputStream fos = new FileOutputStream(manifestFile)) {
            fos.write(manifestXml.getBytes("UTF-8"));
        }
        // 3. 打包为zip（xmind）
        try (FileOutputStream fos = new FileOutputStream(outputPath);
             ZipOutputStream zos = new ZipOutputStream(fos)) {
            // content.xml
            ZipEntry entry1 = new ZipEntry("content.xml");
            zos.putNextEntry(entry1);
            byte[] bytes1 = Files.readAllBytes(contentFile.toPath());
            zos.write(bytes1, 0, bytes1.length);
            zos.closeEntry();
            // META-INF/manifest.xml
            ZipEntry entry2 = new ZipEntry("META-INF/manifest.xml");
            zos.putNextEntry(entry2);
            byte[] bytes2 = Files.readAllBytes(manifestFile.toPath());
            zos.write(bytes2, 0, bytes2.length);
            zos.closeEntry();
        }
        // 清理临时文件
        contentFile.delete();
        manifestFile.delete();
        metaInfDir.delete();
        tempDir.delete();
    }

    // 将json结构转为xmind8 content.xml内容（极简结构，仅topic树）
    private static String jsonToXMindContentXml(String json) {
        JsonObject root = gson.fromJson(json, JsonObject.class);
        StringBuilder sb = new StringBuilder();
        sb.append("<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n");
        sb.append("<xmap-content xmlns=\"urn:xmind:xmap:xmlns:content:2.0\" version=\"2.0\">\n");
        sb.append("  <sheet id=\"1\" timestamp=\"" + System.currentTimeMillis() + "\">\n");
        sb.append("    <title>").append(root.get("topic").getAsString()).append("</title>\n");
        sb.append(jsonTopicToXml(root, 3));
        sb.append("  </sheet>\n");
        sb.append("</xmap-content>\n");
        return sb.toString();
    }

    private static String jsonTopicToXml(JsonObject node, int indent) {
        StringBuilder sb = new StringBuilder();
        String topic = node.has("topic") ? node.get("topic").getAsString() : "";
        String pad = "  ".repeat(indent);
        sb.append(pad).append("<topic id=\"t" + System.nanoTime() + "\">\n");
        sb.append(pad).append("  <title>").append(topic).append("</title>\n");
        if (node.has("children")) {
            JsonArray children = node.getAsJsonArray("children");
            if (children.size() > 0) {
                sb.append(pad).append("  <children>\n");
                sb.append(pad).append("    <topics type=\"attached\">\n");
                for (int i = 0; i < children.size(); i++) {
                    JsonObject child = children.get(i).getAsJsonObject();
                    sb.append(jsonTopicToXml(child, indent + 3));
                }
                sb.append(pad).append("    </topics>\n");
                sb.append(pad).append("  </children>\n");
            }
        }
        sb.append(pad).append("</topic>\n");
        return sb.toString();
    }
}

文件 To 测试用例 Controller：FileToTestPointController.java

import com.community.sqlapp.entity.TencentCosFile;
import com.community.sqlapp.mapper.TencentCosFileMapper;
import com.community.sqlapp.service.FileInfoService;
import com.community.sqlapp.service.QwenVlToXmindService;
import com.community.sqlapp.service.TestPointConverService;
import com.google.gson.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
import org.xmind.core.CoreException;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;


@RestController
@RequestMapping("/api")
public class FileToTestPointController {

    @Autowired
    private QwenVlToXmindService qwenVlService;
    @Autowired
    private FileInfoService fileInfoService;
    @Autowired
    private TencentCosFileMapper tencentCosFileMapper;

    /**
     * 图片生成xmind测试点
     * @param file
     * @param promot
     * @return
     * @throws IOException
     * @throws CoreException
     */
    @PostMapping("/imageUpload")
    public Map<String, Object> imageUploadFile(@RequestParam("file") MultipartFile file, @RequestParam(value = "promot", required = false) String promot) throws IOException, CoreException {
        Map<String, Object> response = new HashMap<>();
        try {
            // 2. 上传到腾讯云COS
            String fileUrl = fileInfoService.uploadCOSFile(file);
            System.out.println("fileUrl: "+fileUrl);
            // 3. 存入数据库
            TencentCosFile cosFile = new TencentCosFile();
            cosFile.setFileName(file.getOriginalFilename());
            cosFile.setFileUrl(fileUrl);
            tencentCosFileMapper.insert(cosFile);

            // 4. 用fileUrl调用大模型
            String promotInfo = "请严格以如下JSON格式返回，不要输出多余的解释或Markdown，返回json内容包含一级模块、二级模块、测试点、测试用例名称";
            String userPrompt = (promot != null && !promot.isEmpty() ? promot : "请根据上传的需求文档自动提取所有功能点并生成详细的测试点，要求结构化、分层级、覆盖全面。") + promotInfo;
            //调用 qwen-vl-plus 模型解析文档内容（新版API，文档+文本）
            String aiJson = qwenVlService.parseDocument(fileUrl, userPrompt);
            System.out.println("返回数据： " + aiJson);
            String xmindPath = null;
            try {
                // 1. 提取content字段
                JsonObject resp = JsonParser.parseString(aiJson).getAsJsonObject();
                if (resp.has("output")) {
                    resp = resp.getAsJsonObject("output");
                }
                String content = "";
                if (resp.has("choices")) {
                    JsonArray choices = resp.getAsJsonArray("choices");
                    if (choices.size() > 0) {
                        JsonObject msg = choices.get(0).getAsJsonObject();
                        if (msg.has("message")) {
                            JsonObject message = msg.getAsJsonObject("message");
                            if (message.has("content")) {
                                content = message.get("content").getAsString();
                            }
                        }
                    }
                }
                if (content.isEmpty()) {
                    response.put("success", false);
                    response.put("error", "AI返回内容无content字段，原始返回：" + aiJson);
                    return response;
                }
                // 2. 去除markdown代码块包裹
                content = content.replaceAll("(?s)```json|```", "").trim();
                System.out.println("提取的content内容：\n" + content);
                // 3. 平铺数组转树状结构
                String xmindJson = TestPointConverService.flatJsonToXmindTree(content);
                System.out.println("解析成功！生成的JSON结构：\n" + xmindJson);
                // 4. 生成XMind文件
                String suffix = file.getOriginalFilename();
                int index = suffix.indexOf('.');
                if (index != -1) { // 确保找到了点号
                    suffix = suffix.substring(0, index); // 获取第一个点号之前的部分
                }
                System.out.println("文件名称"+ suffix);
                xmindPath = suffix+".xmind";
                TestPointConverService.generateXMind(xmindJson, xmindPath);
                System.out.println("XMind文件生成成功：" + xmindPath);
                response.put("success", true);
                response.put("message", "XMind 文件已生成");
                response.put("downloadUrl", "/fileconfig/download?file="+xmindPath);
            } catch (Exception e) {
                System.err.println("解析失败：" + e.getMessage());
                e.printStackTrace();
                response.put("success", false);
                response.put("error", "解析失败：" + e.getMessage());
            }
        } catch (Exception e) {
            response.put("success", false);
            response.put("error", e.getMessage());
        }
        return response;
    }

    /**
     * 图片上传到腾讯COS
     * @param file
     * @return
     */
    @PostMapping("/uploadtest")
    public ResponseEntity<String> uploadTest(@RequestParam("file") MultipartFile file) {
        try {
            String url = String.valueOf(fileInfoService.uploadCOSFile(file));
            System.out.println("fileUrl: "+url);
            return ResponseEntity.ok(url);
        } catch (Exception e) {
            return ResponseEntity.status(500).body("上传失败：" + e.getMessage());
        }
    }

    /**
     * 文件生成测试点，根据文件名从数据库获取fileid
     * @param fileName 文件名
     * @param promot 提示词
     * @return
     * @throws IOException
     * @throws CoreException
     */
    @PostMapping("/wordUpload")
    public Map<String, Object> wordUpload(@RequestParam("fileName") String fileName, @RequestParam(value = "promot", required = false) String promot) throws IOException, CoreException {
        Map<String, Object> response = new HashMap<>();
        try {
            String promotInfo="请严格以如下JSON格式返回，不要输出多余的解释或Markdown，返回json内容包含一级模块、二级模块、测试点、测试用例名称";
            String userPrompt = promot != null && !promot.isEmpty() ? promot+promotInfo : "请根据上传的需求文档自动提取所有功能点并生成详细的测试点，要求结构化、分层级、覆盖全面。"+promotInfo;

            // 调用 Qwen-long 模型解析文档内容（新版API，文档+文本）
            String aiJson = qwenVlService.parseLongDocument(fileName, userPrompt);
            System.out.println("返回数据： " + aiJson);
            String xmindPath = null;
            try {
                // 1. 提取content字段
                JsonObject resp = JsonParser.parseString(aiJson).getAsJsonObject();
                if (resp.has("output")) {
                    resp = resp.getAsJsonObject("output");
                }
                String content = "";
                if (resp.has("choices")) {
                    JsonArray choices = resp.getAsJsonArray("choices");
                    if (choices.size() > 0) {
                        JsonObject msg = choices.get(0).getAsJsonObject();
                        if (msg.has("message")) {
                            JsonObject message = msg.getAsJsonObject("message");
                            if (message.has("content")) {
                                content = message.get("content").getAsString();
                            }
                        }
                    }
                }
                if (content.isEmpty()) {
                    response.put("success", false);
                    response.put("error", "AI返回内容无content字段，原始返回：" + aiJson);
                    return response;
                }
                // 2. 去除markdown代码块包裹
                content = content.replaceAll("(?s)```json|```", "").trim();
                System.out.println("提取的content内容：\n" + content);
                // 3. 平铺数组转树状结构
                String xmindJson = TestPointConverService.flatJsonToXmindTree(content);
                System.out.println("解析成功！生成的JSON结构：\n" + xmindJson);
                // 4. 生成XMind文件
                xmindPath = fileName+".xmind";
                TestPointConverService.generateXMind(xmindJson, xmindPath);
                System.out.println("XMind文件生成成功：" + xmindPath);

                response.put("success", true);
                response.put("message", "XMind 文件已生成");
                response.put("downloadUrl", "/fileconfig/download?file="+xmindPath);
            } catch (Exception e) {
                System.err.println("解析失败：" + e.getMessage());
                e.printStackTrace();
                response.put("success", false);
                response.put("error", "解析失败：" + e.getMessage());
            }
        } catch (Exception e) {
            response.put("success", false);
            response.put("error", e.getMessage());
        }
        return response;
    }
}

文件上传 Controller：FileUploadMethodController.java

import com.community.sqlapp.service.FileInfoService;
import com.community.sqlapp.entity.FileInfoPo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.*;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.util.HashMap;
import java.util.Map;

@Controller
@RequestMapping("/fileconfig")
public class FileUploadMethodController {

    @Autowired
    private FileInfoService fileInfoService;
    /**
     * 显示文件上传页面
     */
    @GetMapping("/upload")
    public String showUploadPage() {
        return "fileupload";
    }

    /**
     * 文件上传，入库文件ID、文件名称,千问的qwen-long模型存储doc、docx时调这个接口
     * @param file
     * @return
     */
    @PostMapping("/fileupload")
    @ResponseBody
    public Map<String, Object> qwenLongFileUpload(@RequestParam("file") MultipartFile file) {
        Map<String, Object> response = new HashMap<>();
        try {
            // 调用文件上传服务
            FileInfoPo fileInfo = fileInfoService.uploadFile(file);

            response.put("success", true);
            response.put("message", "文件上传成功");
            response.put("fileId", fileInfo.getFileId());
            response.put("fileName", fileInfo.getFileName());
            response.put("id", fileInfo.getId());
        } catch (Exception e) {
            response.put("success", false);
            response.put("error", e.getMessage());
        }
        return response;
    }

    /**
     * 获取文件信息
     * @param file
     * @return
     * @throws Exception
     */
    @PostMapping("/fileInfo")
    @ResponseBody
    public Map<String, Object> parseFileContent(@RequestParam("file") MultipartFile file) throws Exception {
        Map<String, Object> response = new HashMap<>();
        try {
            String fileName = file.getOriginalFilename();
            FileInfoPo fileInfo = fileInfoService.getFileInfoByFileName(fileName);

            if (fileInfo != null) {
                response.put("success", true);
                response.put("fileInfo", fileInfo);
            } else {
                response.put("success", false);
                response.put("message", "文件信息未找到");
            }
        } catch (Exception e) {
            response.put("success", false);
            response.put("error", e.getMessage());
        }
        return response;
    }
}

启动类：MicroDynamicApplication.java

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.ConfigurationPropertiesScan;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.ComponentScan;

@SpringBootApplication
@ConfigurationPropertiesScan
@MapperScan("com.community.sqlapp.mapper")
@ComponentScan(basePackages = {"com.community.sqlapp"})
@EnableConfigurationProperties
public class MicroDynamicApplication {

    public static void main(String[] args) {
        SpringApplication.run(MicroDynamicApplication.class, args);
    }
}

sql 文件

-- 创建files_info表的SQL脚本
-- 数据库：web_database

CREATE TABLE IF NOT EXISTS `web_database`.`files_info` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增主键ID',
  `fileid` varchar(255) NOT NULL COMMENT '文件ID',
  `filename` varchar(500) NOT NULL COMMENT '文件名',
  `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_fileid` (`fileid`),
  KEY `idx_filename` (`filename`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='文件信息表';

CREATE TABLE tencent_cos_file (
        id INT AUTO_INCREMENT PRIMARY KEY,
        file_name VARCHAR(255) NOT NULL,
        file_url VARCHAR(1024) NOT NULL,
        create_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

最后

至此 V1.1 版本目前告一段落，完成所有项目文件相关的数据切换到对象存储服务，BUG 和代码健壮性还是很多需要改进的地方，页面还没有完全前后端分离。继续回归业务测试本职工作。下次时间空闲出来了再继续改造。

暫無回覆。

需要登录後方可回應，如果你還沒有帳號按這裡注册。

通用技术 记一次测试工具从 V1.0 到 V1.1 的回溯和成果（二）

通用技术 记一次测试工具从 V1.0 到 V1.1 的回溯和成果（二）

1、V1.1 版本工作原理（能用就行原理）

2、从 V1.0 到 V1.1 前后过程

springBoot 配置文件 application-dev.yml

springBoot 依赖 pom.xml

https 连接类 QwenHttpClientUtil.java

腾讯 COS 对象存储工具类 TencentCosUtil.java

获取 fileId 类

mapping 文件 DataServerMapper.xml

mapper 类

实体类 FileInfoPo.java，TencentCosFile.java

service 实现类

文件 To 测试用例 Controller：FileToTestPointController.java

文件上传 Controller：FileUploadMethodController.java

启动类：MicroDynamicApplication.java

sql 文件

最后

通用技术记一次测试工具从 V1.0 到 V1.1 的回溯和成果（二）

通用技术记一次测试工具从 V1.0 到 V1.1 的回溯和成果（二）
