STF 集群搭建出现 Remote Debug 提供的地址，无法通过 adb connect 连接的问题

华为云为 STF 主服务器，已经在控制台开启了对应端口，然后本地局域网有一台 centos7.6 的机器作为插手机的从机，可以正常在 STF 的页面进行 shell 命令的执行，

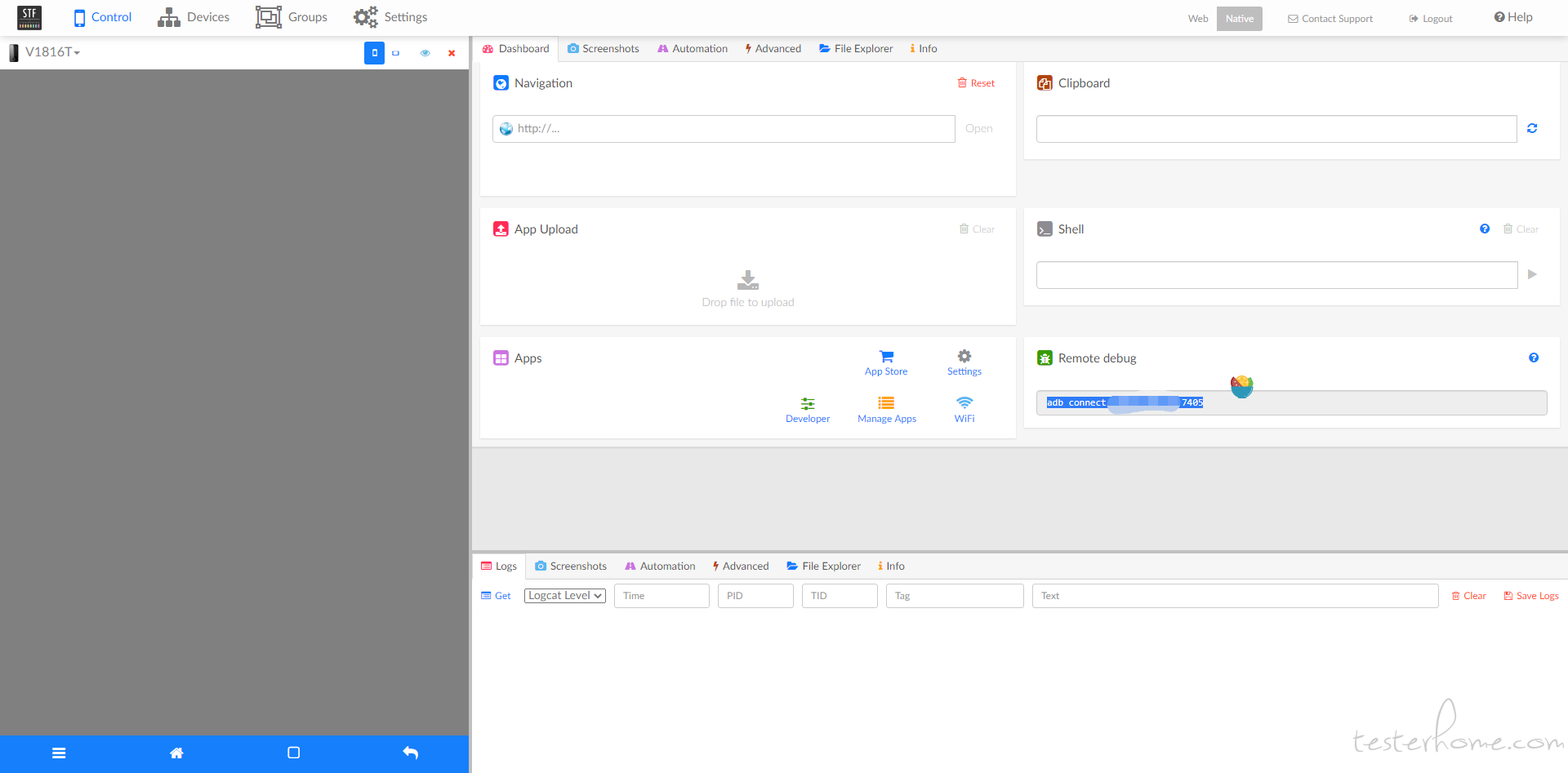

但是 STF 给出的 Remote Debug 地址，无法通过本地的笔记本进行 adb connect 连接、

主服务器的部署方式：docker-compose，这是我修改过的部署 yml 文件

version: '3'

volumes:
  rethinkdb:
  storage-temp:
services:
  nginx:
    build: nginx/
    volumes:
      - ./nginx/nginx.conf:/etc/nginx/nginx.conf
    restart: unless-stopped
    ports:
      - 80:80  # 这个配置，stf不需要再输入7100 即可访问前端页面
    depends_on:
      - app
      - auth
      - storage-plugin-apk
      - storage-plugin-image
      - storage-temp
      - websocket
      - api
  adb:
    image: sorccu/adb:latest
    restart: unless-stopped
    privileged: true
    volumes:
      - /dev/bus/usb:/dev/bus/usb
  rethinkdb:
    image: rethinkdb:2.3
    restart: unless-stopped
    volumes:
      - rethinkdb:/data
  app:
    image: openstf/stf:latest
    restart: unless-stopped
    environment:
      - RETHINKDB_PORT_28015_TCP
      - SECRET
    command: stf app --auth-url http://${PUBLIC_IP}/auth/mock/ --websocket-url ws://${PUBLIC_IP}/ --port 3000
    depends_on:
      - rethinkdb
      - auth
      - websocket
  auth:
    image: openstf/stf:latest
    restart: unless-stopped
    environment:
      - RETHINKDB_PORT_28015_TCP
      - SECRET
    command: stf auth-mock --app-url http://${PUBLIC_IP}/ --port 3000
    depends_on:
      - rethinkdb
  processor:
    image: openstf/stf:latest
    restart: unless-stopped
    environment:
      - RETHINKDB_PORT_28015_TCP
    command: stf processor --connect-app-dealer tcp://triproxy:7160 --connect-dev-dealer tcp://dev-triproxy:7260
    depends_on:
      - rethinkdb
      - triproxy
      - dev-triproxy
  triproxy:  ##这个是provider和主服务器交流的关键，因为到时候子节点运行的时候会配该节点的信息
    image: openstf/stf:latest
    restart: unless-stopped
    command: stf triproxy app --bind-pub "tcp://*:7150" --bind-dealer "tcp://*:7160" --bind-pull "tcp://*:7170"
    ports：
      - 7150:7150
      - 7170:7170
      ## 如果你想搭建集群，这个地方一定要配置端口映射，不然子节点无法和该单元通讯
  dev-triproxy:
    image: openstf/stf:latest
    restart: unless-stopped
    command: stf triproxy dev --bind-pub "tcp://*:7250" --bind-dealer "tcp://*:7260" --bind-pull "tcp://*:7270"
    ports:
      - 7270:7270
      - 7250:7250
      - 7260:7260
       ## 如果你想搭建集群，这个地方一定要配置端口映射，不然子节点无法和该单元通讯
  migrate:
    image: openstf/stf:latest
    environment:
      - RETHINKDB_PORT_28015_TCP
    command: stf migrate
    depends_on:
      - rethinkdb
  provider:
    image: openstf/stf:latest
    restart: unless-stopped
    command: stf provider --name ${STATION_NAME} --connect-sub tcp://dev-triproxy:7250 --connect-push tcp://dev-triproxy:7270 --storage-url http://${PUBLIC_IP}/ --public-ip ${PUBLIC_IP} --heartbeat-interval 10000 --screen-ws-url-pattern "ws://${PUBLIC_IP}/d/nuc/<%= serial %>/<%= publicPort %>/" --adb-host adb --min-port 7400 --max-port 7700 --allow-remote
    ports:
      - 7400-7700:7400-7700
    depends_on:
      - adb
      - dev-triproxy
      - triproxy
      - storage-temp
  reaper:
    image: openstf/stf:latest
    restart: unless-stopped
    environment:
      - RETHINKDB_PORT_28015_TCP
    depends_on:
      - migrate
      - rethinkdb
      - dev-triproxy
      - triproxy
    command: stf reaper dev --connect-push tcp://dev-triproxy:7270 --connect-sub tcp://triproxy:7150 --heartbeat-timeout 30000
  storage-plugin-apk:
    image: openstf/stf:latest
    restart: unless-stopped
    command: stf storage-plugin-apk --port 3000 --storage-url http://${PUBLIC_IP}/
    depends_on:
      - storage-temp
  storage-plugin-image:
    image: openstf/stf:latest
    restart: unless-stopped
    command: stf storage-plugin-image --port 3000 --storage-url http://${PUBLIC_IP}/
    depends_on:
      - storage-temp
  storage-temp:
    build: storage-temp/
    restart: unless-stopped
    volumes:
      - storage-temp:/app/data
    command: stf storage-temp --port 3000 --save-dir /app/data
  websocket:
    image: openstf/stf:latest
    restart: unless-stopped
    environment:
      - SECRET
      - RETHINKDB_PORT_28015_TCP
    command: stf websocket --port 3000 --storage-url http://${PUBLIC_IP}/ --connect-sub tcp://triproxy:7150 --connect-push tcp://triproxy:7170
    depends_on:
      - migrate
      - rethinkdb
      - storage-temp
      - triproxy
      - dev-triproxy
  api:
    image: openstf/stf:latest
    restart: unless-stopped
    environment:
      - SECRET
      - RETHINKDB_PORT_28015_TCP
    command: stf api --port 3000 --connect-sub tcp://triproxy:7150 --connect-push tcp://triproxy:7170 --connect-sub-dev tcp://dev-triproxy:7250 --connect-push-dev tcp://dev-triproxy:7270
    depends_on:
      - migrate
      - rethinkdb
      - triproxy

从机采用 docker 镜像使用的 stf 官方镜像

docker pull openstf/stf:latest # 拉取openstf/stf
docker pull sorccu/adb:latest # 拉取adb service

docker run -d --name adbd --privileged -v /dev/bus/usb:/dev/bus/usb --net host sorccu/adb:latest

docker run -d \
--name slave_provider_1 \
--net host openstf/stf stf provider \
--name slave_provider_1 --min-port 7400 \
--max-port 7700 --connect-sub tcp://xxxxxx:7250
--connect-push tcp://xxxxxx:7270 \
--group-timeout 9000 --public-ip xxxxx \
--storage-url http://xxxx/   --vnc-initial-size 600x800 \
--allow-remote \
-- screen-ws-url-pattern "ws://xxxxx/d/slaveprovider/<%= serial %>/<%= publicPort %>/"

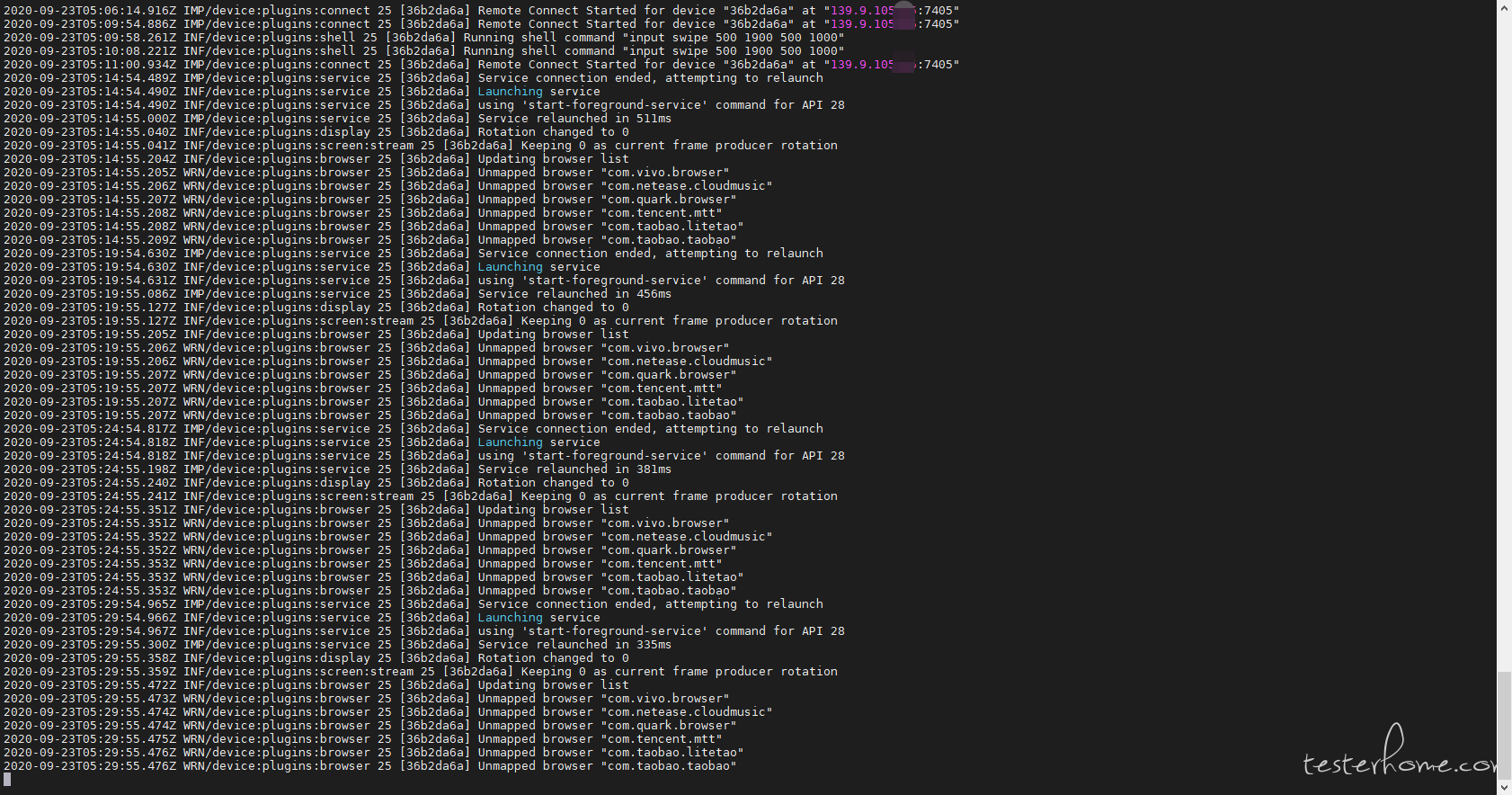

从机 provider 日志

不知道有大佬知道咋回事吗，感谢各位大佬
