Appium 基于腾讯 x5 的引擎开发的混合 app,appim 切换 webview 时报错。哪位大佬帮忙看看,有偿解决。谢谢~

盐咖啡 · 2020年07月29日 · 最后由 GoodLuck 回复于 2020年07月30日 · 3287 次阅读

在基于 x5 开发的混合应用中,appium 切换 webview 报错。

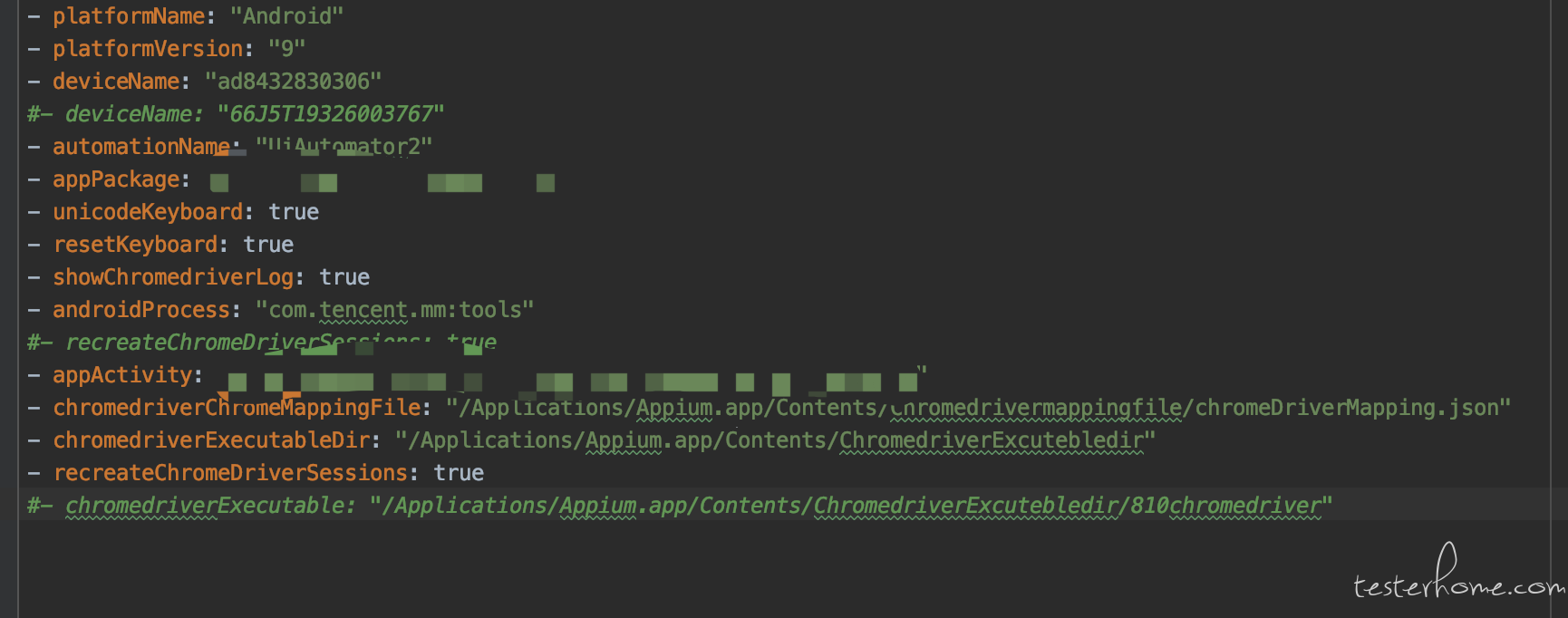

启动配置如下:

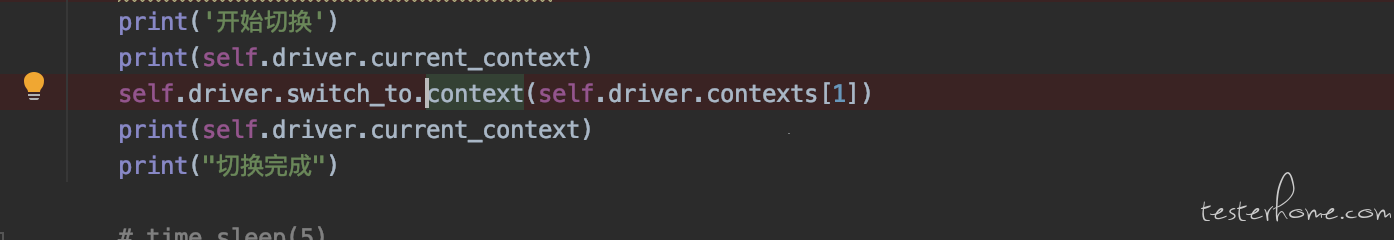

实现代码:

报错日志


/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/appium/webdriver/switch_to.py:30: in context
self._driver.execute(MobileCommand.SWITCH_TO_CONTEXT, {'name': context_name})
/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/selenium/webdriver/remote/webdriver.py:321: in execute
self.error_handler.check_response(response)
/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/appium/webdriver/errorhandler.py:29: in check_response
raise wde
/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/appium/webdriver/errorhandler.py:24: in check_response
super(MobileErrorHandler, self).check_response(response)


self =
response = {'status': 500, 'value': '{"value":{"error":"unknown error","message":"An unknown server-side error occurred while pro...um.app/Contents/Resources/app/node_modules/appium/node_modules/appium-base-driver/lib/protocol/protocol.js:388:37)"}}'}

def check_response(self, response):
"""
Checks that a JSON response from the WebDriver does not have an error.

:Args:
- response - The JSON response from the WebDriver server as a dictionary
object.

:Raises: If the response contains an error message.
"""
status = response.get('status', None)
if status is None or status == ErrorCode.SUCCESS:
return
value = None
message = response.get("message", "")
screen = response.get("screen", "")
stacktrace = None
if isinstance(status, int):
value_json = response.get('value', None)
if value_json and isinstance(value_json, basestring):
import json
try:
value = json.loads(value_json)
if len(value.keys()) == 1:
value = value['value']
status = value.get('error', None)
if status is None:
status = value["status"]
message = value["value"]
if not isinstance(message, basestring):
value = message
message = message.get('message')
else:
message = value.get('message', None)
except ValueError:
pass

exception_class = ErrorInResponseException
if status in ErrorCode.NO_SUCH_ELEMENT:
exception_class = NoSuchElementException
elif status in ErrorCode.NO_SUCH_FRAME:
exception_class = NoSuchFrameException
elif status in ErrorCode.NO_SUCH_WINDOW:
exception_class = NoSuchWindowException
elif status in ErrorCode.STALE_ELEMENT_REFERENCE:
exception_class = StaleElementReferenceException
elif status in ErrorCode.ELEMENT_NOT_VISIBLE:
exception_class = ElementNotVisibleException
elif status in ErrorCode.INVALID_ELEMENT_STATE:
exception_class = InvalidElementStateException
elif status in ErrorCode.INVALID_SELECTOR \
or status in ErrorCode.INVALID_XPATH_SELECTOR \
or status in ErrorCode.INVALID_XPATH_SELECTOR_RETURN_TYPER:
exception_class = InvalidSelectorException
elif status in ErrorCode.ELEMENT_IS_NOT_SELECTABLE:
exception_class = ElementNotSelectableException
elif status in ErrorCode.ELEMENT_NOT_INTERACTABLE:
exception_class = ElementNotInteractableException
elif status in ErrorCode.INVALID_COOKIE_DOMAIN:
exception_class = InvalidCookieDomainException
elif status in ErrorCode.UNABLE_TO_SET_COOKIE:
exception_class = UnableToSetCookieException
elif status in ErrorCode.TIMEOUT:
exception_class = TimeoutException
elif status in ErrorCode.SCRIPT_TIMEOUT:
exception_class = TimeoutException
elif status in ErrorCode.UNKNOWN_ERROR:
exception_class = WebDriverException
elif status in ErrorCode.UNEXPECTED_ALERT_OPEN:
exception_class = UnexpectedAlertPresentException
elif status in ErrorCode.NO_ALERT_OPEN:
exception_class = NoAlertPresentException
elif status in ErrorCode.IME_NOT_AVAILABLE:
exception_class = ImeNotAvailableException
elif status in ErrorCode.IME_ENGINE_ACTIVATION_FAILED:
exception_class = ImeActivationFailedException
elif status in ErrorCode.MOVE_TARGET_OUT_OF_BOUNDS:
exception_class = MoveTargetOutOfBoundsException
elif status in ErrorCode.JAVASCRIPT_ERROR:
exception_class = JavascriptException
elif status in ErrorCode.SESSION_NOT_CREATED:
exception_class = SessionNotCreatedException
elif status in ErrorCode.INVALID_ARGUMENT:
exception_class = InvalidArgumentException
elif status in ErrorCode.NO_SUCH_COOKIE:
exception_class = NoSuchCookieException
elif status in ErrorCode.UNABLE_TO_CAPTURE_SCREEN:
exception_class = ScreenshotException
elif status in ErrorCode.ELEMENT_CLICK_INTERCEPTED:
exception_class = ElementClickInterceptedException
elif status in ErrorCode.INSECURE_CERTIFICATE:
exception_class = InsecureCertificateException
elif status in ErrorCode.INVALID_COORDINATES:
exception_class = InvalidCoordinatesException
elif status in ErrorCode.INVALID_SESSION_ID:
exception_class = InvalidSessionIdException
elif status in ErrorCode.UNKNOWN_METHOD:
exception_class = UnknownMethodException
else:
exception_class = WebDriverException
if value == '' or value is None:
value = response['value']
if isinstance(value, basestring):
if exception_class == ErrorInResponseException:
raise exception_class(response, value)
raise exception_class(value)
if message == "" and 'message' in value:
message = value['message']

screen = None
if 'screen' in value:
screen = value['screen']

stacktrace = None
if 'stackTrace' in value and value['stackTrace']:
stacktrace = []
try:
for frame in value['stackTrace']:
line = self._value_or_default(frame, 'lineNumber', '')
file = self._value_or_default(frame, 'fileName', '')
if line:
file = "%s:%s" % (file, line)
meth = self._value_or_default(frame, 'methodName', '')
if 'className' in frame:
meth = "%s.%s" % (frame['className'], meth)
msg = " at %s (%s)"
msg = msg % (meth, file)
stacktrace.append(msg)
except TypeError:
pass
if exception_class == ErrorInResponseException:
raise exception_class(response, message)
elif exception_class == UnexpectedAlertPresentException:
alert_text = None
if 'data' in value:
alert_text = value['data'].get('text')
elif 'alert' in value:
alert_text = value['alert'].get('text')
raise exception_class(message, screen, stacktrace, alert_text)

raise exception_class(message, screen, stacktrace)
E selenium.common.exceptions.WebDriverException: Message: An unknown server-side error occurred while processing the command. Original error: An unknown server-side error occurred while processing the command. Original error: unknown error: Failed to get sockets matching: @weblayer_devtools_remote_.*17062
E (make sure the app has its WebView/WebLayer configured for debugging)

/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/selenium/webdriver/remote/errorhandler.py:242: WebDriverException

Assertion failed

Assertion failed

Assertion failed

共收到 7 条回复 时间 点赞

可以关掉 X5 开关的,直接 Disable 掉,好像就不用切换也能获取到元素。

2楼 已删除
bingyan719 回复

是在代码里面关闭吗。有没有相应的代码呢

代码报错中有提示 make sure the app has its WebView/WebLayer configured for debugging
尝试让开发人员帮你在 APP 源码中加入:WebView.setWebContentsDebuggingEnabled(true);
good luck

GoodLuck 回复

应用里面有很多 webview 引擎。有 x5 的,也有原的。在原生那里用你说的方法开启了。但是在 x5 那里没有这个方法,所以开启不了。但是通过 tbs studio 以及 x5 提供的 debug.qq.com 已经开启了 debug 模式。是我哪里还没设置对吗

原因是:

Failed to get sockets matching: @weblayer_devtools_remote_.*17062

解释:

webview 会默认在手里里面开启一个 unix 套接字,当你切换进去 webview 时,appium 底层需要去找这个套接字,找到了就能够切换进去,找不到就切换不进去,appium 很明显按照上面的匹配规则去寻找的,所以你要找自己手机里面的基于腾讯 x5 的套接字满足上面的匹配规则吗,然后去想想解决问题的办法

残枫 回复

哇,这个真的是知识盲区。关于通信这块一无所知。。。。

盐咖啡 回复

options.setExperimentalOption("androidProcess", "com.tencent.mm:tools")
capability.setCapability(ChromeOptions.CAPABILITY, options)
来自大佬的代码 自己转换下 https://testerhome.com/topics/6954
Good Luck
