书接上回,各表两支
ubuntu16.04.3 python 多版本改造与 HttpRunner 部署

启动demo server

http://httprunner.readthedocs.io/en/latest/quickstart.html
项目中的tests目录有一个api_server.py 接口API样例服务

为了得到该api_server.py 先git该项目

cmd@TR:~/workspace/git$ git clone https://github.com/HttpRunner/HttpRunner.git
正克隆到 'HttpRunner'...
remote: Counting objects: 2226, done.
remote: Compressing objects: 100% (29/29), done.
remote: Total 2226 (delta 39), reused 66 (delta 38), pack-reused 2156
接收对象中: 100% (2226/2226), 687.89 KiB | 273.00 KiB/s, 完成.
处理 delta : 100% (1616/1616), 完成.
检查连接... 完成。
cmd@TR:~/workspace/git$ ls
AppCrawler fcitx-qt5 HttpRunner macaca-java-biz-sample PatatiumAppUi wd.java
cmd@TR:~/workspace/git$ cd HttpRunner/
cmd@TR:~/workspace/git/HttpRunner$ ls -al
总用量 64
drwxrwxr-x 7 cmd cmd 4096 12 22 14:16 .
drwxrwxrwx 8 cmd cmd 4096 12 22 14:16 ..
drwxrwxr-x 4 cmd cmd 4096 12 22 14:16 docs
drwxrwxr-x 2 cmd cmd 4096 12 22 14:16 examples
drwxrwxr-x 8 cmd cmd 4096 12 22 14:16 .git
-rw-rw-r-- 1 cmd cmd 133 12 22 14:16 .gitignore
drwxrwxr-x 2 cmd cmd 4096 12 22 14:16 httprunner
-rw-rw-r-- 1 cmd cmd 1064 12 22 14:16 LICENSE
-rw-rw-r-- 1 cmd cmd 75 12 22 14:16 main-ate.py
-rw-rw-r-- 1 cmd cmd 81 12 22 14:16 main-locust.py
-rw-rw-r-- 1 cmd cmd 43 12 22 14:16 MANIFEST.in
-rw-rw-r-- 1 cmd cmd 3022 12 22 14:16 README.rst
-rw-rw-r-- 1 cmd cmd 44 12 22 14:16 requirements.txt
-rw-rw-r-- 1 cmd cmd 1258 12 22 14:16 setup.py
drwxrwxr-x 4 cmd cmd 4096 12 22 14:16 tests
-rw-rw-r-- 1 cmd cmd 259 12 22 14:16 .travis.yml

然后到pyenv363环境启动服务 ,需要Flask-Script支持

(pyenv363) cmd@TR:~$ pip install Flask-Script
Collecting Flask-Script
Downloading Flask-Script-2.0.6.tar.gz (43kB)
100% |████████████████████████████████| 51kB 62kB/s
Requirement already satisfied: Flask in ./.pyenv/versions/3.6.3/envs/pyenv363/lib/python3.6/site-packages (from Flask-Script)
Requirement already satisfied: Jinja2>=2.4 in ./.pyenv/versions/3.6.3/envs/pyenv363/lib/python3.6/site-packages (from Flask->Flask-Script)
Requirement already satisfied: click>=2.0 in ./.pyenv/versions/3.6.3/envs/pyenv363/lib/python3.6/site-packages (from Flask->Flask-Script)
Requirement already satisfied: itsdangerous>=0.21 in ./.pyenv/versions/3.6.3/envs/pyenv363/lib/python3.6/site-packages (from Flask->Flask-Script)
Requirement already satisfied: Werkzeug>=0.7 in ./.pyenv/versions/3.6.3/envs/pyenv363/lib/python3.6/site-packages (from Flask->Flask-Script)
Requirement already satisfied: MarkupSafe>=0.23 in ./.pyenv/versions/3.6.3/envs/pyenv363/lib/python3.6/site-packages (from Jinja2>=2.4->Flask->Flask-Script)
Installing collected packages: Flask-Script
Running setup.py install for Flask-Script ... done
Successfully installed Flask-Script-2.0.6

尝试启动,报找不到

(pyenv363) cmd@TR:~$ export FLASK_APP=tests/api_server.py
(pyenv363) cmd@TR:~$ flask run
Usage: flask run [OPTIONS]
Error: The file/path provided (tests/api_server.py) does not appear to exist. Please verify the path is correct. If app is not on PYTHONPATH, ensure the extension is .py

此处注意 一定要先cd切换到该目录/workspace/git/HttpRunner/ 也就是tests目录的上一级处再执行export和flask run 方可正常开启模拟API Server

(pyenv363) cmd@TR:~/workspace/git/HttpRunner$ export FLASK_APP=tests/api_server.py
(pyenv363) cmd@TR:~/workspace/git/HttpRunner$ flask run
* Serving Flask app "tests.api_server"
* Running on http://127.0.0.1:5000/ (Press CTRL+C to quit)
127.0.0.1 - - [26/Dec/2017 10:15:01] "GET /api/users/1000 HTTP/1.1" 401 -
127.0.0.1 - - [26/Dec/2017 10:15:28] "GET /api/get-token HTTP/1.1" 405 -

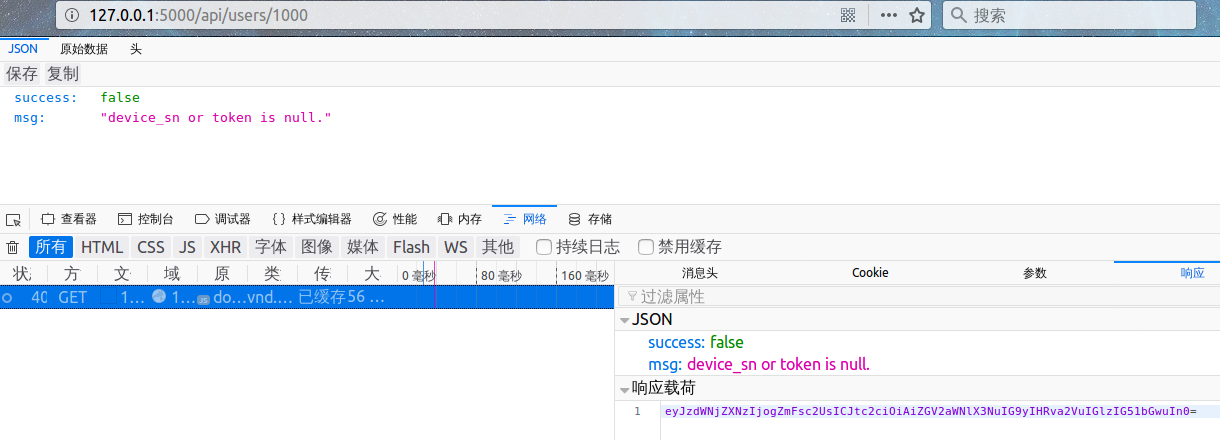

然后才可以正常访问

http://127.0.0.1:5000/api/get-token
http://127.0.0.1:5000/api/users/1000

测试目录存放样例API Server
https://github.com/HttpRunner/HttpRunner/tree/master/tests

样例API Server的test case目录
https://github.com/HttpRunner/HttpRunner/tree/master/examples

编辑测试脚本

样例服务的存放脚本在路径:

(pyenv363) cmd@TR:~/workspace/git/HttpRunner/examples$ ls

debugtalk.py quickstart-demo-rev-0.yml quickstart-demo-rev-2.yml

init.py quickstart-demo-rev-1.yml quickstart-demo-rev-3.yml

执行ate quickstart-demo-rev-1.yml或httprunner quickstart-demo-rev-1.yml 执行test case

(pyenv363) cmd@TR:~/workspace/git/HttpRunner/examples$ httprunner quickstart-demo-rev-1.yml

Running tests...
----------------------------------------------------------------------
get token ... INFO:root: Start to POST http://127.0.0.1:5000/api/get-token
INFO:root: status_code: 200, response_time: 25 ms, response_length: 46 bytes
OK (0.026967)s
create user which does not exist ... INFO:root: Start to POST http://127.0.0.1:5000/api/users/1001
INFO:root: status_code: 201, response_time: 5 ms, response_length: 54 bytes
OK (0.005989)s
----------------------------------------------------------------------
Ran 2 tests in 0.033s
OK

可自行测试学习

我们也可以自行测试某一网站比如H5 常规注册API
访问地址 http://m.aicai.com/m/register.do?agentId=14759&vt=5 添加账号 非法密码 手机号 提交 立即注册
请求网址 http://m.aicai.com/m/saveSimpleRegister.do?agentId=14759&vt=5

1.使用postman的Postman Interceptor 来捕获请求

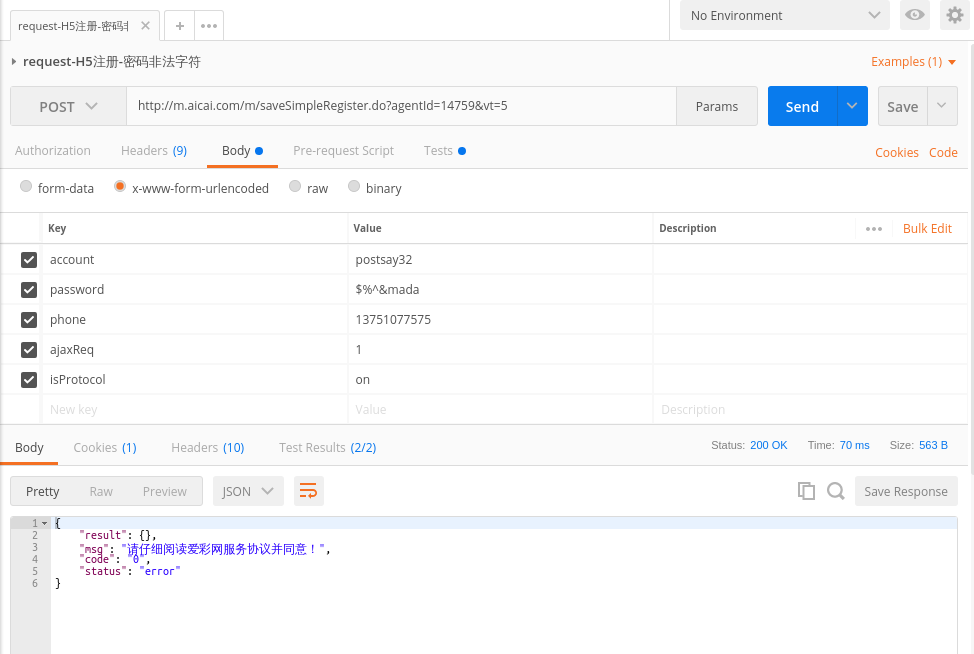

下图为postman的 常规注册测试。你也可以用它来查看请求 请求头Headers 请求体Body 字段。同时HttpRunner今后也将支持
Integrate with PostMan: convert Postman Collection Format to YAML testcases.

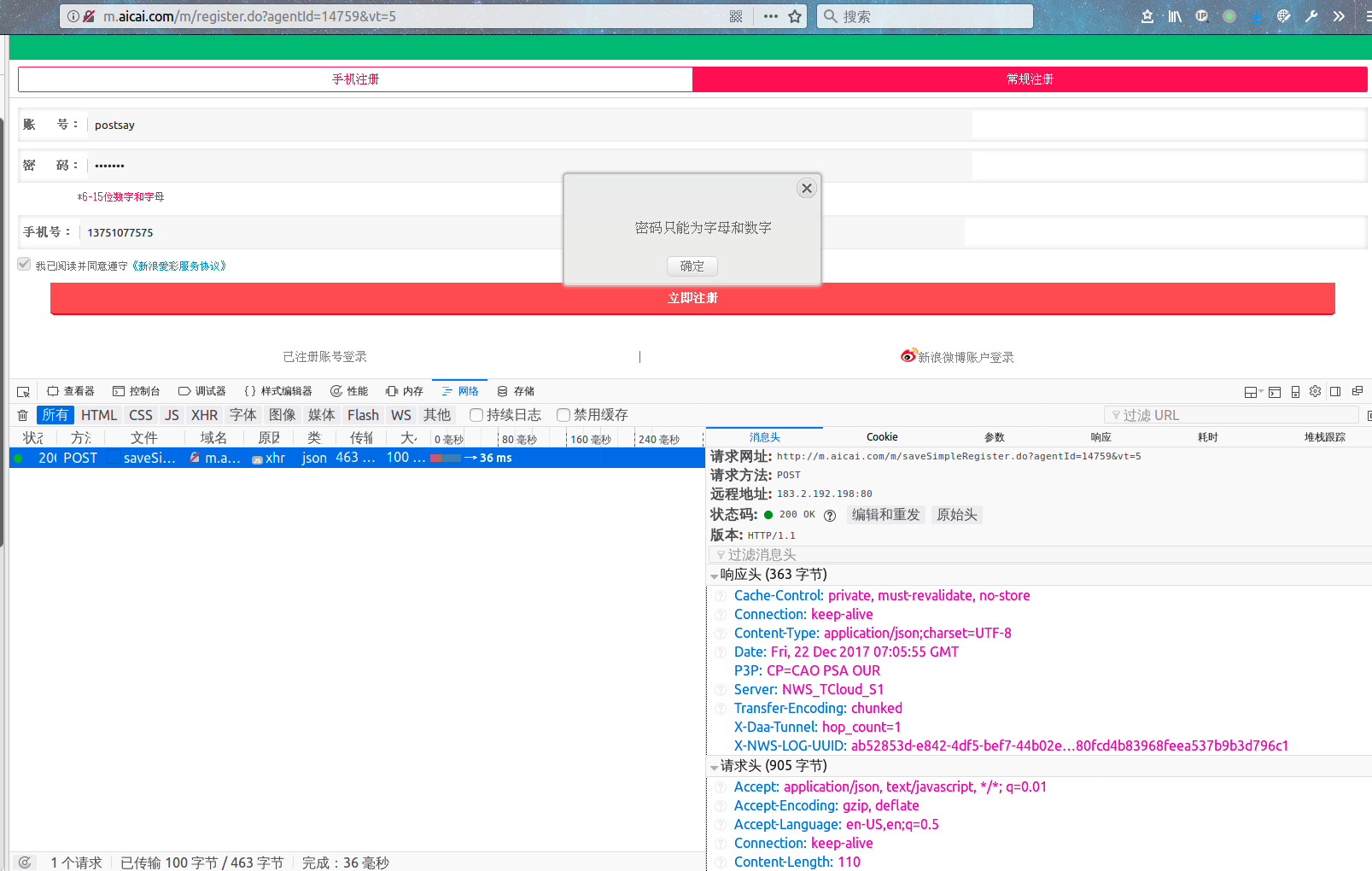

2. 使用新版firefox57.0.1提供的 web开发者工具

已经替代firebug

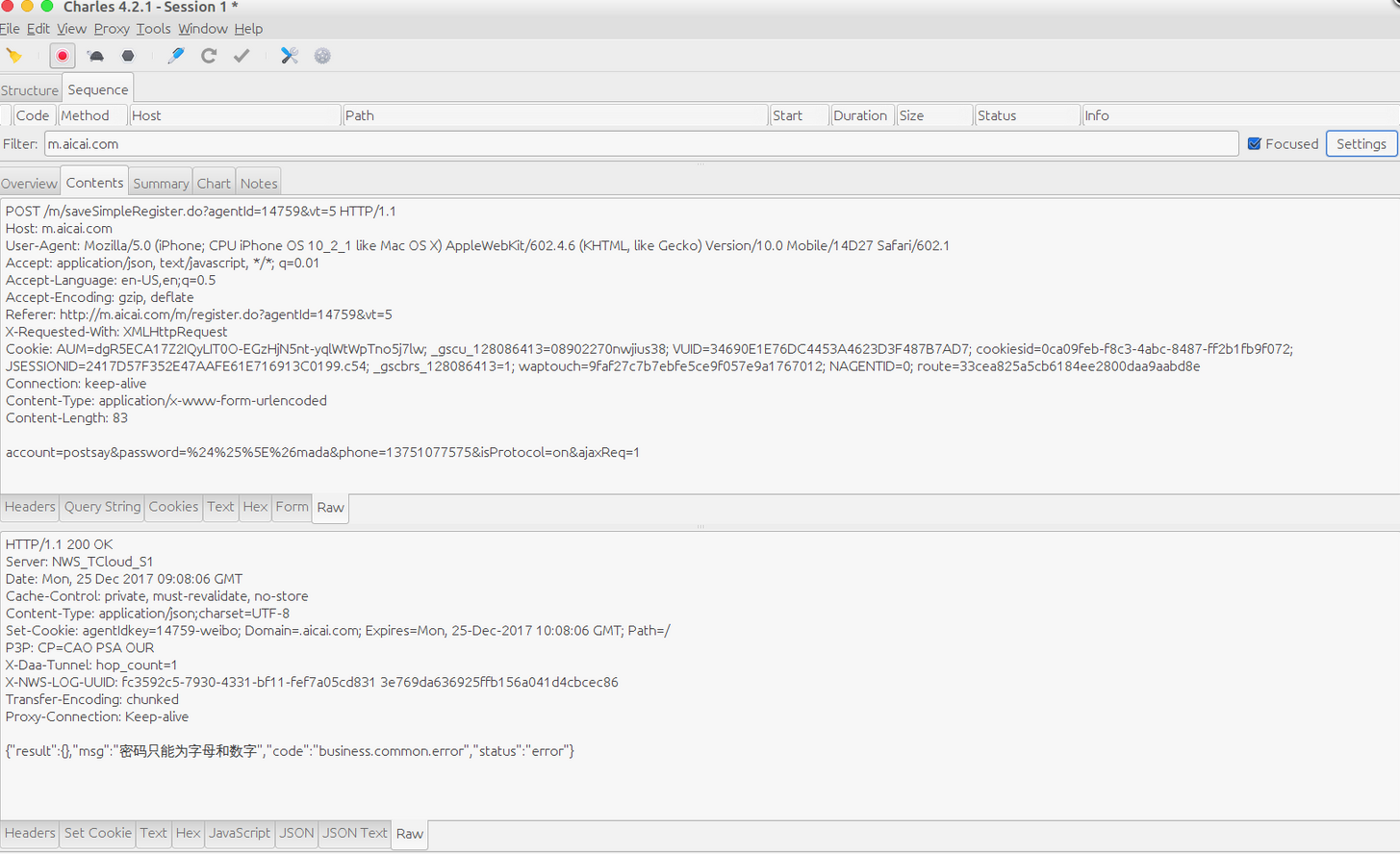

3.使用charles

https://www.charlesproxy.com/

比如根据以上工具查看接口请求与响应得到的信息 我们可以如下:

- test:
name: regist user which passwd is wrong
request:
url: http://m.aicai.com/m/saveSimpleRegister.do?agentId=14759&vt=5
method: POST
headers:
User-Agent: 'iOS/10.3'
token: content.token
json:
account: "postsay1"
password: "%^&*()"
phone: "13751077575"
isProtocol: on
ajaxReq: 1
validate:
# - {"check": "status_code", "comparator": "eq", "expect": 200}
# - {"check": "content.status", "comparator": "eq", "expect": error}
# - {"check": "content.msg", "comparator": "str_eq", "expect": 请仔细阅读爱彩网服务协议并同意!}
- eq: ["status_code" , 200]
- eq: ["content.status" , error]
- eq: ["content.msg" , 请仔细阅读爱彩网服务协议并同意!]

(注释掉的valiadate 两种写法都有效)

保存脚本到某一路径下,切换到该路径下执行httprunner命令或ate命令即可执行testcase脚本

(pyenv363) cmd@TR:~/scripts/locust$ httprunner ac-h5.yml
Running tests...
----------------------------------------------------------------------
regist user which passwd is wrong ... INFO:root: Start to POST http://m.aicai.com/m/saveSimpleRegister.do?agentId=14759&vt=5
INFO:root: status_code: 200, response_time: 46 ms, response_length: 98 bytes
OK (0.048034)s
----------------------------------------------------------------------
Ran 1 test in 0.048s
OK
Generating HTML reports...
Template is not specified, load default template instead.
Reports generated: /home/cmd/scripts/locust/reports/ac-h5/2017-12-25-14-29-21.html

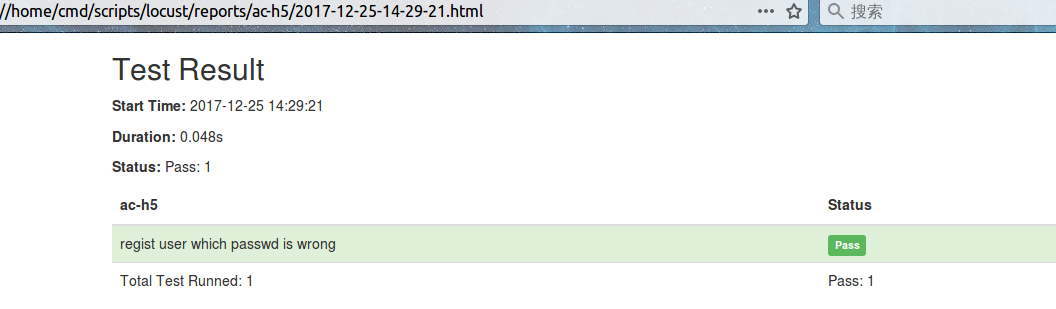

同时有结果报告在脚本同目录下。

locusts接口性能测试

http://httprunner.readthedocs.io/en/latest/load-test.html
为了支持locusts做性能测试 我们还需要单独安装下locusts


(pyenv363) cmd@TR:~$ pip install git+https://github.com/locustio/locust.git@master#egg=locustio

(pyenv363) cmd@TR:~$ locusts -V

[2017-12-22 17:15:15,642] TR/INFO/stdout: Locust 0.8.1

[2017-12-22 17:15:15,642] TR/INFO/stdout:

https://testerhome.com/topics/9832
既然说了已经包含了locust为什么还要单独安装 看这篇即可明白。作者只是写了个locustfile.py。

第二种,就是生成locustfile.py这样一个中间文件,然后将文件路径传给Locust。这样的好处在于我们可以不改变Locust的任何地方,直接对其进行使用。与Locust的传统使用方式差异在于,之前我们是在Terminal中通过参数启动Locust,而现在我们是在ApiTestEngine框架中通过Python代码启动Locust。

具体地,我在setup.py的entry_points中新增了一个命令locusts,并绑定了对应的程序入口。

最后

安装httprunner后,系统中就具有了locusts命令,使用方式跟Locust框架的locust几乎完全相同,我们完全可以使用locusts命令代替原生的locust命令。

例如,下面的命令执行效果与locust完全一致。

$ locusts -V
$ locusts -h
$ locusts -f locustfile.py
$ locusts -f locustfile.py --master -P 8088
$ locusts -f locustfile.py --slave &

差异在于,locusts具有更加丰富的功能。

在httprunner中编写的YAML/JSON格式的接口测试用例文件,直接运行就可以启动Locust运行性能测试。

实际有点差别 一个是 locust 一个是httprunner 的locusts 多了个s

如果觉得我的文章对您有用,请随意打赏。您的支持将鼓励我继续创作!
共收到 5 条回复 时间 点赞

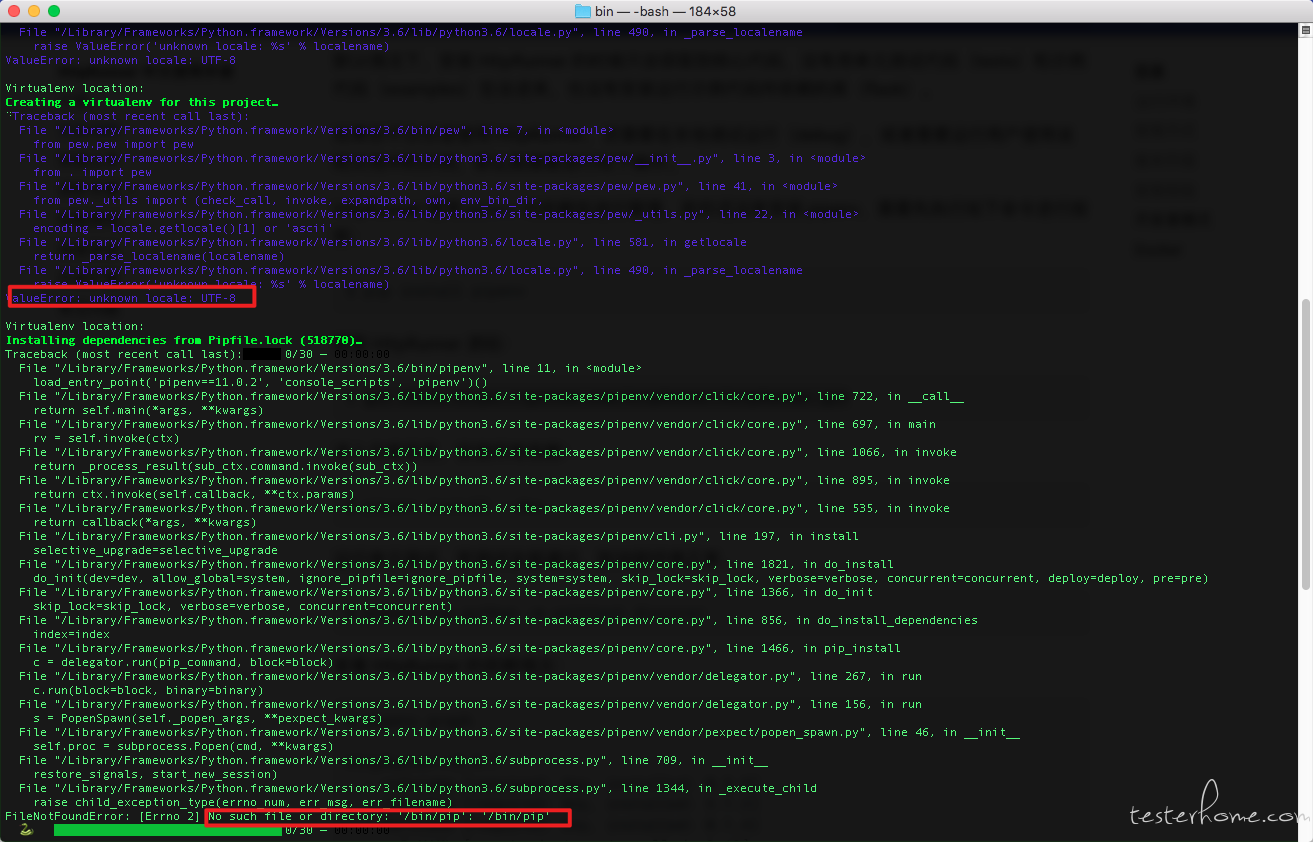

运行pipenv install --dev 时,出错如下,该是怎么办呢??
