下文将会详细描述 idea+maven 的方式搭建 jmeter(v5.3) 的二次开发环境

idea、jdk、maven 配置自行百度

一、下载 jmeter 源码
如下图:

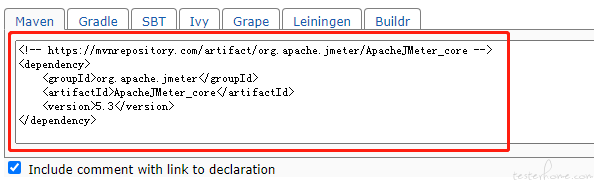

二、查看 jmeter core 坐标

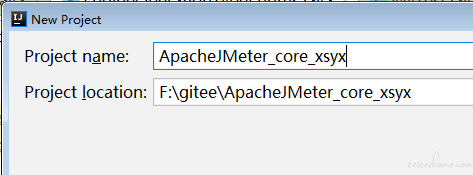

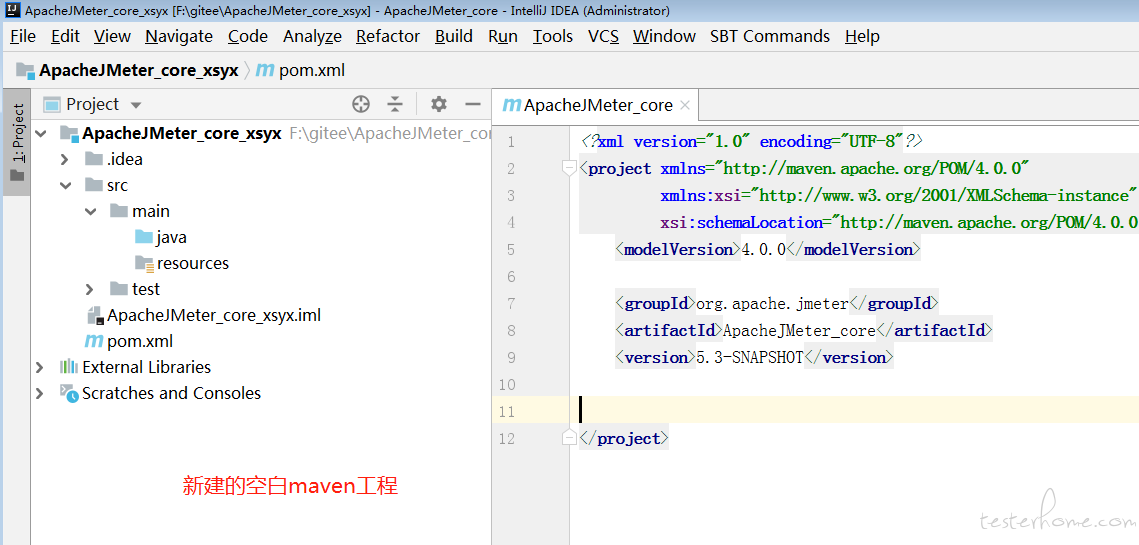

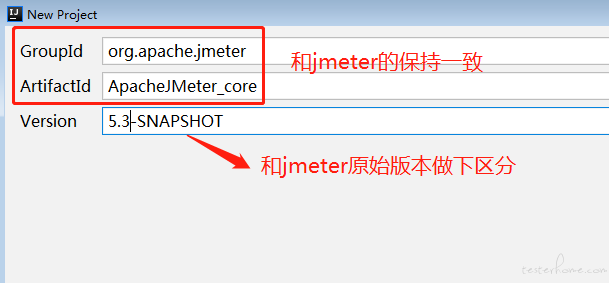

三、新建 jmeter 工程

四、配置

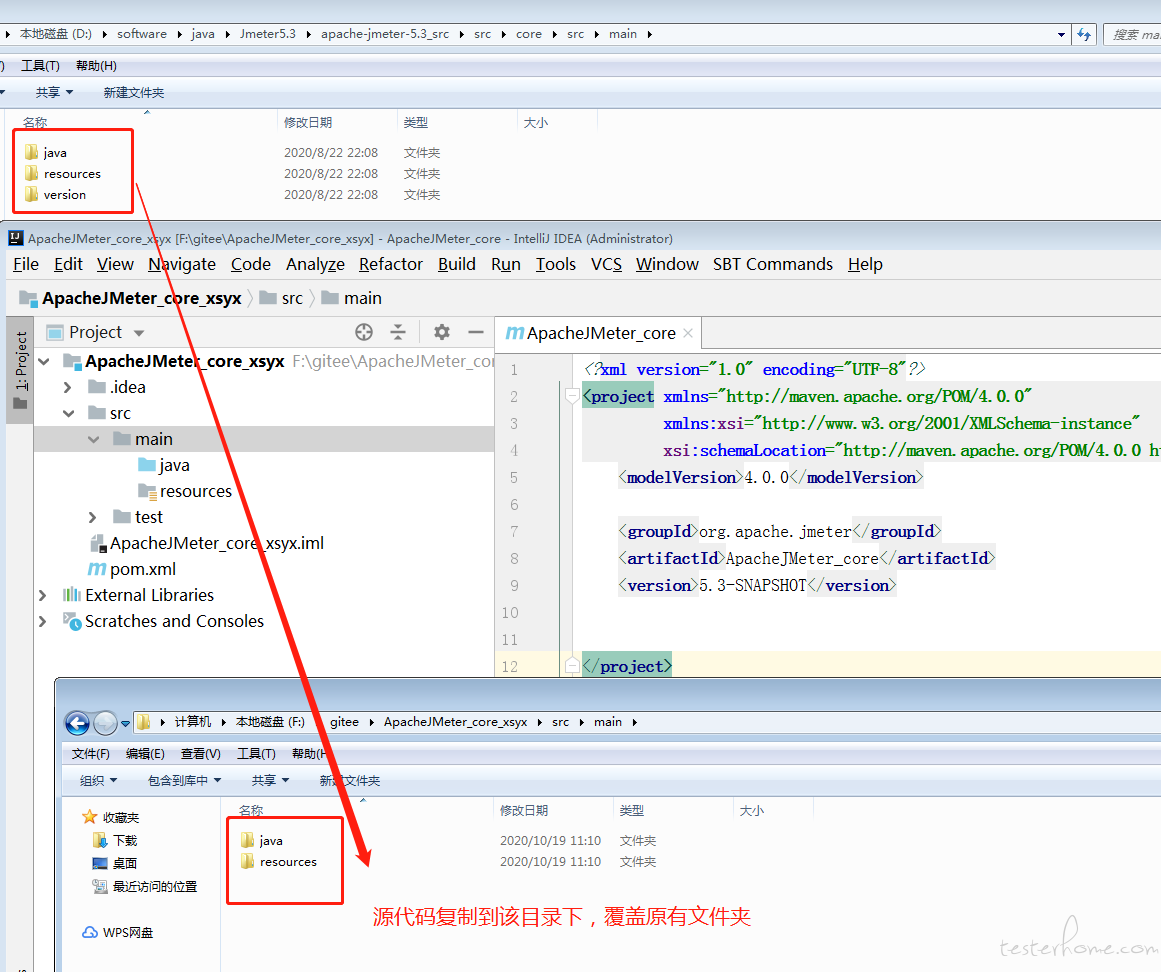

1. 复制源代码

2. 添加原 jmeter core 的依赖库

<dependencies>
    <dependency>
        <groupId>org.apache.jmeter</groupId>
        <artifactId>ApacheJMeter</artifactId>
        <version>5.3</version>
    </dependency>
    <dependency>
        <groupId>org.apache.jmeter</groupId>
        <artifactId>jorphan</artifactId>
        <version>5.3</version>
    </dependency>
    <dependency>
        <groupId>bsf</groupId>
        <artifactId>bsf</artifactId>
        <version>2.4.0</version>
    </dependency>
    <dependency>
        <groupId>com.fifesoft</groupId>
        <artifactId>rsyntaxtextarea</artifactId>
        <version>3.1.0</version>
    </dependency>
    <dependency>
        <groupId>net.sf.jtidy</groupId>
        <artifactId>jtidy</artifactId>
        <version>r938</version>
    </dependency>
    <dependency>
        <groupId>com.thoughtworks.xstream</groupId>
        <artifactId>xstream</artifactId>
        <version>1.4.11.1</version>
    </dependency>
    <dependency>
        <groupId>org.apache.logging.log4j</groupId>
        <artifactId>log4j-1.2-api</artifactId>
        <version>2.13.1</version>
    </dependency>
    <dependency>
        <groupId>org.apache.logging.log4j</groupId>
        <artifactId>log4j-api</artifactId>
        <version>2.13.1</version>
    </dependency>
    <dependency>
        <groupId>org.apache.logging.log4j</groupId>
        <artifactId>log4j-core</artifactId>
        <version>2.13.1</version>
    </dependency>
    <dependency>
        <groupId>org.apache.logging.log4j</groupId>
        <artifactId>log4j-slf4j-impl</artifactId>
        <version>2.13.1</version>
    </dependency>
    <dependency>
        <groupId>org.apiguardian</groupId>
        <artifactId>apiguardian-api</artifactId>
        <version>1.1.0</version>
    </dependency>
    <dependency>
        <groupId>oro</groupId>
        <artifactId>oro</artifactId>
        <version>2.0.8</version>
    </dependency>
    <dependency>
        <groupId>xalan</groupId>
        <artifactId>xalan</artifactId>
        <version>2.7.2</version>
    </dependency>
    <dependency>
        <groupId>net.sf.saxon</groupId>
        <artifactId>Saxon-HE</artifactId>
        <version>9.9.1-7</version>
    </dependency>
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-annotations</artifactId>
        <version>2.10.3</version>
    </dependency>
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-core</artifactId>
        <version>2.10.3</version>
    </dependency>
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-databind</artifactId>
        <version>2.10.3</version>
    </dependency>
    <dependency>
        <groupId>com.formdev</groupId>
        <artifactId>svgSalamander</artifactId>
        <version>1.1.2.1</version>
    </dependency>
    <dependency>
        <groupId>com.github.ben-manes.caffeine</groupId>
        <artifactId>caffeine</artifactId>
        <version>2.8.0</version>
    </dependency>
    <dependency>
        <groupId>com.github.weisj</groupId>
        <artifactId>darklaf-core</artifactId>
        <version>2.1.1</version>
    </dependency>
    <dependency>
        <groupId>com.github.weisj</groupId>
        <artifactId>darklaf-theme</artifactId>
        <version>2.1.1</version>
    </dependency>
    <dependency>
        <groupId>com.github.weisj</groupId>
        <artifactId>darklaf-property-loader</artifactId>
        <version>2.1.1</version>
    </dependency>
    <dependency>
        <groupId>com.miglayout</groupId>
        <artifactId>miglayout-swing</artifactId>
        <version>5.2</version>
    </dependency>
    <dependency>
        <groupId>commons-codec</groupId>
        <artifactId>commons-codec</artifactId>
        <version>1.14</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/commons-io/commons-io -->
    <dependency>
        <groupId>commons-io</groupId>
        <artifactId>commons-io</artifactId>
        <version>2.6</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-lang3</artifactId>
        <version>3.10</version>
    </dependency>

    <dependency>
        <groupId>commons-collections</groupId>
        <artifactId>commons-collections</artifactId>
        <version>3.2.2</version>
    </dependency>
    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-math3</artifactId>
        <version>3.6.1</version>
    </dependency>
    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-text</artifactId>
        <version>1.8</version>
    </dependency>
    <dependency>
        <groupId>org.apache.tika</groupId>
        <artifactId>tika-core</artifactId>
        <version>1.24.1</version>
        <exclusions>
            <exclusion>
                <artifactId>*</artifactId>
                <groupId>*</groupId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>org.apache.xmlgraphics</groupId>
        <artifactId>xmlgraphics-commons</artifactId>
        <version>2.3</version>
    </dependency>
    <dependency>
        <groupId>org.freemarker</groupId>
        <artifactId>freemarker</artifactId>
        <version>2.3.30</version>
    </dependency>
    <dependency>
        <groupId>org.jodd</groupId>
        <artifactId>jodd-core</artifactId>
        <version>5.0.13</version>
    </dependency>
    <dependency>
        <groupId>org.jodd</groupId>
        <artifactId>jodd-props</artifactId>
        <version>5.0.13</version>
    </dependency>
    <dependency>
        <groupId>org.mozilla</groupId>
        <artifactId>rhino</artifactId>
        <version>1.7.12</version>
    </dependency>
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>jcl-over-slf4j</artifactId>
        <version>1.7.30</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy-datetime</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy-jmx</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy-json</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy-jsr223</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy-sql</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.codehaus.groovy</groupId>
        <artifactId>groovy-templates</artifactId>
        <version>3.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.apache.tika</groupId>
        <artifactId>tika-parsers</artifactId>
        <version>1.24.1</version>
        <exclusions>
            <exclusion>
                <artifactId>*</artifactId>
                <groupId>*</groupId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>xerces</groupId>
        <artifactId>xercesImpl</artifactId>
        <version>2.12.0</version>
    </dependency>
    <dependency>
        <groupId>xml-apis</groupId>
        <artifactId>xml-apis</artifactId>
        <version>1.4.01</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>fastjson</artifactId>
        <version>1.2.66</version>
    </dependency>
    <dependency>
        <groupId>org.apache.httpcomponents</groupId>
        <artifactId>httpclient</artifactId>
        <version>4.5.12</version>
    </dependency>
</dependencies>

3. build 标签

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.8.1</version>
            <configuration>
                <source>1.8</source>
                <target>1.8</target>
                <encoding>utf-8</encoding>
            </configuration>
        </plugin>
    </plugins>
    <resources>
        <resource>
            <directory>src/main/resources</directory>
            <includes>
                <include>**/*.*</include>
            </includes>
            <filtering>true</filtering>
        </resource>
        <resource>
            <directory>src/main/java</directory>
            <includes>
                <include>**/*.html</include>
            </includes>
            <filtering>true</filtering>
        </resource>
    </resources>
</build>

4. 修改 JMeterUtils.java

在做了如上的一些操作后,还需要对 JMeterUtils.java 类的 2 个方法做处理,如下
修改前:

public static String getJMeterVersion() {
    return JMeterVersion.getVERSION();
}

public static String getJMeterCopyright() {
    return JMeterVersion.getCopyRight();
}

修改后:

public static String getJMeterVersion() {
    return "5.3";
}

public static String getJMeterCopyright() {
    return "Copyright (c) 1998-@YEAR@ The Apache Software Foundation";
}

做完如上的步骤后:jmeter core 模块的二次开发环境即搭建完毕
注:
a.若要搭建 jmeter 其他模块开发环境,可依法炮制;
b.打包后,替换 $JMETER_HOME/lib/ext/ApacheJMeter_core.jar 包(唯一的问题是会导致 jmeter GUI 界面文字乱码,而一般是命令行模式下执行,此小问题可忽略)
