自动化工具 基于 wiremock 的自动化 mock&接口自动化录制工具

小酷 · 2020年03月16日 · 523 次阅读

mock_demo

一、介绍

基于 wiremock 的自动化 mock&接口自动化录制工具

二、背景

执行接口自动化用例时,调用 A 服务接口报错,后台定位到是 A 服务调用 B 服务的问题,需要解除 A 服务对 B 服务的依赖

三、实现方式

使用工具:wiremock

具体实现:将网关请求导向 wiremock 服务,再由 wiremock 代理到网关,在 wiremock 服务实现请求录制&回放,请求路由的功能

github 地址: https://github.com/xglh/mock_demo

service_demo 目录为被测服务
wiremock 目录为 wiremock 服务
case 目录为自动化脚本

1)录制模式下,录制全量请求与响应数据 (mapping 文件),为 mock 做准备

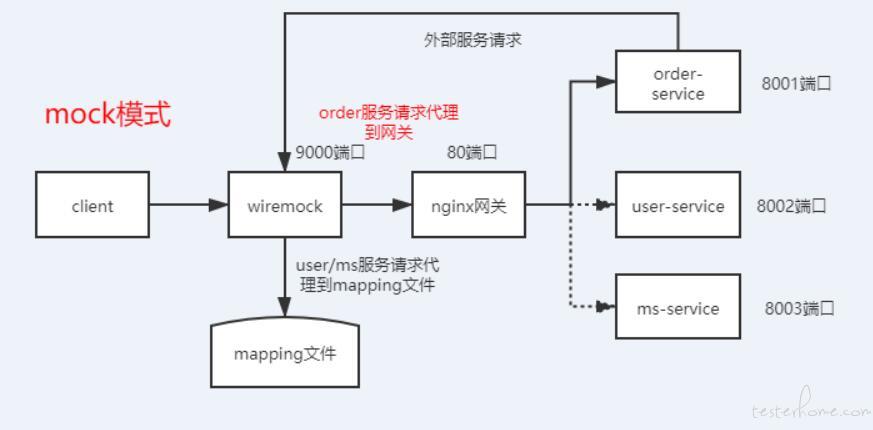

2)mock 模式下,将 order 服务请求代理到网关,user/ms 服务代理到 mapping 文件

四、手动操作步骤

预置场景:
client 端请求 http://{{mock_host}}/order-service/order/detail/r001,order 服务触发请求 user/ms 外部服务接口
mock_host 代表 localhost:9000 变量

1、启动服务

启动 wiremock,nginx,order-service,user-service,ms-service

2、将 wiremock 代理到 nginx 网关,开启录制模式

# 开始录制
POST http://{{mock_host}}/__admin/recordings/start
body:
{
   "targetBaseUrl": "http://localhost:80"   # 所有请求代理到网关
}

# 获取mock服务状态
GET http://{{mock_host}}/__admin/recordings/status
# 返回结果:
{
  "status": "Recording"
}

3、client 发送请求

# 发送客户端请求
GET http://{{mock_host}}/order-service/order/detail/r001

# 返回结果
{
    "code": 0,
    "msg": "success",
    "data": {
        "orderId": "r001",
        "userName": "光头强",
        "productName": "火花塞"
    }
}

4、停止 wiremock 录制,获取到录制到的 mapping 文件

# 停止wiremock录制&获取mapping文件
POST http://{{mock_host}}/__admin/recordings/stop

# 返回结果
{
  "mappings": [
    {
      "id": "89fce797-ce35-497d-9d7c-fc14b1533be3",
      "name": "user-service_user_detail_u001",
      "request": {
        "url": "/user-service/user/detail/u001",
        "method": "GET"
      },
      "response": {
        "status": 200,
        "body": "{\"code\": 0, \"msg\": \"success\", \"data\": {\"userId\": \"u001\", \"userName\": \"\光\头\强\"}}",
        "headers": {
          "Server": "nginx/1.17.4",
          "Date": "Mon, 16 Mar 2020 02:33:07 GMT",
          "Content-Type": "application/json;charset=utf-8",
          "Connection": "keep-alive"
        }
      },
      "uuid": "89fce797-ce35-497d-9d7c-fc14b1533be3",
      "persistent": true
    },
    {
      "id": "285c6792-3127-406b-843c-7f0352103c23",
      "name": "ms-service_product_detail_p001",
      "request": {
        "url": "/ms-service/product/detail/p001",
        "method": "GET"
      },
      "response": {
        "status": 200,
        "body": "{\"code\": 0, \"msg\": \"success\", \"data\": {\"productId\": \"p001\", \"productName\": \"\火\花\塞\"}}",
        "headers": {
          "Server": "nginx/1.17.4",
          "Date": "Mon, 16 Mar 2020 02:33:07 GMT",
          "Content-Type": "application/json;charset=utf-8",
          "Connection": "keep-alive"
        }
      },
      "uuid": "285c6792-3127-406b-843c-7f0352103c23",
      "persistent": true
    },
    {
      "id": "daa18bdc-c13f-416f-bbf0-429a7259fcfc",
      "name": "order-service_order_detail_r001",
      "request": {
        "url": "/order-service/order/detail/r001",
        "method": "GET"
      },
      "response": {
        "status": 200,
        "body": "{\"code\": 0, \"msg\": \"success\", \"data\": {\"orderId\": \"r001\", \"userName\": \"\光\头\强\", \"productName\": \"\火\花\塞\"}}",
        "headers": {
          "Server": "nginx/1.17.4",
          "Date": "Mon, 16 Mar 2020 02:33:07 GMT",
          "Content-Type": "application/json;charset=utf-8",
          "Connection": "keep-alive"
        }
      },
      "uuid": "daa18bdc-c13f-416f-bbf0-429a7259fcfc",
      "persistent": true
    }
  ]
}

5、将 order 服务的 mapping 文件剔除,并重新设置服务转发规则:order 服务代理到本地,user/ms 服务代理到 mapping

# 开始录制
POST http://{{mock_host}}/__admin/recordings/start
body:
{
   "targetBaseUrl": "http://localhost:80"   # 所有请求代理到网关
}


# 清空mapping文件
DELETE http://{{mock_host}}/__admin/mappings


# 设置order服务代理,/order-service请求代理到nginx网关
POST http://{{mock_host}}/__admin/mappings
body:
 {
    "request": {
        "urlPattern": "^/order-service/.*"
    },
    "response": {
        "proxyBaseUrl": "http://localhost:80"
    }
}


# 设置user服务mapping文件,将返回字段加上mock标记予以区别
POST http://{{mock_host}}/__admin/mappings
body:
{
      "id": "89fce797-ce35-497d-9d7c-fc14b1533be3",
      "name": "user-service_user_detail_u001",
      "request": {
        "url": "/user-service/user/detail/u001",
        "method": "GET"
      },
      "response": {
        "status": 200,
        "body": "{\"code\": 0, \"msg\": \"success\", \"data\": {\"userId\": \"u001\", \"userName\": \"光头强_mock\"}}",
        "headers": {
          "Server": "nginx/1.17.4",
          "Date": "Mon, 16 Mar 2020 02:33:07 GMT",
          "Content-Type": "application/json;charset=utf-8",
          "Connection": "keep-alive"
        }
      },
      "uuid": "89fce797-ce35-497d-9d7c-fc14b1533be3",
      "persistent": true
    }


# 设置ms服务mapping文件,将返回字段加上mock标记予以区别
POST http://{{mock_host}}/__admin/mappings
body
{
      "id": "285c6792-3127-406b-843c-7f0352103c23",
      "name": "ms-service_product_detail_p001",
      "request": {
        "url": "/ms-service/product/detail/p001",
        "method": "GET"
      },
      "response": {
        "status": 200,
        "body": "{\"code\": 0, \"msg\": \"success\", \"data\": {\"productId\": \"p001\", \"productName\": \"火花塞_mock\"}}",
        "headers": {
          "Server": "nginx/1.17.4",
          "Date": "Mon, 16 Mar 2020 02:33:07 GMT",
          "Content-Type": "application/json;charset=utf-8",
          "Connection": "keep-alive"
        }
      },
      "uuid": "285c6792-3127-406b-843c-7f0352103c23",
      "persistent": true
    }

# 停止user,ms服务,再次发送客户端请求
GET http://{{mock_host}}/order-service/order/detail/r001

# 返回结果
{
    "code": 0,
    "msg": "success",
    "data": {
        "orderId": "r001",
        "userName": "光头强_mock",
        "productName": "火花塞_mock"
    }
}
# 返回字段带有mock标记

五、自动化 mock&接口自动化录制

将以上手动操作步骤用自动化脚本实现,并生成自动化脚本

1、在 case/play_and_record.py 执行 mock_start(),发送 client 请求
2、执行生成脚本方法,生成 case_002.py 脚本

生成脚本如下:

import requests
from case.mock_ops import mock_url, nginx_url, mock_start

class TestOrderClass:

    def setup(self):
        print('setup')
        mock_start()
        # 清空mapping文件
        path = '/__admin/mappings'
        requests.delete(mock_url + path)

        # 新增目标服务proxy规则
        body = {"request": {"urlPattern": "^/order-service/.*"}, "response": {"proxyBaseUrl": nginx_url}}
        response = requests.post(mock_url + path, json=body)
        assert response.status_code == 201

        # 新增mock服务mapping
        # 解除外部服务依赖
        body = {'id': 'abf13a9b-07b1-4157-acff-4256f6415874', 'name': 'user-service_user_detail_u001', 'request': {'url': '/user-service/user/detail/u001', 'method': 'GET'}, 'response': {'status': 200, 'body': '{"code": 0, "msg": "success", "data": {"userId": "u001", "userName": "光头强"}}', 'headers': {'Server': 'nginx/1.17.4', 'Date': 'Mon, 16 Mar 2020 03:46:30 GMT', 'Content-Type': 'application/json;charset=utf-8', 'Connection': 'keep-alive'}}, 'uuid': 'abf13a9b-07b1-4157-acff-4256f6415874', 'persistent': True}
        response = requests.post(mock_url + path, json=body)
        assert response.status_code == 201

        body = {'id': '4a154b49-1ae0-4f92-aadc-680814dae626', 'name': 'ms-service_product_detail_p001', 'request': {'url': '/ms-service/product/detail/p001', 'method': 'GET'}, 'response': {'status': 200, 'body': '{"code": 0, "msg": "success", "data": {"productId": "p001", "productName": "火花塞"}}', 'headers': {'Server': 'nginx/1.17.4', 'Date': 'Mon, 16 Mar 2020 03:46:30 GMT', 'Content-Type': 'application/json;charset=utf-8', 'Connection': 'keep-alive'}}, 'uuid': '4a154b49-1ae0-4f92-aadc-680814dae626', 'persistent': True}
        response = requests.post(mock_url + path, json=body)
        assert response.status_code == 201

    def teardown(self):
        print('teardown')
        # 清空mapping文件
        path = '/__admin/mappings'
        requests.delete(mock_url + path)

        # 恢复初始转发状态
        body = {"request": {"method": "ANY"}, "response": {"proxyBaseUrl": nginx_url}}
        response = requests.post(mock_url + path, json=body)
        assert response.status_code == 201

    def test(self):
        # 测试目标服务
        path = '/order-service/order/detail/r001'
        response = requests.get(mock_url + path)
        # {'code': 0, 'msg': 'success', 'data': {'orderId': 'r001', 'userName': '光头强', 'productName': '火花塞'}}
        assert response.status_code == 200, u'url={},req_body={},rsp_status_code={},rsp_body={}'.format(
            response.request.url, response.request.body, response.status_code, response.text)

自动化 mock 与接口自动化录制完成!!!

备注:
1、如果中间执行步骤出现问题请重新全部执行一遍
2、wiremock api 接口地址:http://{{mock_host}}/__admin/docs/
