前言

前段时间大版本对账功能，项目过程踩了不少坑，和开发讨论结果，得出更好的测试方法，由于测试时间短简单做了后端，最近有时间把功能完善，记录下自己的想法和思路

背景

1.对账系统场景复杂，涉及代扣、代付、退款等不同机构对账文件，对出差异需差错处理，通过正常的手段造不出所需场景
2.开发冒烟难度增加，无法覆盖测试提供的冒烟用例
3.bug 复现和回归难，通过正常跑数据改数据的手段，时间和产出不正比
4.后续换个人测试也需要对此块业务熟悉才能进行测试
5.大批量造数据

解决方案

不 mock 返回值，mock 系统数据流和机构对账文件

技术栈

• 后端
  • Django REST Framework
  • Celery
  • Redis
  • PooledDB
  • ThreadPoolExecutor
• 前端
  • Vue
  • Element-ui
  • Axios


功能思路

• 思路
  • 后端编写 mock 业务流，规定好 mock 文件的格式（一开始是请求，但是参数太多换成文件），mock 数据入业务系统后，把关键信息写入文件供下载和查询
• 功能
  • 增删改 mock 任务、上传 mock 文件、开始 mock 任务、结果（下载结果）

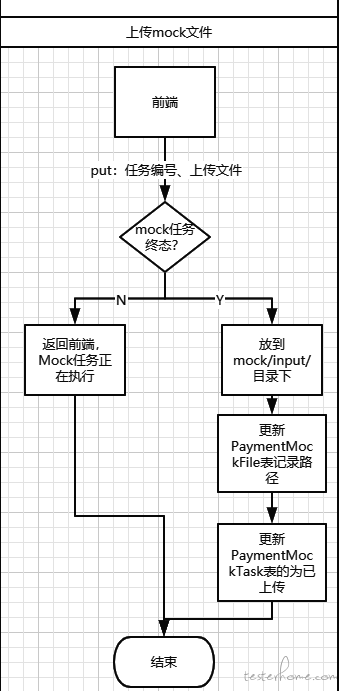

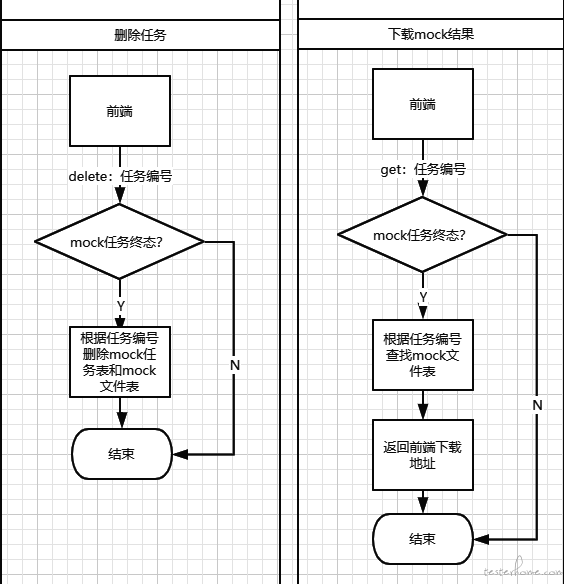

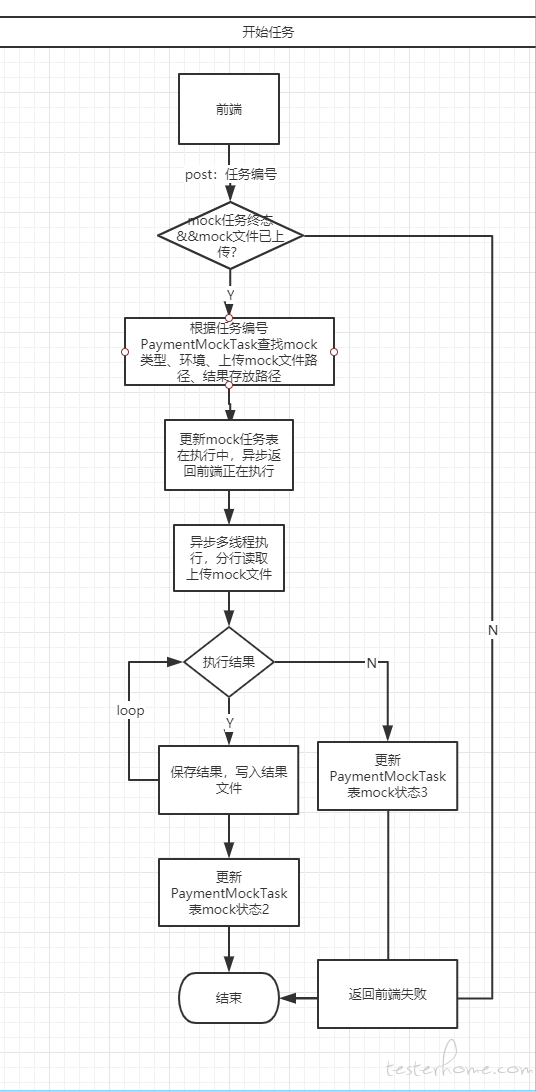

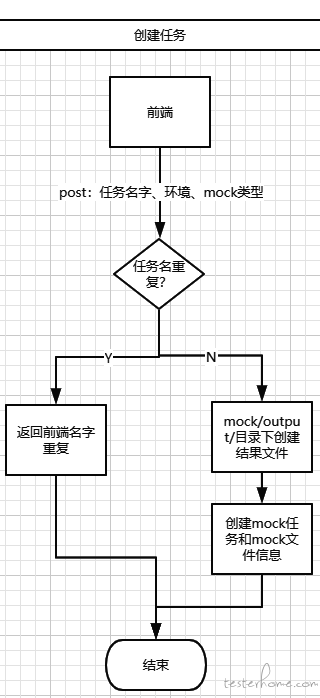

设计思路

核心代码 - 执行 mock 任务

import django
django.setup()

from celery.task import Task
from MockServer.settings import BASE_DIR
from mock_task.models import PaymentMockTask

from mock_data.recon.mockOrder import MockOrder
from mock_data.recon.mockReconFile import MockReconFile
from utils.OPMysql import OPMysql
from utils.easylogger import getEasyLogger
from utils.toolutils import ToolsUtils
import os
from concurrent.futures import ThreadPoolExecutor, wait
logger = getEasyLogger(targetName='MockTask')


class MockTask(Task):
    """
    Mock任务
    """
    name = 'mock-work-task'

    def run(self, *args, **kwargs):
        """
        异步任务
        :param order_no:
        :param env:
        :return:
        """
        kwargs['db'] = OPMysql(kwargs['mockEnv'])
        kwargs['tools'] = ToolsUtils()

        records = PaymentMockTask.objects.filter(task_no=kwargs['taskNo'])
        record = records[0]

        errorStatus = self._createOrderThreadPoolExecutor(kwargs['uploadPath'], kwargs['resPath'], kwargs['mockType'],
                                                          kwargs['db'], kwargs['tools']
                                                          )

        if errorStatus:
            record.mock_status = 2
            record.save()
        else:
            record.mock_status = 3
            record.save()

    def _createOrderThreadPoolExecutor(self, uploadPath, resPath, mockType, db, tools):
        """
        创建线程池
        :return:
        """
        allTask = []
        errorStatus = True
        with ThreadPoolExecutor(max_workers=5) as executor:
            with open(os.path.join(BASE_DIR, "resource", uploadPath), "r", encoding="utf8") as fr:
                with open(os.path.join(BASE_DIR, "resource", resPath), "a", encoding="utf8") as fw:
                    fw.seek(0)
                    fw.truncate()
                    self._preconditionMock(mockType, fw)
                    for line in fr:
                        oneTask = self._startMockTask(line, executor, mockType, fw, db, tools)
                        if oneTask.exception():
                            print("{}".format(oneTask.exception()))
                            errorStatus = False
                            break
                        allTask.append(oneTask)

                    wait(allTask)
        db.release_conn()
        return errorStatus

    def _startMockTask(self, line, executor, mockType, fw, db, tools):
        """
        开始mock任务
        :return:
        """
        jsonline = ToolsUtils.fileJsonFromt(line)
        small_task = executor.submit(self._runMcckTask, jsonData=jsonline, mockType=mockType, fw=fw,
                                     db=db, tools=tools)

        return small_task

    def _runMcckTask(self, jsonData, mockType, fw, db, tools):
        """
        执行mock任务
        :param orderDataList, mockType, fw:
        :return:
        """
        mockOrder = MockOrder()
        mockReconFile = MockReconFile()
        switcher = {"MOCK_UNI": mockOrder.mcokV2Order, "MOCK_V1_AGREE": mockOrder.mcokV2Order,
                    "MOCK_V1_PAY": mockOrder.mcokV2Order, "MOCK_REMIT": mockOrder.mockV1Order,
                    "MOCK_REFUND": mockOrder.mockRefundOrder, "MOCK_PAYREMIT": mockOrder.mockPayRemitOrder,
                    "MOCK_RECON_PAYREMIT_SHARELINK_FILE": mockReconFile.mcokShareLinkPayRemitFile}
        mockres = switcher.get(mockType)(jsonData, db, tools)
        fw.write(str(mockres))
        fw.write("\n")

效果

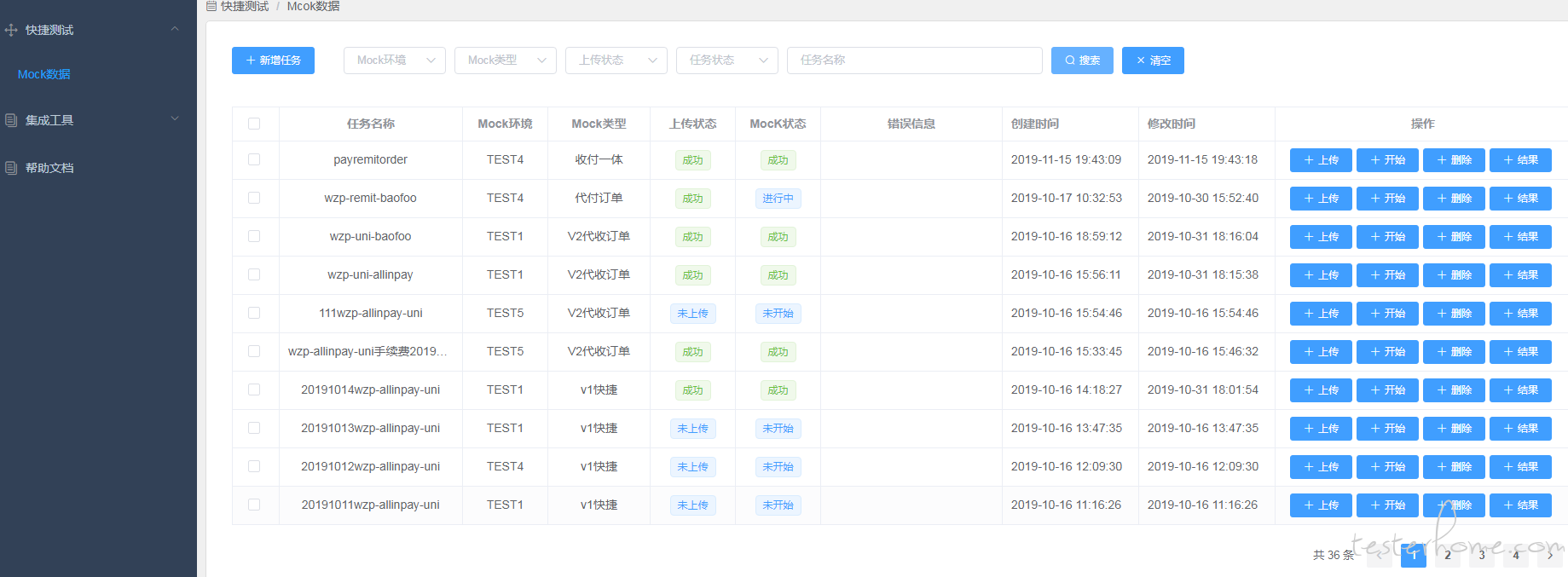

主界面

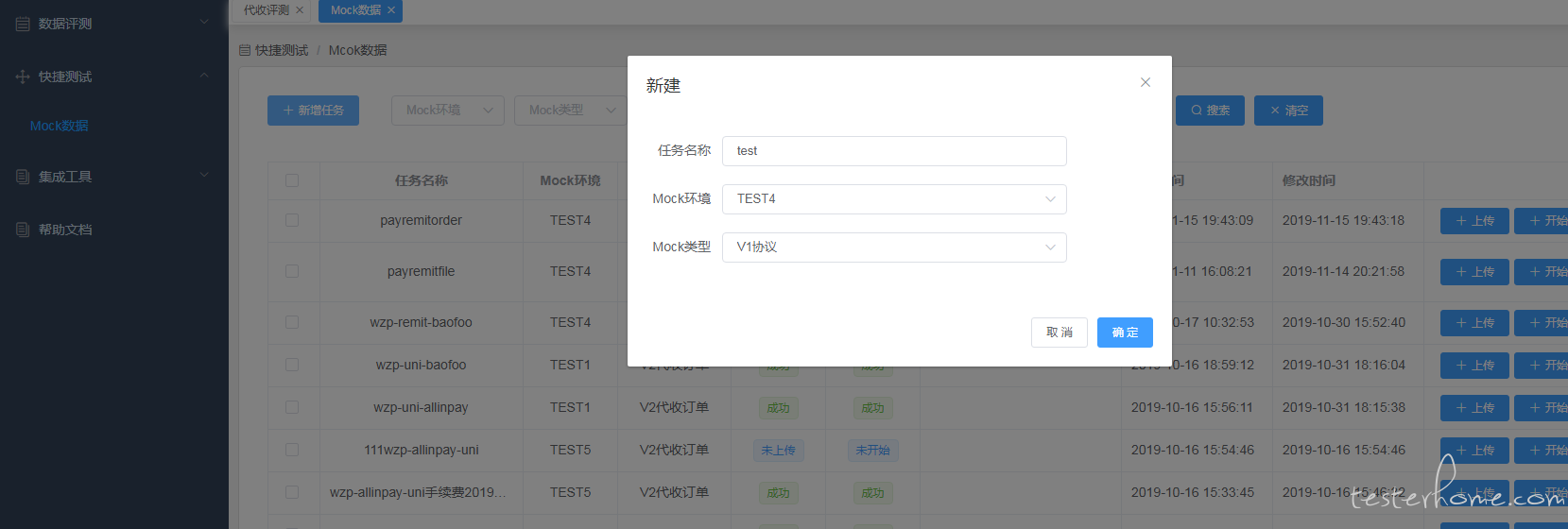

创建 mock 任务

mock 文件格式（mock 不同业务流不同文件格式）

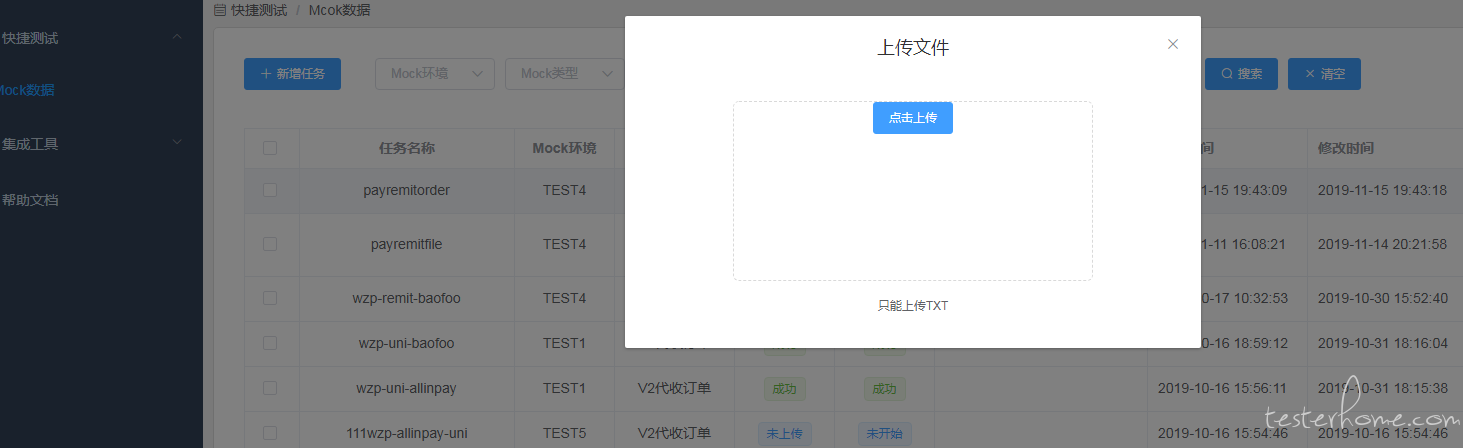

上传 mock 文件

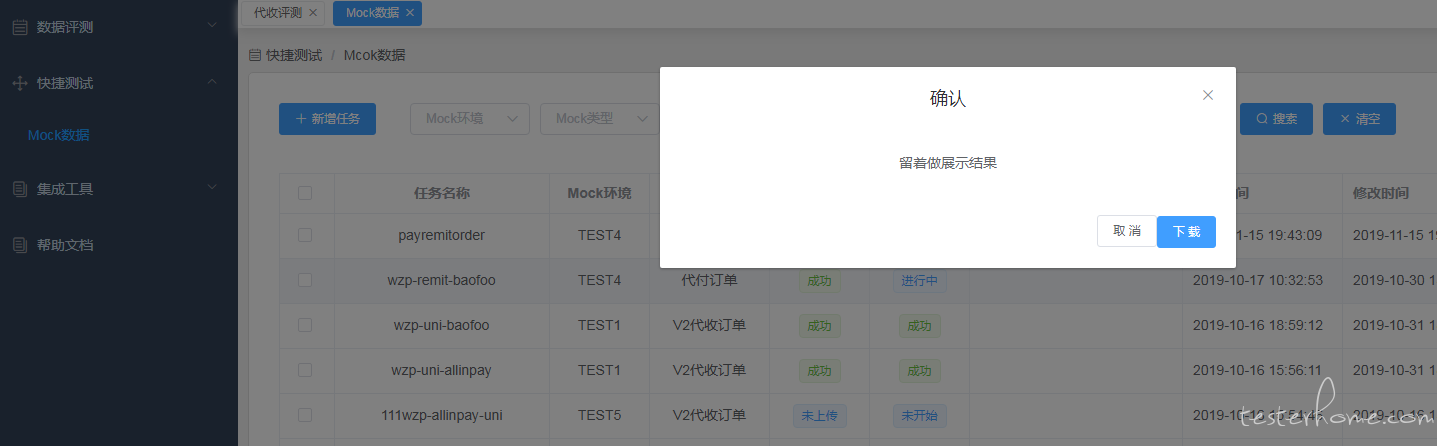

下载 mock 结果（结果包含关键信息便于在业务系统里面找数据，文件格式和上传 mock 文件类似，都是 json）

总结
