通用技术 基于 spring boot 搭建 REST 服务

carl · 2017年11月01日 · 最后由 zher 回复于 2017年11月03日 · 548 次阅读

开发环境搭建

  1. java8 install and env set up
  2. mvn set up
  3. intellij idea set up
  4. lombok plugin install

阅读基础

  1. 掌握java
  2. 了解常用的设计模式
  3. 了解spring,mybatis
  4. 了解maven知识
  5. 了解RESTful知识

基于的服务

  1. spring boot
  2. mybatis
  3. swagger2
  4. lombok

pom配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>

<groupId>com.carl</groupId>
<artifactId>mobile-test-service</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>jar</packaging>

<name>mobile-test-service</name>
<description>Mobile Test Service</description>

<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>1.5.8.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>

<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
</properties>

<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-actuator-docs</artifactId>
</dependency>
<!--<dependency>-->
<!--<groupId>org.springframework.boot</groupId>-->
<!--<artifactId>spring-boot-starter-data-mongodb</artifactId>-->
<!--</dependency>-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jooq</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-mail</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>1.3.1</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>

<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.16.18</version>
<scope>provided</scope>
</dependency>

<dependency>
<groupId>com.oracle</groupId>
<artifactId>ojdbc6</artifactId>
<version>6.0</version>
</dependency>

<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.7.0</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.7.0</version>
</dependency>

</dependencies>

<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>

说明一下,这里的orcale的jar包是我通过mvn install的方法单独放到我本地的仓库中去的

mvn install:install-file -Dfile=C:/ojdbc6.jar -DgroupId=com.oracle -DartifactId=ojdbc6 -Dversion=6.0 -Dpackaging=jar -DgeneratePom=true

application.properties

### Database for Oracle ###
spring.datasource.url=jdbc:oracle:thin:@192.168.2.7:1521:orcl
spring.datasource.username=zyolap
spring.datasource.password=zyolap123
spring.datasource.driver-class-name=oracle.jdbc.OracleDriver

### Mybatis ###
#显示执行的SQL命令
logging.level.com.carl.mobiletestservice=DEBUG

源码

入口类

package com.carl.mobiletestservice;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan("com.carl.mobiletestservice.mapper")
public class MobileTestServiceApplication {

public static void main(String[] args) {
SpringApplication.run(MobileTestServiceApplication.class, args);
}
}

bean

package com.carl.mobiletestservice.beans;

import lombok.Data;

@Data
public class Event {
private String eventid;
}

mapper

package com.carl.mobiletestservice.mapper;

import com.carl.mobiletestservice.beans.Event;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;
import org.springframework.stereotype.Component;

@Component(value = "eventMapper")
public interface EventMapper {

@Select("SELECT * FROM dw_event_fact_c where rownum = 1")
Event getOne();

@Select("SELECT * FROM dw_event_fact_c where ${key} = '" + "${value}' AND rownum = 1")
Event getOneByKeyValue(@Param("key") String key, @Param("value") String value);
}

controller

package com.carl.mobiletestservice.controller;

import com.carl.mobiletestservice.beans.Event;
import com.carl.mobiletestservice.mapper.EventMapper;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping(value = "event")
@Slf4j
public class EventController {

@Autowired
private EventMapper eventMapper;

@ApiOperation(value = "获取最新的一条记录")
@RequestMapping(value = "/", method = RequestMethod.GET)
public Event getEvent() {
log.debug("getEvent:" + eventMapper.getOne().toString());
return eventMapper.getOne();
}

@ApiOperation(value = "根据key和value获取最新的一条记录")
@RequestMapping(value = "/key/{key}/value/{value}", method = RequestMethod.GET)
public Event getEvent(@PathVariable String key, @PathVariable String value) {
log.debug("getEvent:" + eventMapper.getOneByKeyValue(key, value).toString());
return eventMapper.getOneByKeyValue(key, value);
}
}

swagger

package com.carl.mobiletestservice;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2 {

@Bean
public Docket createRestApi() {
return new Docket(DocumentationType.SWAGGER_2)
.apiInfo(apiInfo())
.select()
.apis(RequestHandlerSelectors.basePackage("com.carl.mobiletestservice.controller"))
.paths(PathSelectors.any())
.build();
}

private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title("Spring Boot中使用Swagger2构建RESTful APIs")
.description("移动端测试服务")
.contact(new Contact("clark", "https://testerhome.com/carl", "bauul@126.com"))
.version("1.0")
.build();
}

}

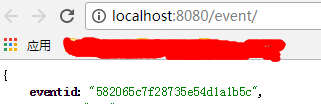

URL访问

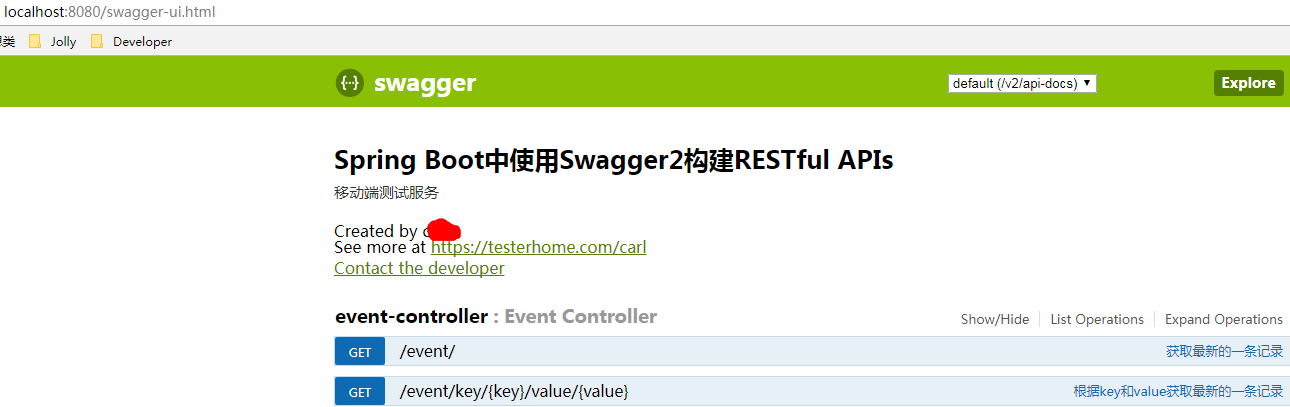

Swagger2访问

打包发布

mvn package

jar包运行

java -jar ***.jar
