HTMLTestRunner_Chart 基于 unittest 的测试报告,使用详情见 demo

GitHub: https://github.com/githublitao/HTMLTestRunner_Chart 欢迎 star
参考链接:
http://tungwaiyip.info/software/HTMLTestRunner.html
https://github.com/GoverSky/HTMLTestRunner_cn

优化报告内容

  1. 测试报告中文显示,优化一些断言失败正文乱码问题
  2. 新增错误和失败截图,展示到 html 报告里
  3. 增加饼图统计
  4. 失败后重试功能
  5. 保存近 10 次测试结果,并通过柱状图展示
  6. 切换测试日期,展示历史测试结果
  7. 兼容 python2.x 和 3.x

注意:

  1. 在是 python3.x 中,如果在这里 setUp 里初始化 driver ,因为 3.x 版本 unittest 运行机制不同,会导致用力失败时截图失败,目前只有采用捕获异常来截图,或者在 setUpClass 里初始化 driver
  2. driver 初始化变量名必须命名为 driver

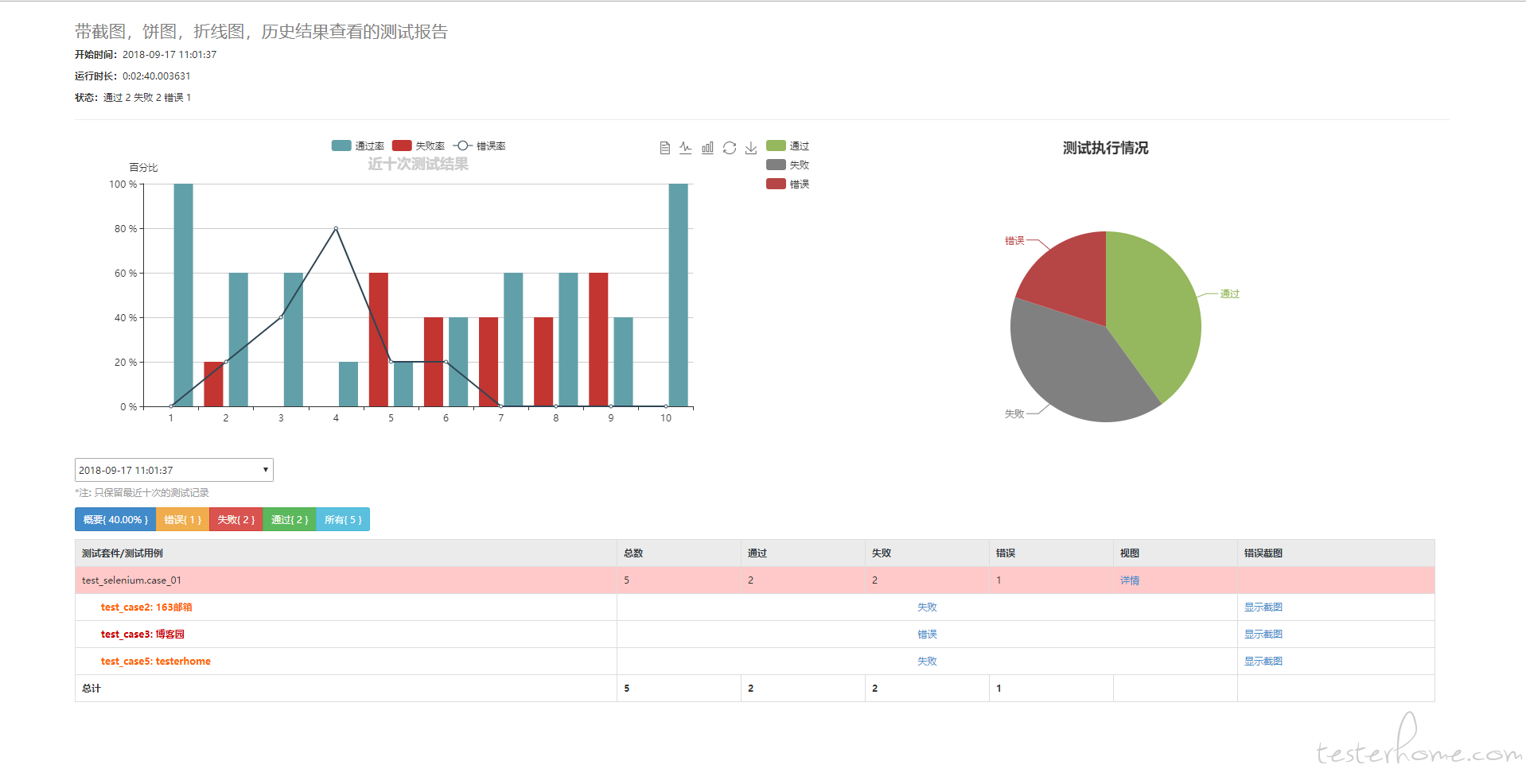

报告首页:

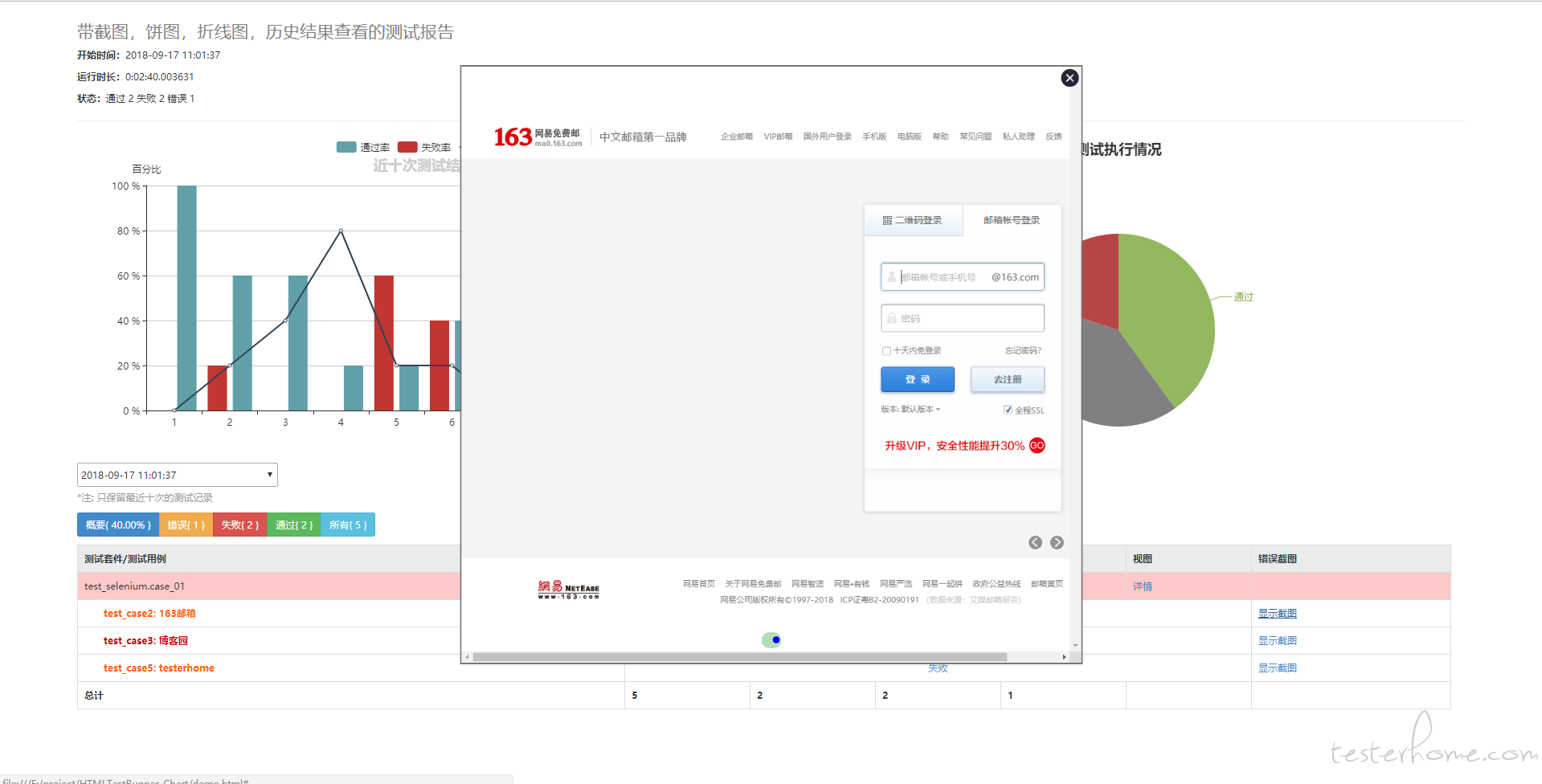

用例截图:

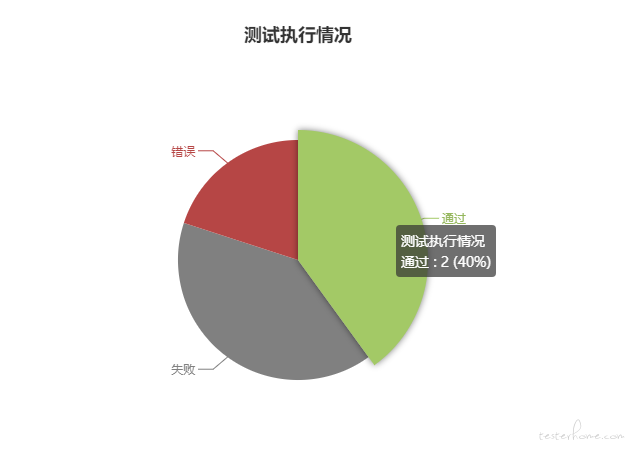

失败饼图:

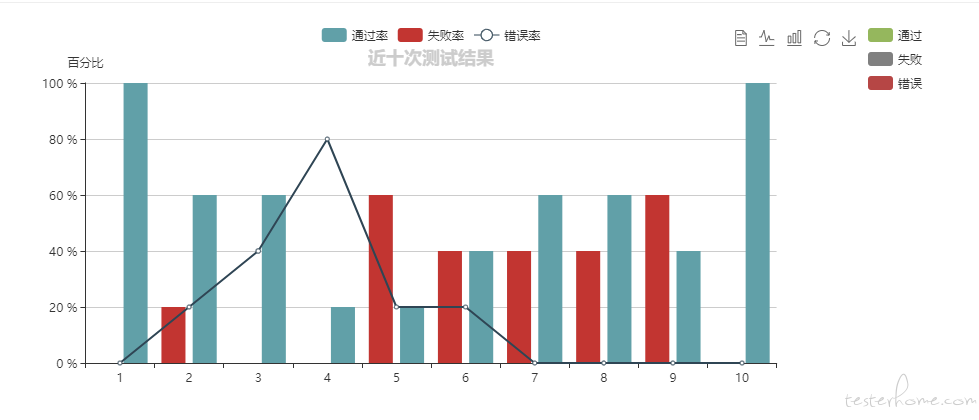

历史走势:

失败重试:

  1. 生成报告的参数里面加了一个参数 retry=1,这个表示用例失败后,会重新跑一次。

    if __name__ == '__main__':
    suite = unittest.TestLoader().loadTestsFromTestCase(case_01)
    runner = HTMLTestRunner(
        title="带截图,饼图,折线图,历史结果查看的测试报告",
        description="",
        stream=open("./demo.html", "wb"),
        verbosity=2,
        retry=0,
        save_last_try=True)
    runner.run(suite)


    保存测试结果到 json 文件:

    def mkdir_json(self):
        is_exists = os.path.exists(self.path)
        # 判断结果
        if not is_exists:
            try:
                # 如果不存在则创建目录
                # 创建目录操作函数
                with open(self.path, "w+") as f:
                    f.write("var data = []")
                return True
            except Exception as e:
                print(e)
                return False
        else:
            return True

    def Write(self, title, heading, desc, data):
        try:
            with open(self.path, "r+") as f:
                all_data = f.read().split(" = ", 1)
                data_json = all_data[1]
                data_json = eval(data_json)
                if len(data_json) >= 10:
                    del data_json[0]
                description = dict()
                description["startTime"] = heading[0][1]
                description["duration"] = heading[1][1]
                if PY3K:
                    description["title"] = title
                    description["status"] = heading[2][1]
                    description["desc"] = desc
                    description["data"] = data
                    status = heading[2][1].split(" ")
                    for j in range(0, len(status)):
                        if status[j] == "通过":
                            description["success"] = str(status[j + 1])
                        if status[j] == "失败":
                            description["fail"] = str(status[j + 1])
                        if status[j] == "错误":
                            description["error"] = str(status[j + 1])
                else:
                    description["title"] = title.encode("gbk")
                    description["status"] = heading[2][1].encode("gbk")
                    description["desc"] = desc.encode("gbk")
                    description["data"] = data.encode("gbk")
                    status = heading[2][1].split(" ")
                    for j in range(0, len(status)):
                        if status[j] == u"通过":
                            description["success"] = str(status[j + 1])
                        if status[j] == u"失败":
                            description["fail"] = str(status[j + 1])
                        if status[j] == u"错误":
                            description["error"] = str(status[j + 1])
                data_json.append(description)
                data_json = str(data_json)
                f.seek(0)
                f.truncate()
                f.write(str("var data = " + data_json))
        except IndexError:
            sys.stderr.write("JSON初始化内容有误! 初始化内容’var data = []‘")


    错误/失败截图,修改 addError 和 addFail 函数:

    def addFailure(self, test, err):
        self.failure_count += 1
        self.status = 1
        TestResult.addFailure(self, test, err)
        _, _exc_str = self.failures[-1]
        output = self.complete_output()
        self.result.append((1, test, output, _exc_str))
        if not getattr(test, "driver",""):
            pass
        else:
            try:
                driver = getattr(test, "driver")
                test.imgs.append(driver.get_screenshot_as_base64())
            except Exception as e:
                pass
        if self.verbosity > 1:
            sys.stderr.write('F  ')
            sys.stderr.write(str(test))
            sys.stderr.write('\n')
        else:
            sys.stderr.write('F')


    错误重试,修改 stopTest 函数:

    def stopTest(self, test):
       # Usually one of addSuccess, addError or addFailure would have been called.
       # But there are some path in unittest that would bypass this.
       # We must disconnect stdout in stopTest(), which is guaranteed to be called.
       if self.retry:
           if self.status == 1:
               self.trys += 1
               if self.trys <= self.retry:
                   if self.save_last_try:
                       t = self.result.pop(-1)
                       if t[0]==1:
                           self.failure_count-=1
                       else:
                           self.error_count -= 1
                   test=copy.copy(test)
                   sys.stderr.write("Retesting... ")
                   sys.stderr.write(str(test))
                   sys.stderr.write('..%d \n' % self.trys)
                   doc = test._testMethodDoc or ''
                   if doc.find('_retry')!=-1:
                       doc = doc[:doc.find('_retry')]
                   desc ="%s_retry:%d" %(doc, self.trys)
                   if not PY3K:
                       if isinstance(desc, str):
                           desc = desc.decode("utf-8")
                   test._testMethodDoc = desc
                   test(self)
               else:
                   self.status = 0
                   self.trys = 0
       self.complete_output()


    HTML 模板导入 JSON 历史结果,如果 JSON 出现错误,则历史结果和走势图错误:

    <head>
    <title>%(title)s</title>
    <meta name="generator" content="%(generator)s"/>
    <meta http-equiv="Content-Type" content="text/html;charset=utf-8"/>
    <script type="text/javascript" src="%(jsonpath)s" charset="gbk"></script>
    <link href="http://cdn.bootcss.com/bootstrap/3.3.0/css/bootstrap.min.css" rel="stylesheet">
    <script src="https://cdn.bootcss.com/echarts/3.8.5/echarts.common.min.js"></script>
    <!-- <script type="text/javascript" src="js/echarts.common.min.js"></script> -->

    %(stylesheet)s
