环境版本:

STF jenkins 都在 ubuntu 16.04 ; 插件的版本是 1.0.7

步骤描述:

在使用 jenkins 的 STF 的插件时,按照步骤设置了 stf 的地址,token。
在新建的自由项目中,选择"构建环境'中,选择 "Use a STF device during build",出现了 STF 中的机器列表,在点击 “保存” 后,jenkins 出现崩溃。

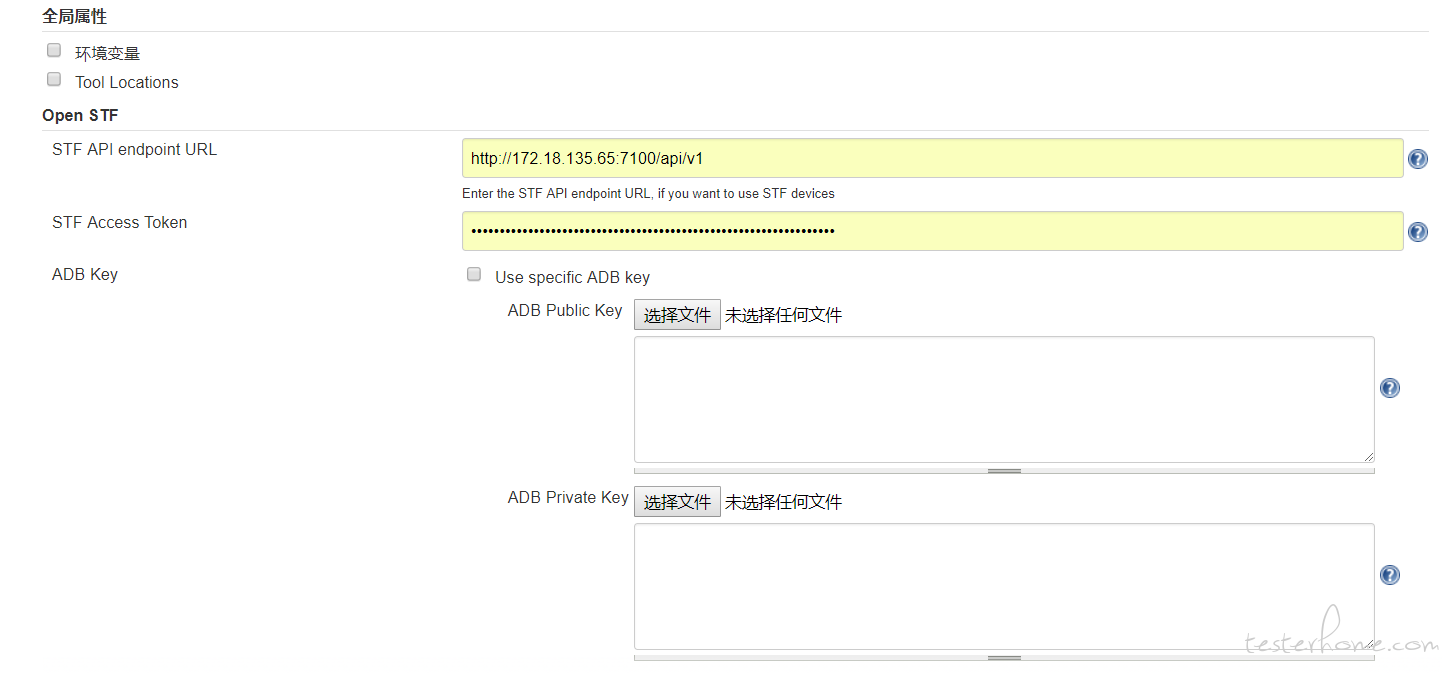

jenkins 中关于 STF 的设置界面:

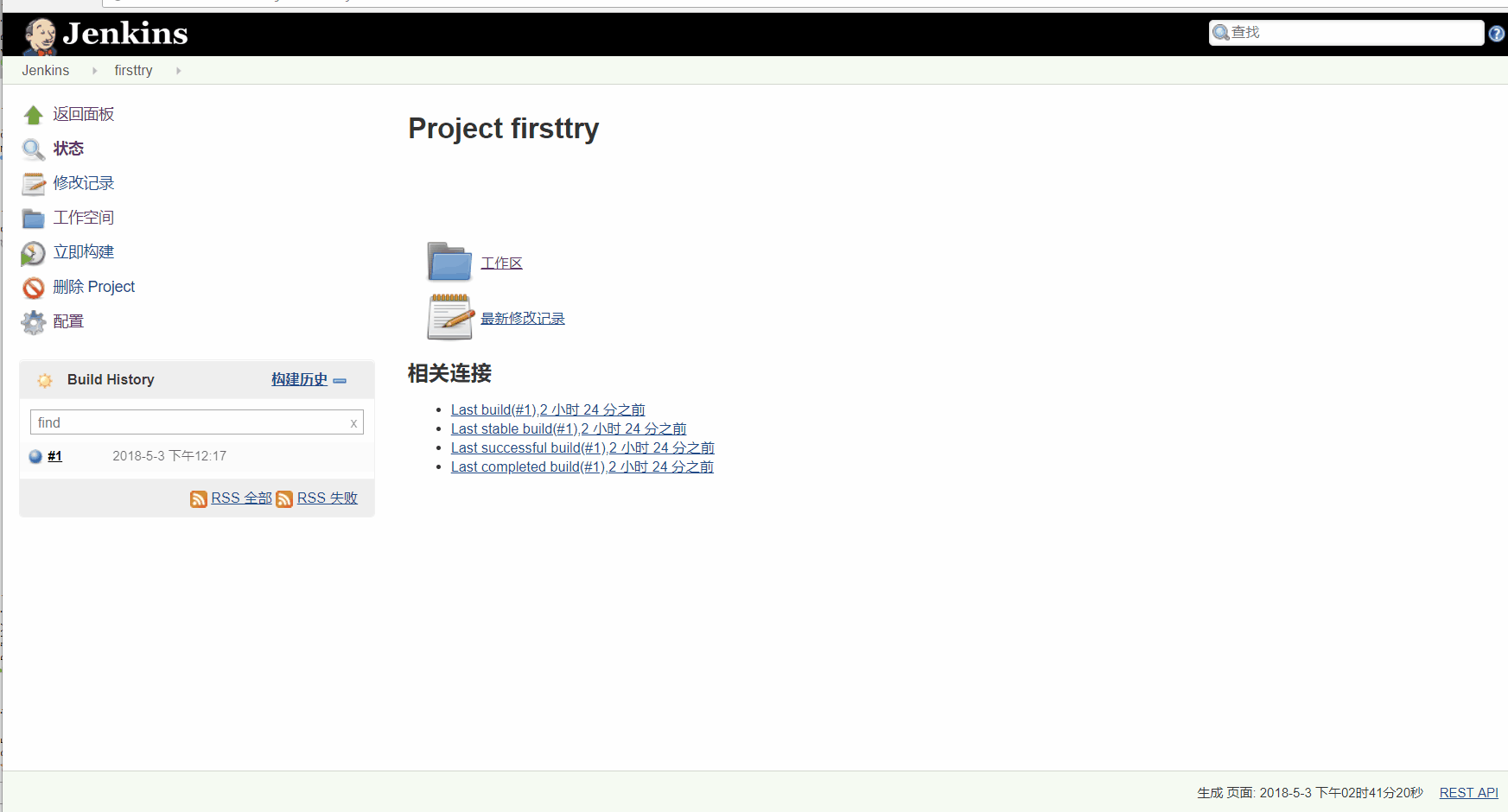

详细的动图流程:

报错堆栈:

java.lang.UnsupportedOperationException: Refusing to marshal net.sf.json.JSONObject for security reasons; see https://jenkins.io/redirect/class-filter/
    at hudson.util.XStream2$BlacklistedTypesConverter.marshal(XStream2.java:543)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller.convert(AbstractReferenceMarshaller.java:69)
    at com.thoughtworks.xstream.core.TreeMarshaller.convertAnother(TreeMarshaller.java:58)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller$1.convertAnother(AbstractReferenceMarshaller.java:84)
    at hudson.util.RobustReflectionConverter.marshallField(RobustReflectionConverter.java:265)
    at hudson.util.RobustReflectionConverter$2.writeField(RobustReflectionConverter.java:252)
Caused: java.lang.RuntimeException: Failed to serialize hudson.plugins.openstf.STFBuildWrapper#deviceCondition for class hudson.plugins.openstf.STFBuildWrapper
    at hudson.util.RobustReflectionConverter$2.writeField(RobustReflectionConverter.java:256)
    at hudson.util.RobustReflectionConverter$2.visit(RobustReflectionConverter.java:224)
    at com.thoughtworks.xstream.converters.reflection.PureJavaReflectionProvider.visitSerializableFields(PureJavaReflectionProvider.java:138)
    at hudson.util.RobustReflectionConverter.doMarshal(RobustReflectionConverter.java:209)
    at hudson.util.RobustReflectionConverter.marshal(RobustReflectionConverter.java:150)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller.convert(AbstractReferenceMarshaller.java:69)
    at com.thoughtworks.xstream.core.TreeMarshaller.convertAnother(TreeMarshaller.java:58)
    at com.thoughtworks.xstream.core.TreeMarshaller.convertAnother(TreeMarshaller.java:43)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller$1.convertAnother(AbstractReferenceMarshaller.java:88)
    at com.thoughtworks.xstream.converters.collections.AbstractCollectionConverter.writeItem(AbstractCollectionConverter.java:64)
    at hudson.util.DescribableList$ConverterImpl.marshal(DescribableList.java:269)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller.convert(AbstractReferenceMarshaller.java:69)
    at com.thoughtworks.xstream.core.TreeMarshaller.convertAnother(TreeMarshaller.java:58)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller$1.convertAnother(AbstractReferenceMarshaller.java:84)
    at hudson.util.RobustReflectionConverter.marshallField(RobustReflectionConverter.java:265)
    at hudson.util.RobustReflectionConverter$2.writeField(RobustReflectionConverter.java:252)
Caused: java.lang.RuntimeException: Failed to serialize hudson.model.Project#buildWrappers for class hudson.model.FreeStyleProject
    at hudson.util.RobustReflectionConverter$2.writeField(RobustReflectionConverter.java:256)
    at hudson.util.RobustReflectionConverter$2.visit(RobustReflectionConverter.java:224)
    at com.thoughtworks.xstream.converters.reflection.PureJavaReflectionProvider.visitSerializableFields(PureJavaReflectionProvider.java:138)
    at hudson.util.RobustReflectionConverter.doMarshal(RobustReflectionConverter.java:209)
    at hudson.util.RobustReflectionConverter.marshal(RobustReflectionConverter.java:150)
    at com.thoughtworks.xstream.core.AbstractReferenceMarshaller.convert(AbstractReferenceMarshaller.java:69)
    at com.thoughtworks.xstream.core.TreeMarshaller.convertAnother(TreeMarshaller.java:58)
    at com.thoughtworks.xstream.core.TreeMarshaller.convertAnother(TreeMarshaller.java:43)
    at com.thoughtworks.xstream.core.TreeMarshaller.start(TreeMarshaller.java:82)
    at com.thoughtworks.xstream.core.AbstractTreeMarshallingStrategy.marshal(AbstractTreeMarshallingStrategy.java:37)
    at com.thoughtworks.xstream.XStream.marshal(XStream.java:1026)
    at com.thoughtworks.xstream.XStream.marshal(XStream.java:1015)
    at com.thoughtworks.xstream.XStream.toXML(XStream.java:988)
    at hudson.XmlFile.write(XmlFile.java:193)
Caused: java.io.IOException
    at hudson.XmlFile.write(XmlFile.java:200)
    at hudson.model.AbstractItem.save(AbstractItem.java:483)
    at hudson.model.Job.save(Job.java:196)
    at hudson.model.AbstractProject.save(AbstractProject.java:289)
    at hudson.BulkChange.commit(BulkChange.java:98)
    at hudson.model.Job.doConfigSubmit(Job.java:1355)
    at hudson.model.AbstractProject.doConfigSubmit(AbstractProject.java:772)
    at java.lang.invoke.MethodHandle.invokeWithArguments(MethodHandle.java:627)
    at org.kohsuke.stapler.Function$MethodFunction.invoke(Function.java:343)
    at org.kohsuke.stapler.interceptor.RequirePOST$Processor.invoke(RequirePOST.java:77)
    at org.kohsuke.stapler.PreInvokeInterceptedFunction.invoke(PreInvokeInterceptedFunction.java:26)
    at org.kohsuke.stapler.Function.bindAndInvoke(Function.java:184)
    at org.kohsuke.stapler.Function.bindAndInvokeAndServeResponse(Function.java:117)
    at org.kohsuke.stapler.MetaClass$1.doDispatch(MetaClass.java:129)
    at org.kohsuke.stapler.NameBasedDispatcher.dispatch(NameBasedDispatcher.java:58)
    at org.kohsuke.stapler.Stapler.tryInvoke(Stapler.java:715)
    at org.kohsuke.stapler.Stapler.invoke(Stapler.java:845)
    at org.kohsuke.stapler.MetaClass$5.doDispatch(MetaClass.java:248)
    at org.kohsuke.stapler.NameBasedDispatcher.dispatch(NameBasedDispatcher.java:58)
    at org.kohsuke.stapler.Stapler.tryInvoke(Stapler.java:715)
    at org.kohsuke.stapler.Stapler.invoke(Stapler.java:845)
    at org.kohsuke.stapler.Stapler.invoke(Stapler.java:649)
    at org.kohsuke.stapler.Stapler.service(Stapler.java:238)
    at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)
    at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:841)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1650)
    at hudson.util.PluginServletFilter$1.doFilter(PluginServletFilter.java:154)
    at hudson.util.PluginServletFilter.doFilter(PluginServletFilter.java:157)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1637)
    at hudson.security.csrf.CrumbFilter.doFilter(CrumbFilter.java:99)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1637)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:84)
    at hudson.security.UnwrapSecurityExceptionFilter.doFilter(UnwrapSecurityExceptionFilter.java:51)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at jenkins.security.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:117)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at org.acegisecurity.providers.anonymous.AnonymousProcessingFilter.doFilter(AnonymousProcessingFilter.java:125)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at org.acegisecurity.ui.rememberme.RememberMeProcessingFilter.doFilter(RememberMeProcessingFilter.java:142)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at org.acegisecurity.ui.AbstractProcessingFilter.doFilter(AbstractProcessingFilter.java:271)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at jenkins.security.BasicHeaderProcessor.doFilter(BasicHeaderProcessor.java:93)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at org.acegisecurity.context.HttpSessionContextIntegrationFilter.doFilter(HttpSessionContextIntegrationFilter.java:249)
    at hudson.security.HttpSessionContextIntegrationFilter2.doFilter(HttpSessionContextIntegrationFilter2.java:67)
    at hudson.security.ChainedServletFilter$1.doFilter(ChainedServletFilter.java:87)
    at hudson.security.ChainedServletFilter.doFilter(ChainedServletFilter.java:90)
    at hudson.security.HudsonFilter.doFilter(HudsonFilter.java:171)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1637)
    at org.kohsuke.stapler.compression.CompressionFilter.doFilter(CompressionFilter.java:49)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1637)
    at hudson.util.CharacterEncodingFilter.doFilter(CharacterEncodingFilter.java:82)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1637)
    at org.kohsuke.stapler.DiagnosticThreadNameFilter.doFilter(DiagnosticThreadNameFilter.java:30)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1637)
    at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:533)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:143)
    at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:524)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:190)
    at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:1595)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:188)
    at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1253)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:168)
    at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:473)
    at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:1564)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:166)
    at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1155)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
    at org.eclipse.jetty.server.Server.handle(Server.java:564)
    at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:317)
    at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:251)
    at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:279)
    at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:110)
    at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:124)
    at org.eclipse.jetty.util.thread.Invocable.invokePreferred(Invocable.java:128)
    at org.eclipse.jetty.util.thread.Invocable$InvocableExecutor.invoke(Invocable.java:222)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.doProduce(EatWhatYouKill.java:294)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:199)
    at winstone.BoundedExecutorService$1.run(BoundedExecutorService.java:77)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)

谁有做过类似的操作,帮忙看下。❤
